23154 HELUKABEL

Details

23154
  • 23154

Manufacturer product page HELUKABEL

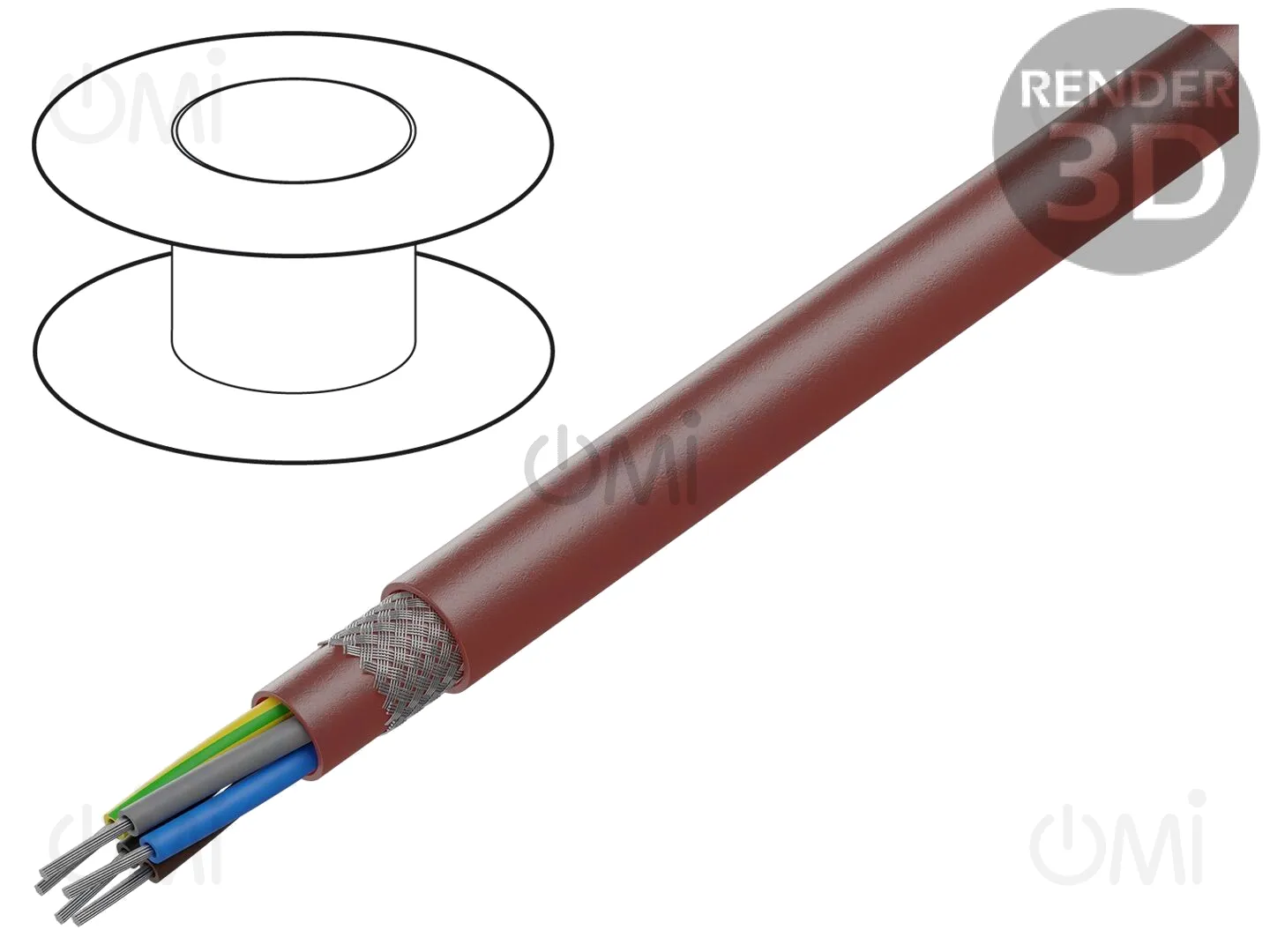

Wire; SiHF-C-Si; 5G0.5mm2; Cu; stranded; silicone; brown-red

Manufacturer code: 23154

OMI code: 2882

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

22 m

Qty.
[m] 		Price
[EUR/m]
1+ 7.64

Price details
23154

Qty.
[m] 		Price
[EUR/m]
1+ 7.64

Quantity m (multiplicity: 5)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
HELUKABEL
Operating temperature
60...180°C
Wire insulation material
silicone
Type of wire
control cable
Number of cores
5
Resistance to
most of oils, water, to weather conditions, vibration
Insulation colour
brown-red
Kind of material
no flame propagation
Kind of wire
SiHF-C-Si
Kind of core
Cu, tinned
Core section
0.5mm<sup>2</sup>
Cable external diameter
9.9mm
Shield structure
tinned copper braid, shielded
Rated voltage
500V, 300V
Core marking
colours without colour repetition + ground wire
Core structure
stranded
Earth core
yellow-green
CPR standard
no classification
Cable structure
5G0.5mm<sup>2</sup>
Flexibility class
5
Gross weight 153.00 g
Documentation in English #1 Documentation in English #2

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Silicone Cables - Multicore

* All prices are net prices (excluding VAT) and do not include transportation costs, which will be included in the order amount. Transportation costs are available in the tab "Method and cost of delivery"

Last viewed items

23154

23154

Manufacturer: HELUKABEL

Wire; SiHF-C-Si; 5G0.5mm2; Cu; stranded; silicone; brown-red

In stock:

22 m

Price details
23154

Qty.
[m] 		Price
[EUR/m]
1+ 7.64
HAGBI

HAGBI

Manufacturer: VENTION

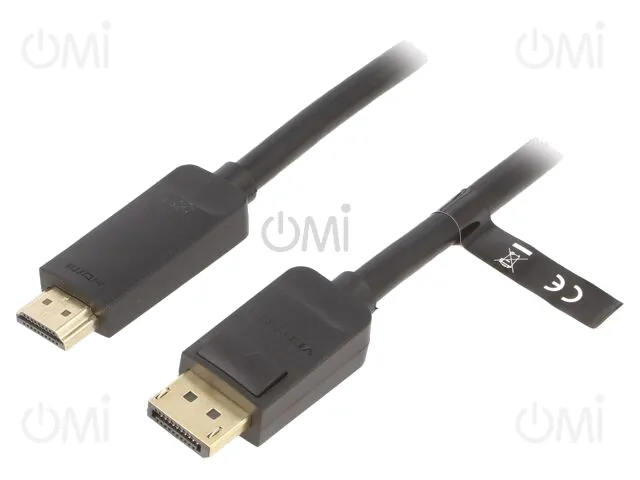

Cable; DisplayPort plug,HDMI plug; Len: 3m; black; 30AWG
