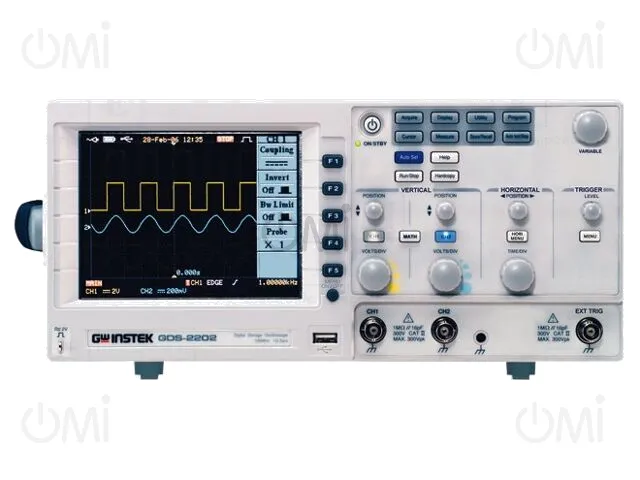

GDS-2202A GW INSTEK

Details

GDS-2202A
  • GDS-2202A

Manufacturer product page GW INSTEK

Oscilloscope: digital; DSO; Ch: 2; 200MHz; 2Mpts; LCD 8"; ≤1.7ns

Manufacturer code: GDS-2202A

OMI code: 3321

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

0 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 2336.3

Price details
GDS-2202A

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 2336.3

This product is currently out of stock. You can enable notification of new arrivals of this product. To do this, click on the "Notify" button and fill out the form.

Specification

Show similar products –
Show similar products –
Manufacturer
GW INSTEK
Supply voltage
100...240V AC
Related items
DS2-8LA
Dimensions
380x220x145mm
Interface
USB, RS232, Ethernet (option), IEEE-488 (option)
Number of channels
2
Kind of display used
LCD 8"
Kind of output connector
RJ45 socket, USB A socket, GPIB socket, USB B socket, D-Sub female socket, D-Sub male socket
Standard equipment
mains cable, oscilloscope probe with 1:1/10:1 divider
Measuring instrument features
automatic measurement of many parameters, AUTOSET function for setting display parameters (time base, gain), 20 sets memory, mathematical functions: addition, subtraction, division, multiplication and FFT, X-Y, ROLL operation mode
Input impedance
1MΩ/16pF
Measurement memory
24
Plug variant
EU
Software
included
Sampling
2Gsps (in real time), 100Gsps (in equivalent time)
Band
200MHz
Trigger
rising-edge, falling-edge, impulse width, alternative
Type of oscilloscope
digital
Input coupling
AC, DC, GND
Vertical resolution
8bit
Trigger modes
automatic, normal, single
Trigger coupling
AC, DC, highpass, lowpass
Max. input voltage
300V
Rise time
≤1.7ns
Input sensitivity
1mV/div...10V/div
Time base
1n...100s/div
Memory record length
2Mpts
Kind of oscilloscope
DSO
Gross weight 6950.00 g
Documentation in English #1 Documentation in English #2 Documentation in English #3 Documentation in English #4 Documentation in English #5

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Digital Oscilloscopes
