F205 CHAUVIN ARNOUX

Details

F205
  • F205

Manufacturer product page CHAUVIN ARNOUX

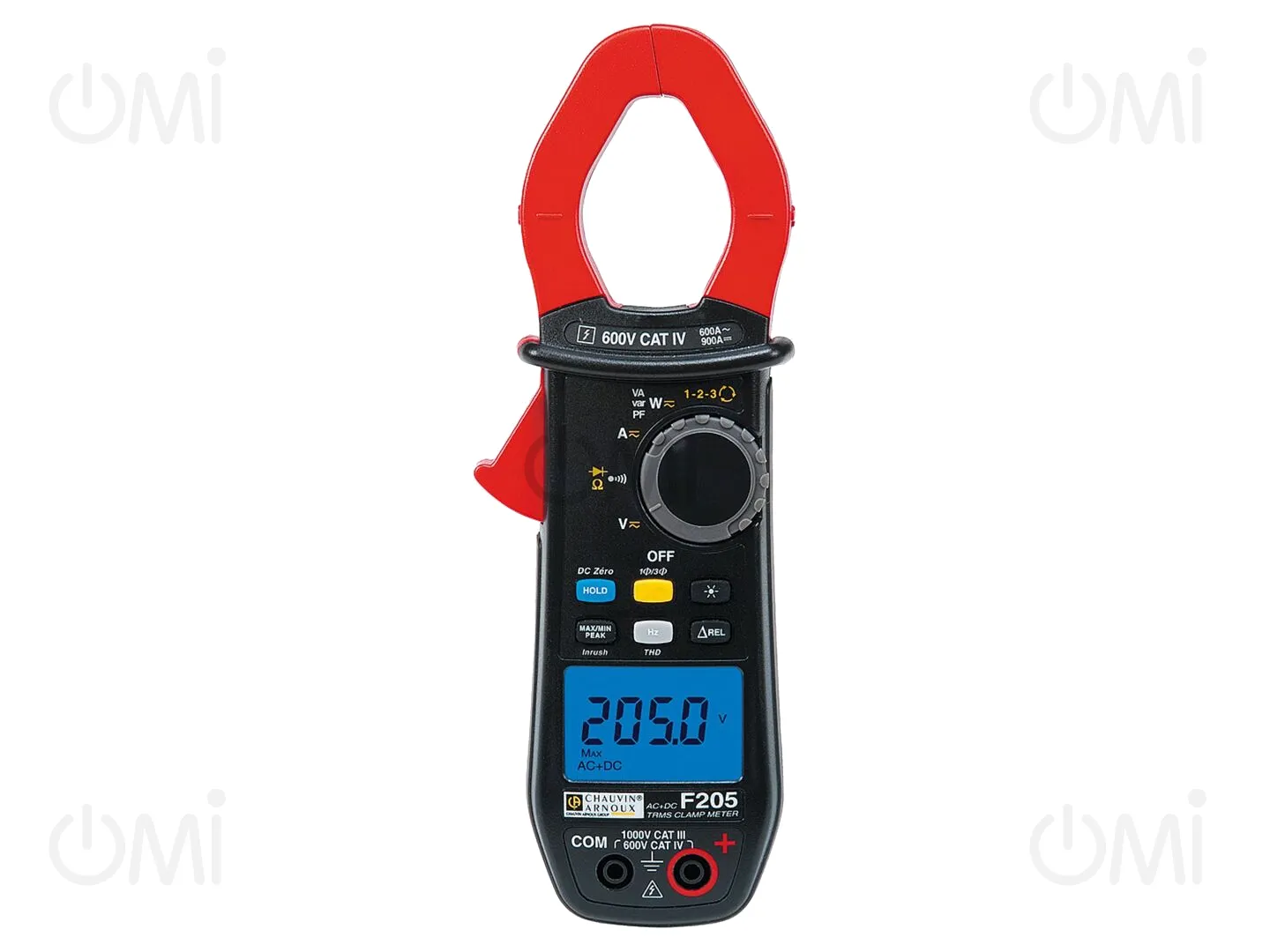

Meter: multifunction; digital,pincers type; Øcable: 34mm; LCD

Manufacturer code: F205

OMI code: 100865

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

0 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 430.14
3+ 417.76

Price details
F205

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 430.14
3+ 417.76

This product is currently out of stock. You can enable notification of new arrivals of this product. To do this, click on the "Notify" button and fill out the form.

Specification

Show similar products –
Show similar products –
Manufacturer
CHAUVIN ARNOUX
Conform to the norm
EN 61010, CAT IV 600V, EN 61243-3:2010
Dimensions
78x222x42mm
Kind of display used
LCD
Illumination
yes
Power supply
battery 6LF22 9V x1
Standard equipment
test leads, case, test probes, aligator clip x1
Measuring instrument features
automatic power-off, low battery indicator, MIN/MAX function, indicates phase sequence, HOLD function, REL function, harmonics analyser, PEAK function, True InRush function, selection of AC or AC+DC measurement
Display parameters
(5999)
Type of meter
multifunction
True effective value measurement
True RMS
Measurement
AC current, DC current, DC voltage, resistance, AC voltage, active power, apparent power, frequency, harmonics, inrush current, reactive power, phase sequence
Battery/ rechargeable battery
battery 6LF22 9V x1
Kind of meter
digital, pincers type
AC current measuring range
150mA...600A
Continuity test
acoustic indication, 1Ω...599Ω
Frequency measuring range
5...20kHz
Test
diodes
Resistance measuring range
0.1...59.99kΩ
DC current measuring range
150mA...900A
Max. diameter of measured cable
34mm
DC voltage measuring range
150mV...1kV
AC voltage measuring range
150mV...1kV
AC current measuring accuracy
±(1% + 3 digit)
DC voltage measuring accuracy
±(1% + 3 digit)
DC current measuring accuracy
±(1% + 3 digit)
AC voltage measuring accuracy
±(1% + 3 digit)
Resistance measuring accuracy
±(1%+5 digit)
Frequency measuring accuracy
±(0.4%+1 digit)
Reactive power measurement
0.001...600kVAR
Apparent power measurement
1...600kVA
Gross weight 745.10 g
Documentation in English #1 Documentation in English #2 Documentation in English #3 Documentation in English #4
