AR604/P APAR

Details

AR604/P
AR604/P
AR604/P
AR604/P
AR604/P
AR604/P
AR604/P
AR604/P
AR604/P
  • AR604/P
  • AR604/P
  • AR604/P
  • AR604/P
  • AR604/P
  • AR604/P
  • AR604/P
  • AR604/P
  • AR604/P

Manufacturer product page APAR

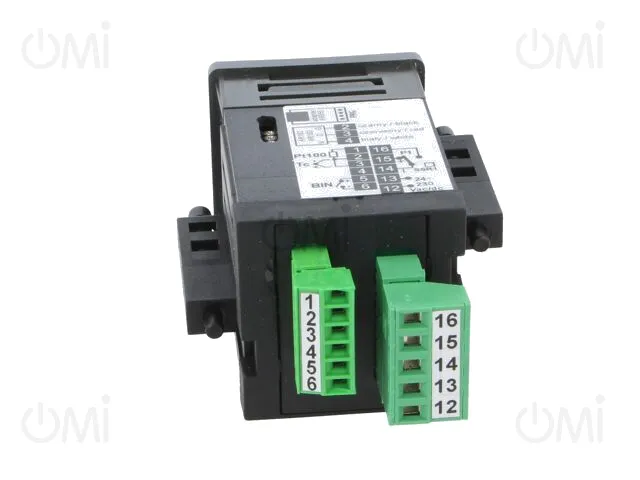

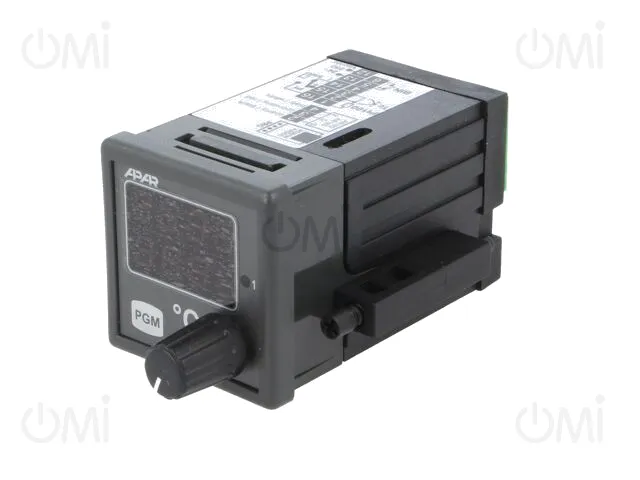

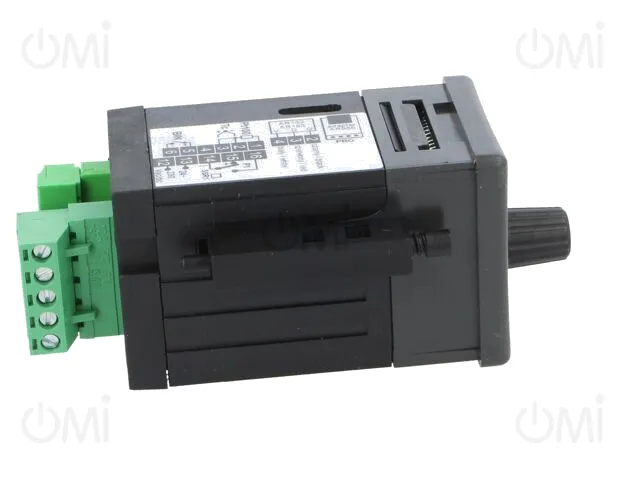

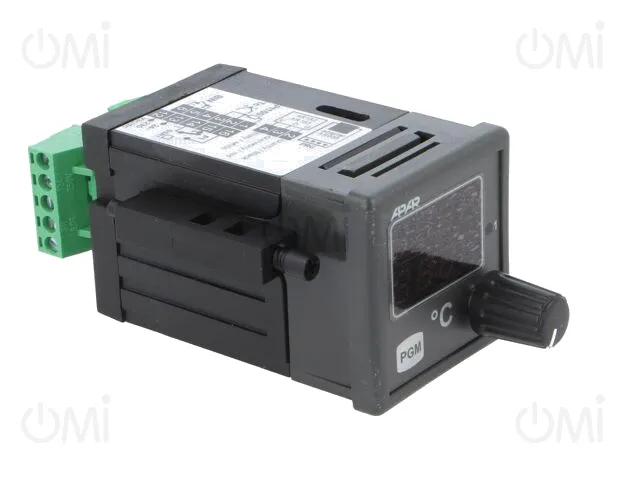

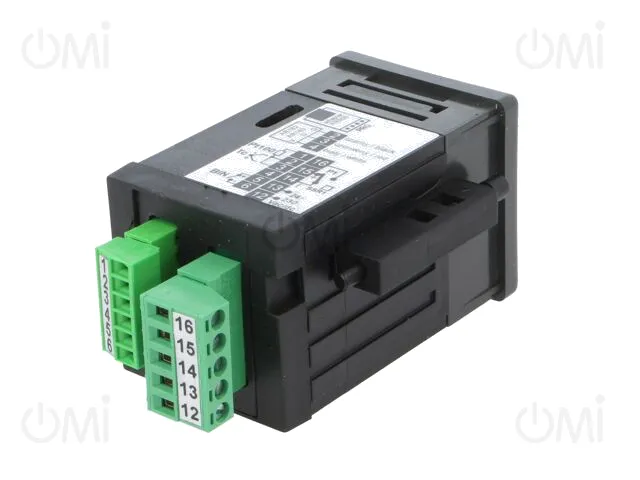

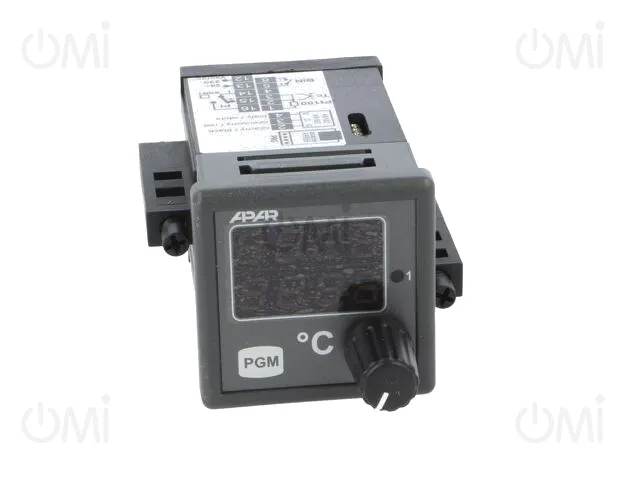

Module: regulator; temperature; relay; panel; OUT 1: 250VAC/8A

Manufacturer code: AR604/P

OMI code: 113259

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

10 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 124.22
5+ 123.36

Price details
AR604/P

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 124.22
5+ 123.36

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
APAR
Mounting
panel
Operating temperature
0...50°C
IP rating
IP20 at terminal side, IP40 (from the front)
Supply voltage
24V DC, 230V AC, 15...250V AC, 20...350V DC
Body dimensions
48x48x79mm
Mounting hole diameter
46x46mm
Type of module
regulator
Kind of display used
LED
Kind of output 1
relay
The programming method
foil keypad
Controlled parameter
temperature
Kind of temperature sensor
Pt100, thermocouple B, thermocouple E, thermocouple J, thermocouple K, thermocouple N, thermocouple R, thermocouple S, thermocouple T
Regulation for output 1
ON-OFF, PID, ON-OFF with hysteresis, AUTOTUNING
Output 1 electrical parameters
250V AC / 8A
Controlled parameter range
-999...9990
Kind of input 1
RTD, thermocouple
Input 1 properties
RTD, thermocouple
Display height 1
7mm
Display 2 height
7mm
Gross weight 215.60 g
Documentation in English #1 Documentation in English #2

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Temperature Regulators
