1393277-8 TE Connectivity

Details

1393277-8
1393277-8
1393277-8
1393277-8
1393277-8
1393277-8
1393277-8
1393277-8
1393277-8
  • 1393277-8
  • 1393277-8
  • 1393277-8
  • 1393277-8
  • 1393277-8
  • 1393277-8
  • 1393277-8
  • 1393277-8
  • 1393277-8

Manufacturer product page TE Connectivity

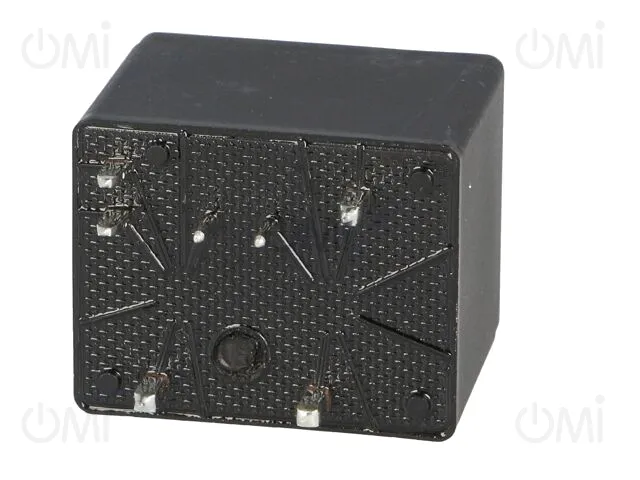

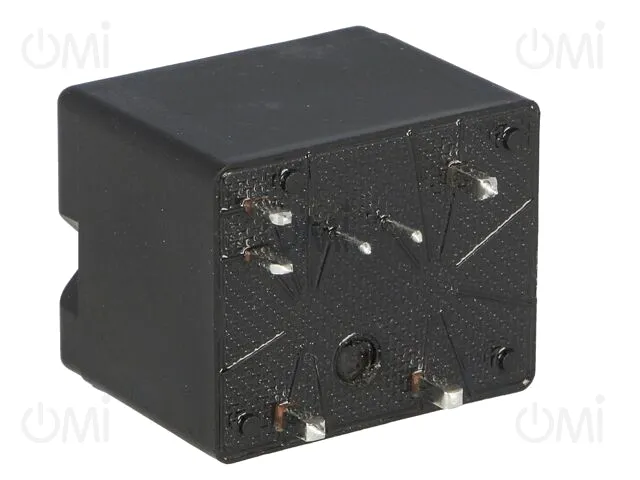

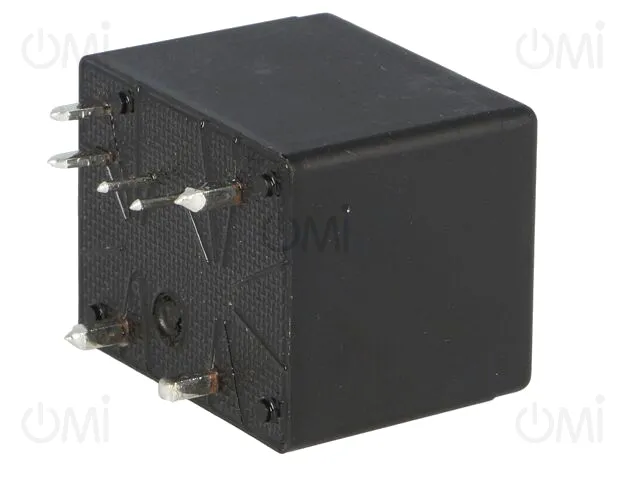

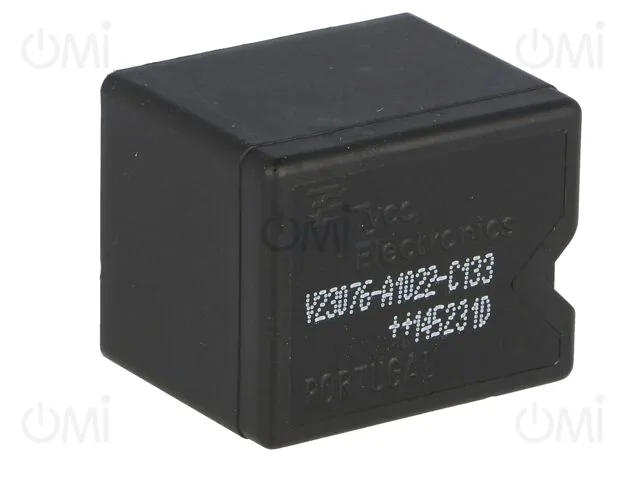

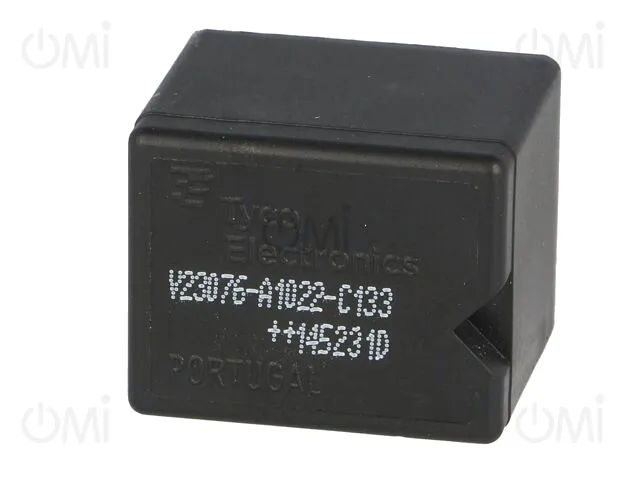

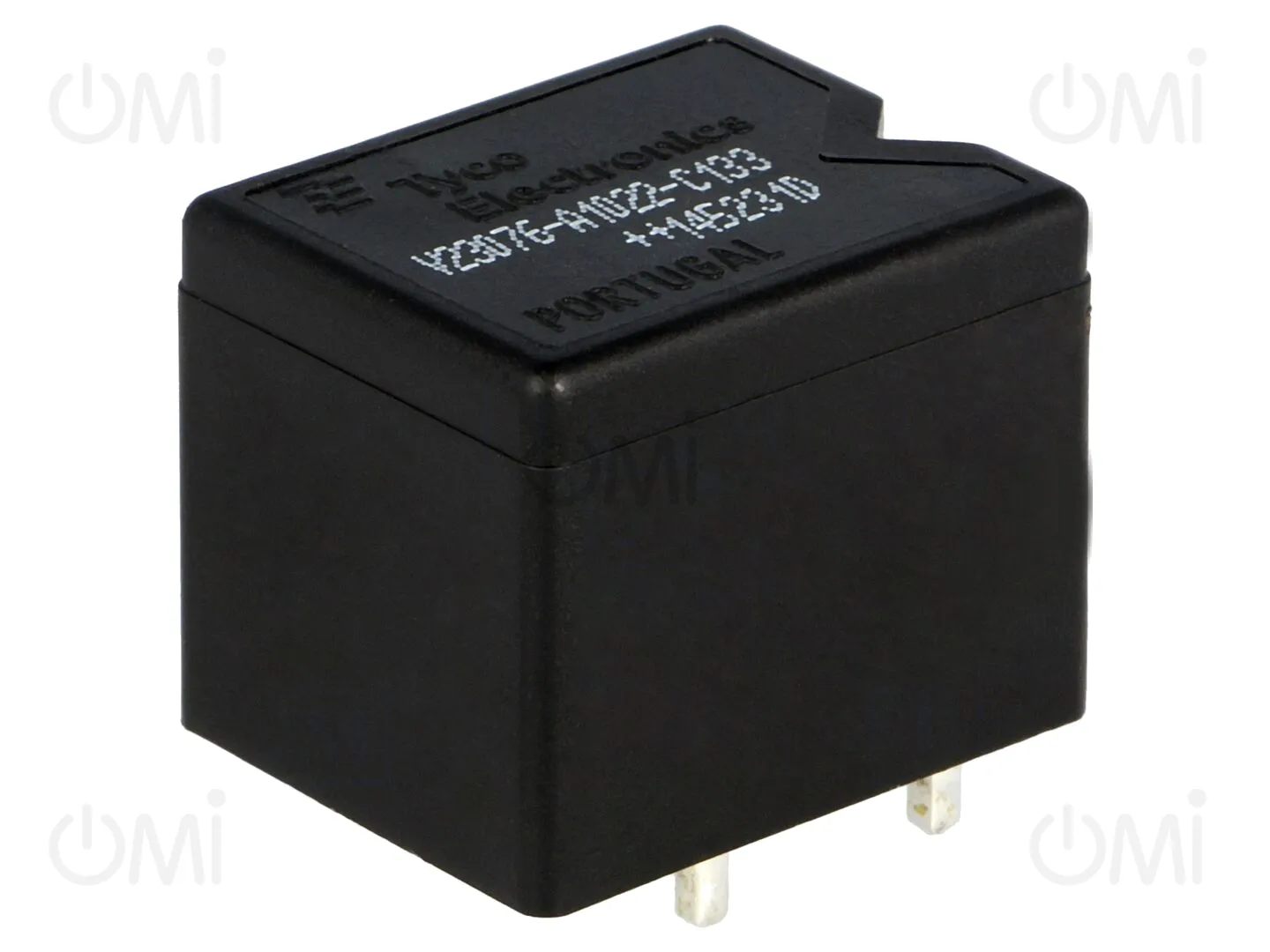

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 40A; automotive; 362Ω

Manufacturer code: 1393277-8

OMI code: 116886

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

673 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 11.49
2+ 9.41
5+ 8.91
100+ 8.8

Price details
1393277-8

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 11.49
2+ 9.41
5+ 8.91
100+ 8.8

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
TE Connectivity
Mounting
THT
Operating temperature
-40...85°C
Contacts configuration
SPDT
Body dimensions
26.1x21.2x21.1mm
Mechanical durability
10000000 cycles
Contact material
AgNi
Switched voltage
max. 165V DC
Height
21.2mm
Type of relay
electromagnetic
Contact current max.
40A
Relay variant
automotive
Relay series
K
Coil resistance
362Ω
Rated coil voltage
24V DC
Coil voltage min.
14.1V DC
Coil power consumption
1.6W
Coil current
66mA
Gross weight 19.95 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Automotive Electromagnetic Relays
