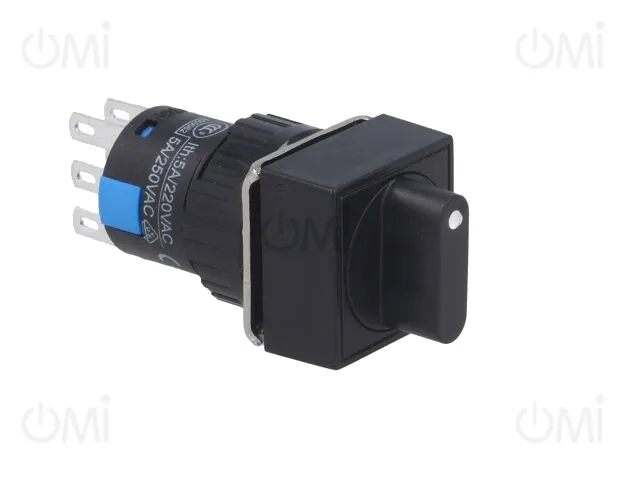

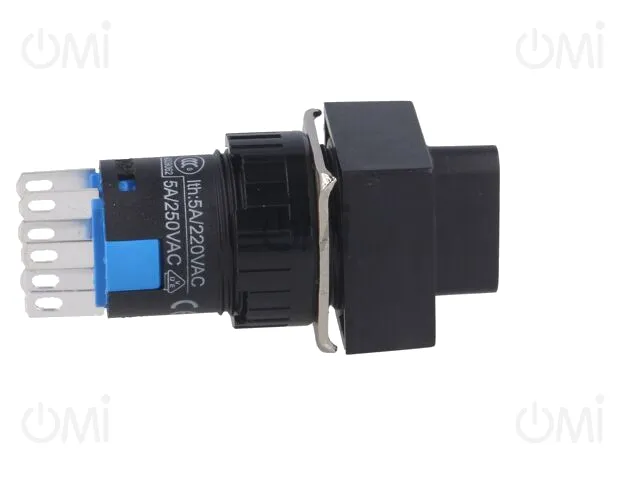

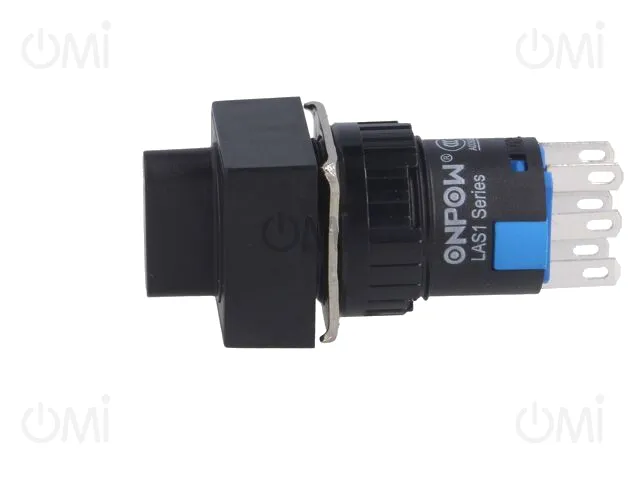

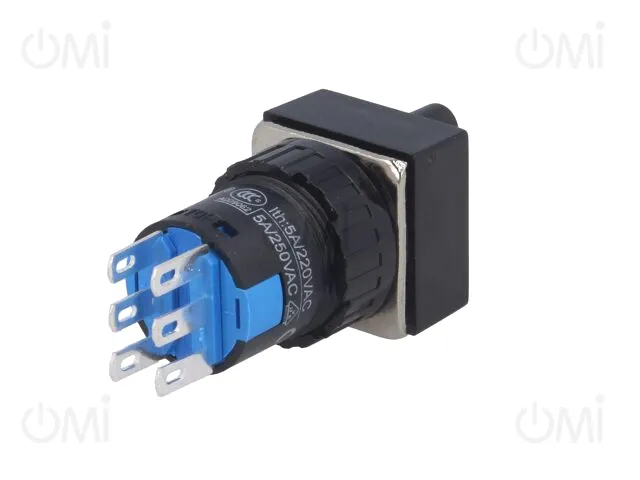

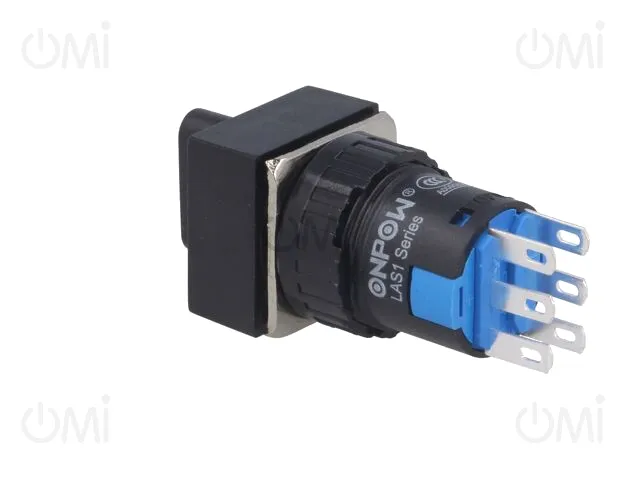

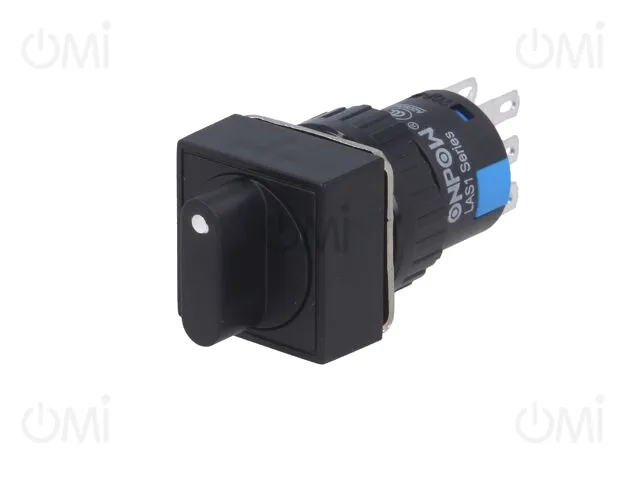

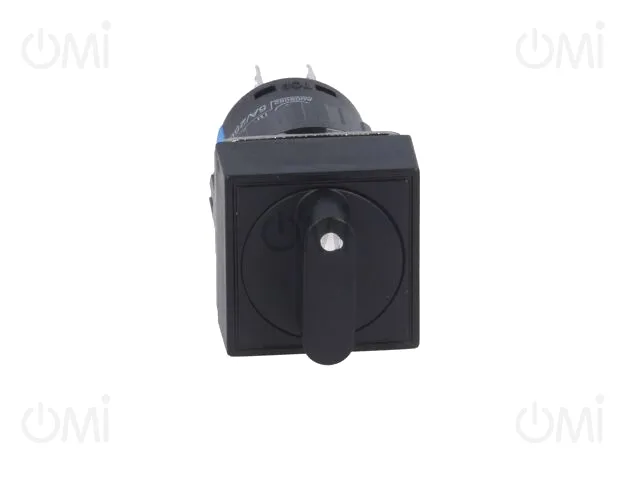

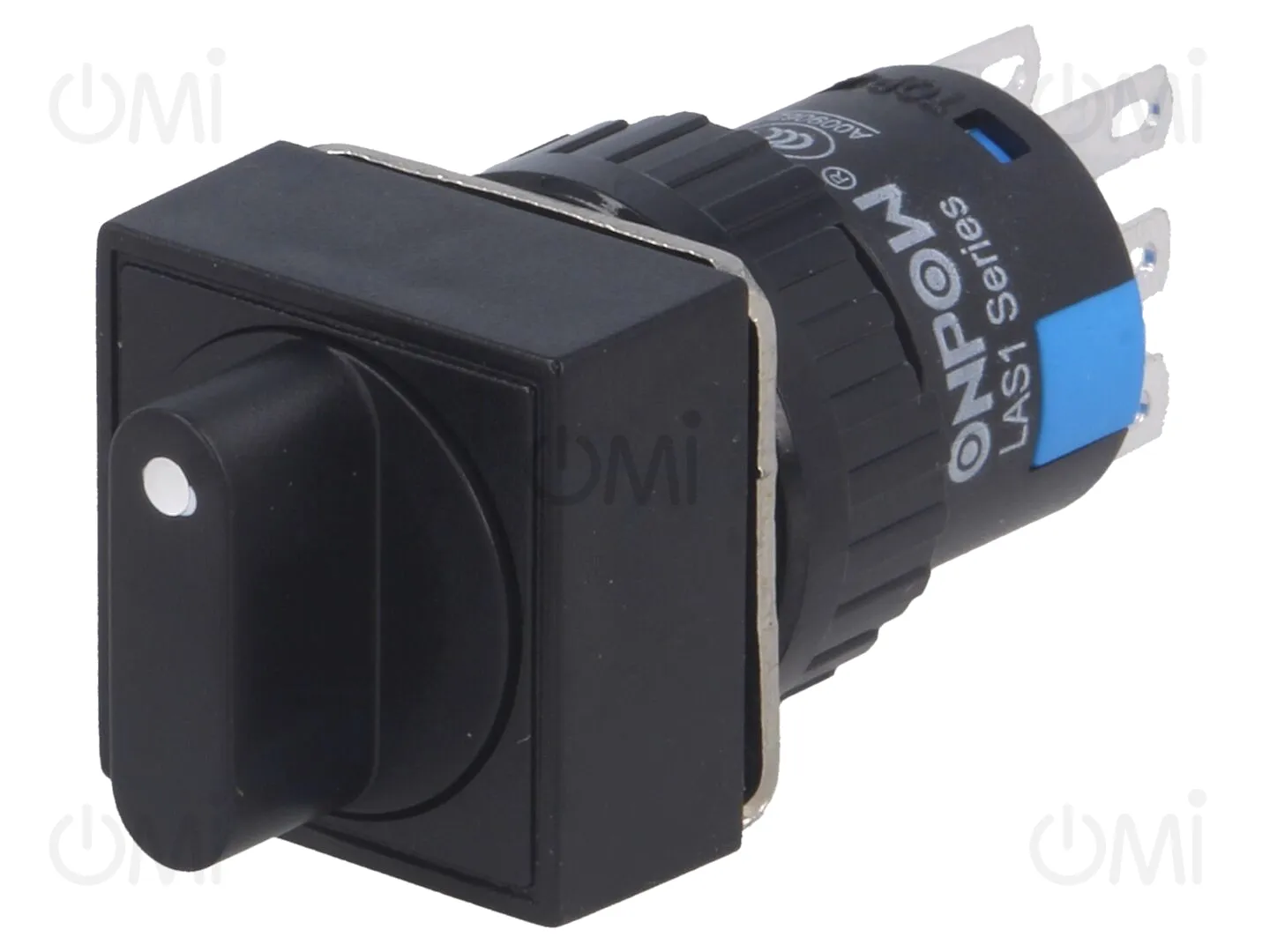

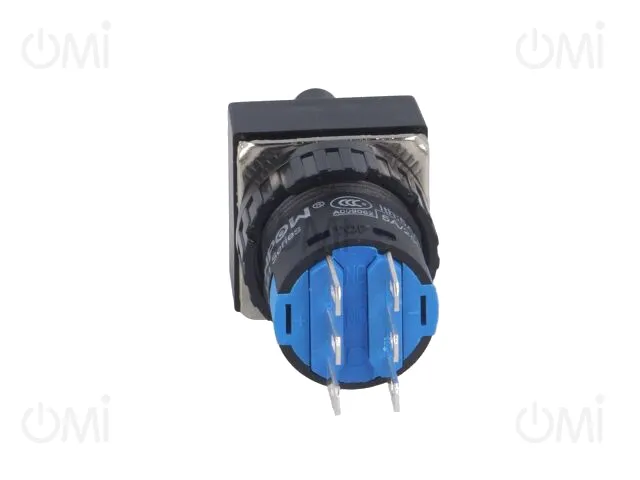

LAS1-AF-22X/31/N ONPOW

Details

LAS1-AF-22X/31/N
LAS1-AF-22X/31/N
LAS1-AF-22X/31/N
LAS1-AF-22X/31/N
LAS1-AF-22X/31/N
LAS1-AF-22X/31/N
LAS1-AF-22X/31/N
LAS1-AF-22X/31/N
LAS1-AF-22X/31/N
  • LAS1-AF-22X/31/N
  • LAS1-AF-22X/31/N
  • LAS1-AF-22X/31/N
  • LAS1-AF-22X/31/N
  • LAS1-AF-22X/31/N
  • LAS1-AF-22X/31/N
  • LAS1-AF-22X/31/N
  • LAS1-AF-22X/31/N
  • LAS1-AF-22X/31/N

Manufacturer product page ONPOW

Switch: rotary; Pos: 3; 3A/220VAC; 2A/24VDC; -20÷55°C; 50mΩ; Ø16mm

Manufacturer code: LAS1-AF-22X/31/N

OMI code: 12456

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

17 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 5.2
5+ 3.82
10+ 3.63
20+ 3.61

Price details
LAS1-AF-22X/31/N

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 5.2
5+ 3.82
10+ 3.63
20+ 3.61

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
ONPOW
Type of switch
rotary
Operating temperature
-20...55°C
IP rating
IP40
Leads
for soldering
Body material
plastic
Switching method
OFF-ON-ON - line 1, ON-ON-OFF - line 2
Contact material
silver alloy
Body colour
black
Mounting hole diameter
Ø16mm
AC contacts rating @R
3A / 220V AC
Number of positions
3
DC contacts rating @R
2A / 24V DC
Illumination
none
Max. contact resistance:
50mΩ
Shape
rectangular
Stable positions number
3
Key button colour
black
Test voltage
2kV
Gross weight 8.10 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Rotary Switches
