CA9H 250K ACP

Details

CA9H 250K
  • CA9H 250K

Manufacturer product page ACP

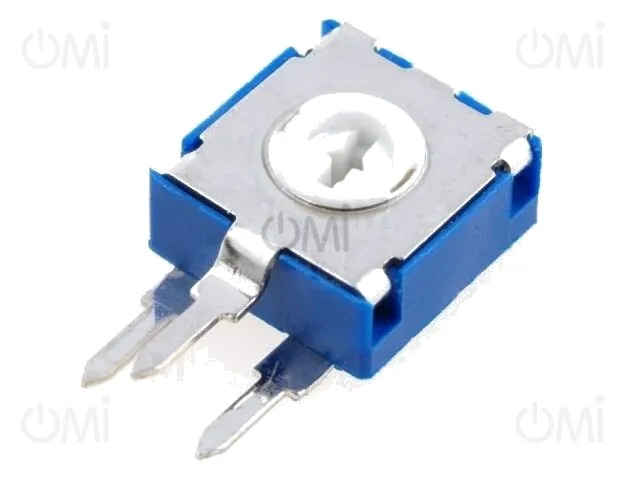

Potentiometer: mounting; single turn,vertical; 250kΩ; 0.15W; ±20%

Manufacturer code: CA9H 250K

OMI code: 12531

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

98 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
5+ 0.33
25+ 0.29
100+ 0.2
115+ 0.16

Price details
CA9H 250K

Qty.
[pcs] 		Price
[EUR/pcs]
5+ 0.33
25+ 0.29
100+ 0.2
115+ 0.16

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
ACP
Mounting
THT
Operating temperature
-25...70°C
Power
0.15W
Body dimensions
10x10x5mm
Tolerance
±20%
Resistance
250kΩ
Max. operating voltage
200V
Terminal pitch
5x2.5mm
Type of potentiometer
mounting
Characteristics
linear
Torque
0,4...2Ncm
Mechanical rotation angle
240 ±5°
Electrical rotation angle
220 ±20°
Track material
carbon
Kind of potentiometer
vertical, single turn
Potentiometer standard
9mm
Potentiometer series
CA9H
Potentiometer features
rectangle hole suitable for screwdriver
Gross weight 0.68 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Single turn THT trimmers
