RTH1022MSO ROHDE & SCHWARZ

Details

RTH1022MSO
  • RTH1022MSO

Manufacturer product page ROHDE & SCHWARZ

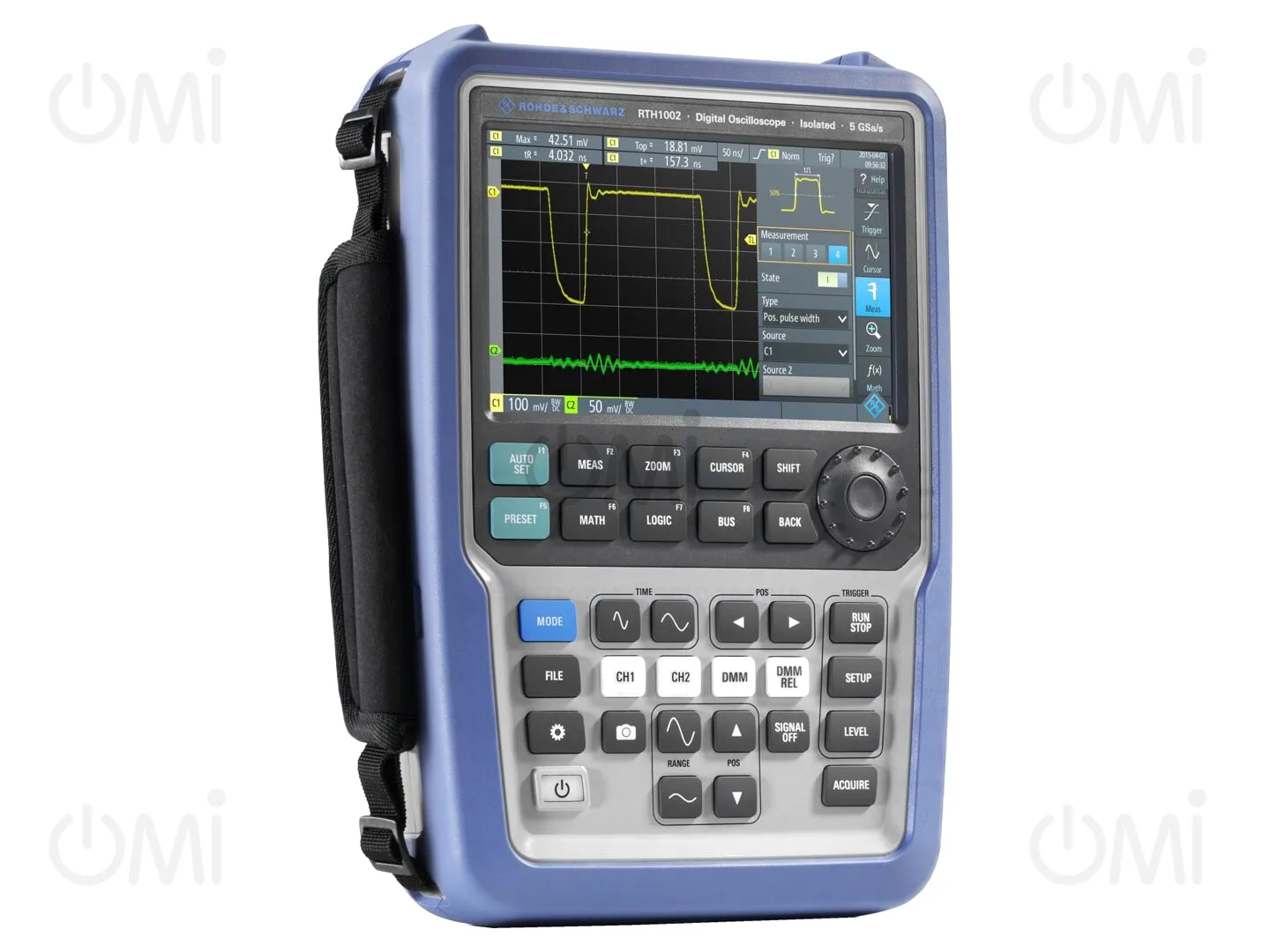

Handheld oscilloscope; Band: 200MHz; colour,LCD TFT 7"; Ch: 2

Manufacturer code: RTH1022MSO

OMI code: 12976

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

0 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 8035.66

Price details
RTH1022MSO

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 8035.66

This product is currently out of stock. You can enable notification of new arrivals of this product. To do this, click on the "Notify" button and fill out the form.

Specification

Show similar products –
Show similar products –
Manufacturer
ROHDE & SCHWARZ
IP rating
IP51
Manufacturer series
RTH Scope Rider
Supply voltage
100...240V AC
Conform to the norm
CAT III 600V, CAT II 1000V, EN 61010, CAT III 1000V, CAT IV 600V
Body dimensions
201x293x74mm
Interface
USB, Ethernet, LAN
Number of channels
2
Kind of display used
colour, LCD TFT 7"
Power supply
rechargeable battery Li-Ion x1
Additional functions
multimeter
Standard equipment
oscilloscope probe (1 per channel), power supply
Measuring instrument features
automatic measurement of many parameters, multilanguage menu, measurements by means of cursors, datalogging, insulated inputs, mask testing, mathematical functions: addition, subtraction, multiplication, square, absolute value, inverse and FFT, banana socket x2, more trigger types with RTH-K19 option, option of memory card connection microSDHC (4GB-32GB), Y-T, X-Y, zoom operation mode
Input impedance
1MΩ/12pF
Temperature measurement accuracy
±(0,13% + 1°C)
Display resolution
800x480
Temperature measuring range
-200...850°C
Measurement
DC voltage, resistance, AC voltage, frequency, capacitance, continuity, AC current (with current clamps), temperature (with PT100 or PT500 platinum sensors)
Battery/ rechargeable battery
rechargeable battery Li-Ion x1
Connectors for the country
USA, Great Britain
Storage temperature
-20...50°C
Plug variant
EU
Continuity test
acoustic indication, <10Ω
Frequency measuring range
1MHz, 1kHz, 10kHz, 100kHz
Touchpad
yes
Software
dedicated mobile app
Sampling
2,5Gsps, 5Gsps interleaved
Band
200MHz
Resistance measuring range
1kΩ, 10kΩ, 100kΩ, 1MΩ, 10MΩ, 100MΩ
DC voltage measuring range
1V, 10V, 100V, 1kV
AC voltage measuring range
1kV, 10V, 100V, 1V
DC voltage measuring accuracy
±(0.05% + 0.03% range)
Capacitance measuring range
1mF, 10nF, 100nF, 1µF, 10µF, 100µF, 10mF
Diode test
3V
AC voltage measuring accuracy
±(0.02% + 0.05% range)
Resistance measuring accuracy
±(0.08%+0.03% range)
Frequency measuring accuracy
±0.005%
Capacitance measuring accuracy
±(1%+ 0.05% range)
Trigger
rising-edge, falling-edge, impulse width, glitch
Type of oscilloscope
handheld oscilloscope
Input coupling
AC, DC
Vertical resolution
9bit
Trigger modes
automatic, normal, single
Trigger coupling
AC, DC
Max. input voltage
300V
Rise time
≤1.75ns
Input sensitivity
2mV/div...100V/div
Time base
1n...500s/div
Memory record length
500kpts
Trigger source
CH1, CH2
Gross weight 4500.00 g
Documentation in English #1 Documentation in English #2 Documentation in English #3 Documentation in English #4 Documentation in English #5

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Portable Oscilloscopes, Scopemeters
