AR650/P/P/P/WU/RS485 APAR

Details

AR650/P/P/P/WU/RS485
AR650/P/P/P/WU/RS485
AR650/P/P/P/WU/RS485
AR650/P/P/P/WU/RS485
AR650/P/P/P/WU/RS485
AR650/P/P/P/WU/RS485
AR650/P/P/P/WU/RS485
AR650/P/P/P/WU/RS485
AR650/P/P/P/WU/RS485
  • AR650/P/P/P/WU/RS485
  • AR650/P/P/P/WU/RS485
  • AR650/P/P/P/WU/RS485
  • AR650/P/P/P/WU/RS485
  • AR650/P/P/P/WU/RS485
  • AR650/P/P/P/WU/RS485
  • AR650/P/P/P/WU/RS485
  • AR650/P/P/P/WU/RS485
  • AR650/P/P/P/WU/RS485

Manufacturer product page APAR

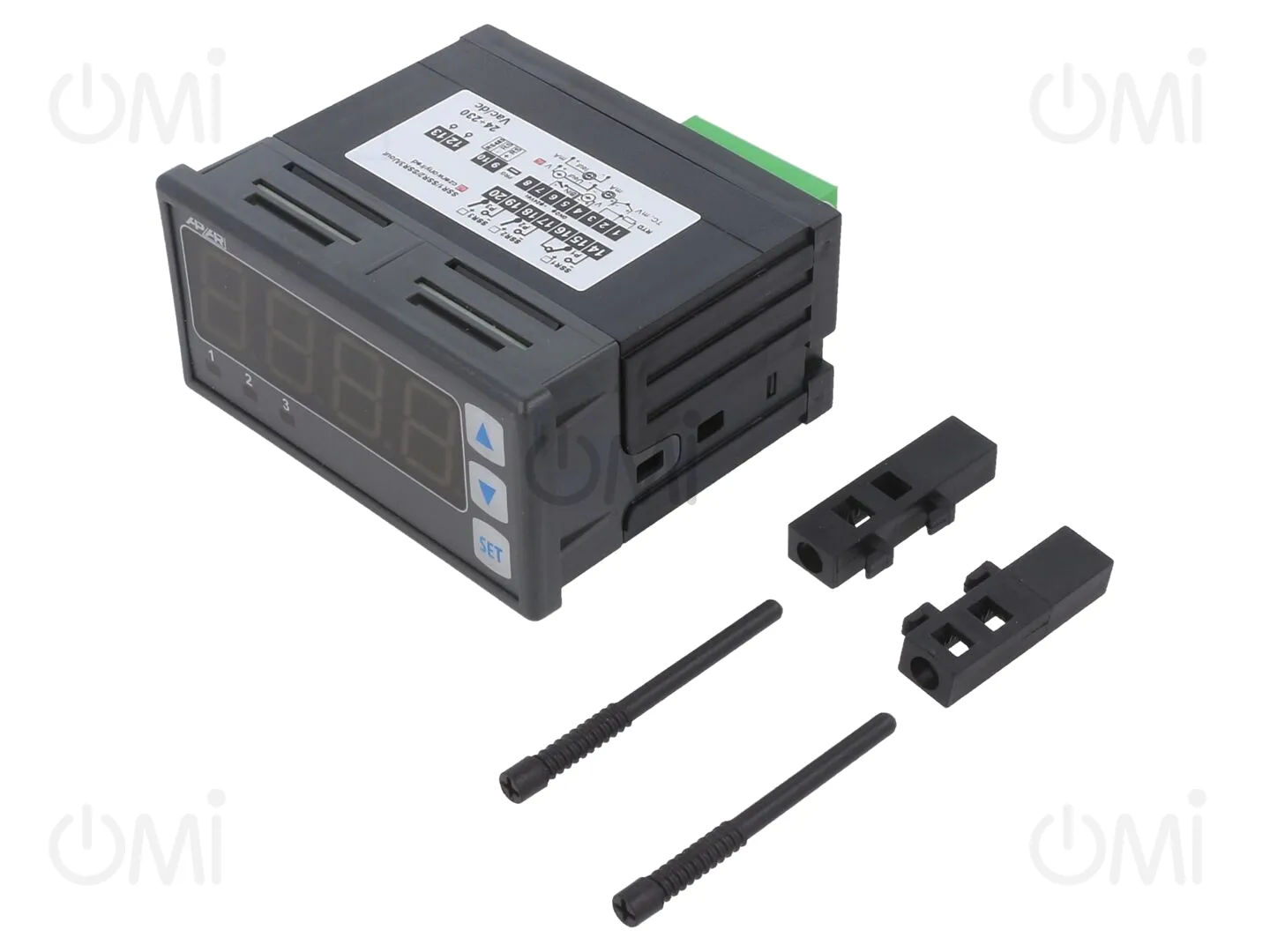

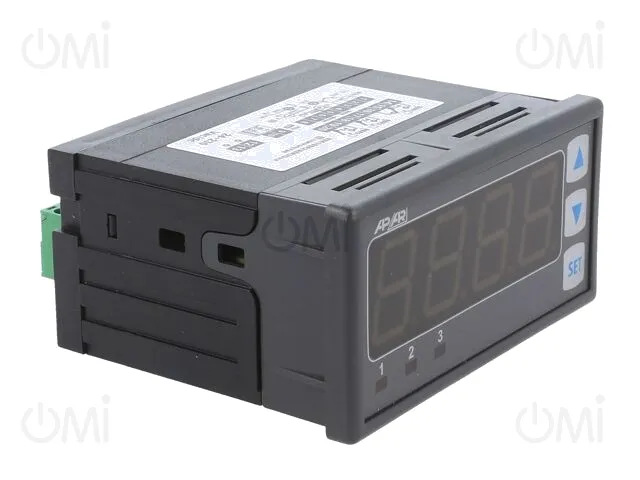

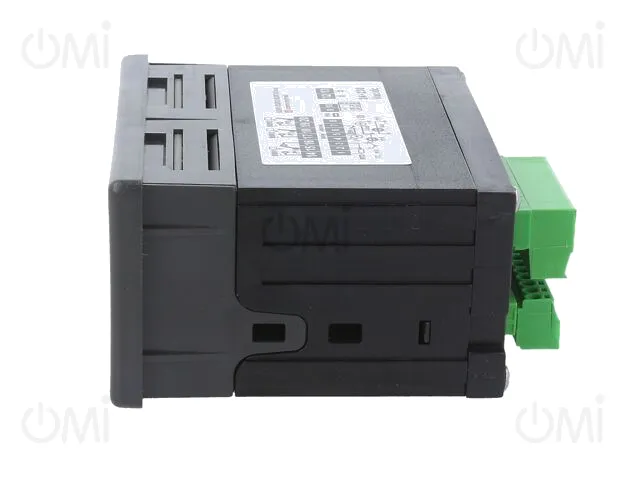

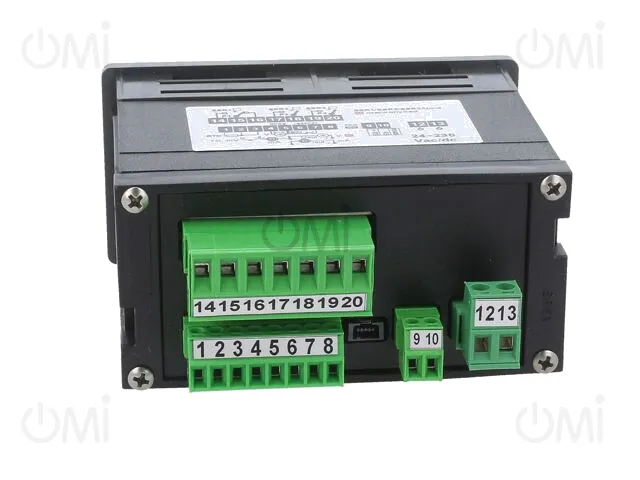

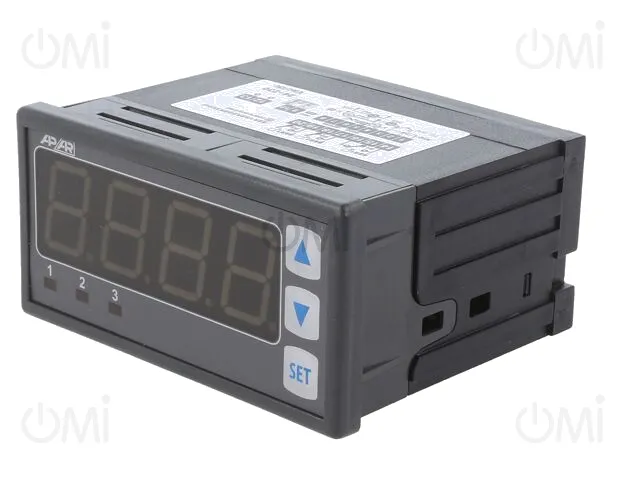

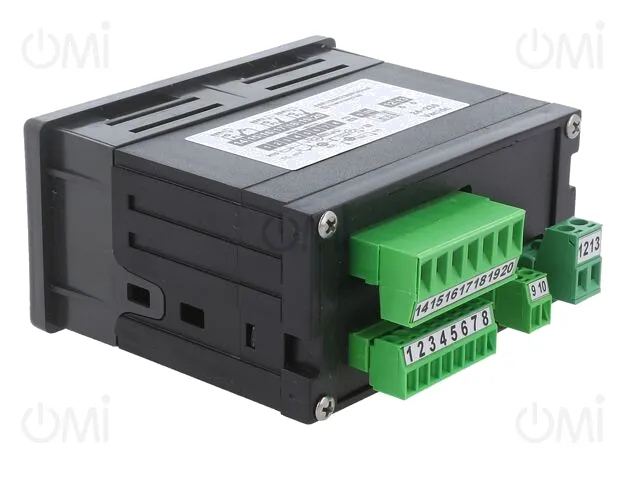

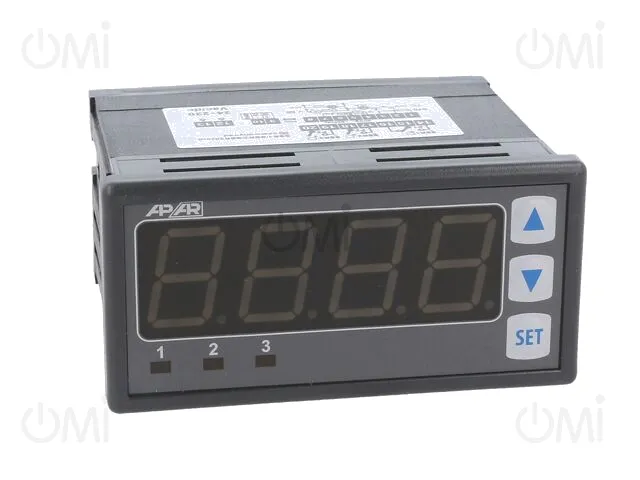

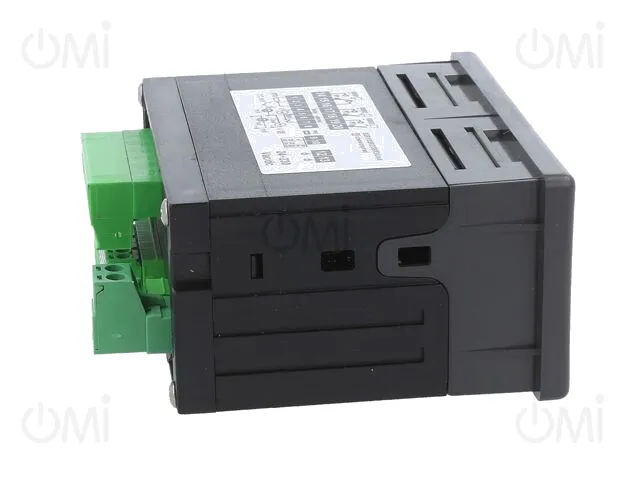

Module: regulator; temperature; SPDT; OUT 2: SPST-NO; on panel

Manufacturer code: AR650/P/P/P/WU/RS485

OMI code: 132861

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

1 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 200.78
5+ 194.59

Price details
AR650/P/P/P/WU/RS485

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 200.78
5+ 194.59

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
APAR
Mounting
on panel
Operating temperature
0...50°C
IP rating
IP65 (from the front)
Manufacturer series
AR650
Supply voltage
20...350V DC, 18...265V AC
Body dimensions
96x48x79mm
Mounting hole diameter
92x46mm
Interface
RS485
Type of module
regulator
Kind of display used
LED
Kind of output 1
SPDT
The programming method
foil keypad
Additional functions
LED status indicator, temperature compensation of thermocouple cold ends, error messages on the LED display, output 1 - operational output, output 2 - operational output;
Controlled parameter
temperature
Kind of temperature sensor
Pt100, thermocouple B, thermocouple E, thermocouple J, thermocouple K, thermocouple N, thermocouple R, thermocouple S, thermocouple T, Pt1000, Ni100, Pt500
Regulation for output 1
ON-OFF, PID, ON-OFF with hysteresis, AUTOTUNING
Display parameters
4-digit
Controlled parameter range
-1999...9999
Kind of input 1
0...20mA, 4...20mA, universal, 0...60mV, 0...10V DC, 0...2,5kΩ
Input 1 properties
RTD, thermocouple
Display height 1
20mm
Kind of output 2
SPST-NO
Kind of output 3
SPST-NO
Regulation for output 2
ON-OFF with hysteresis, ON-OFF
Kind of output 4
0/2...10V
Gross weight 319.70 g
