1004-739 MEGGER

Details

1004-739
  • 1004-739

Manufacturer product page MEGGER

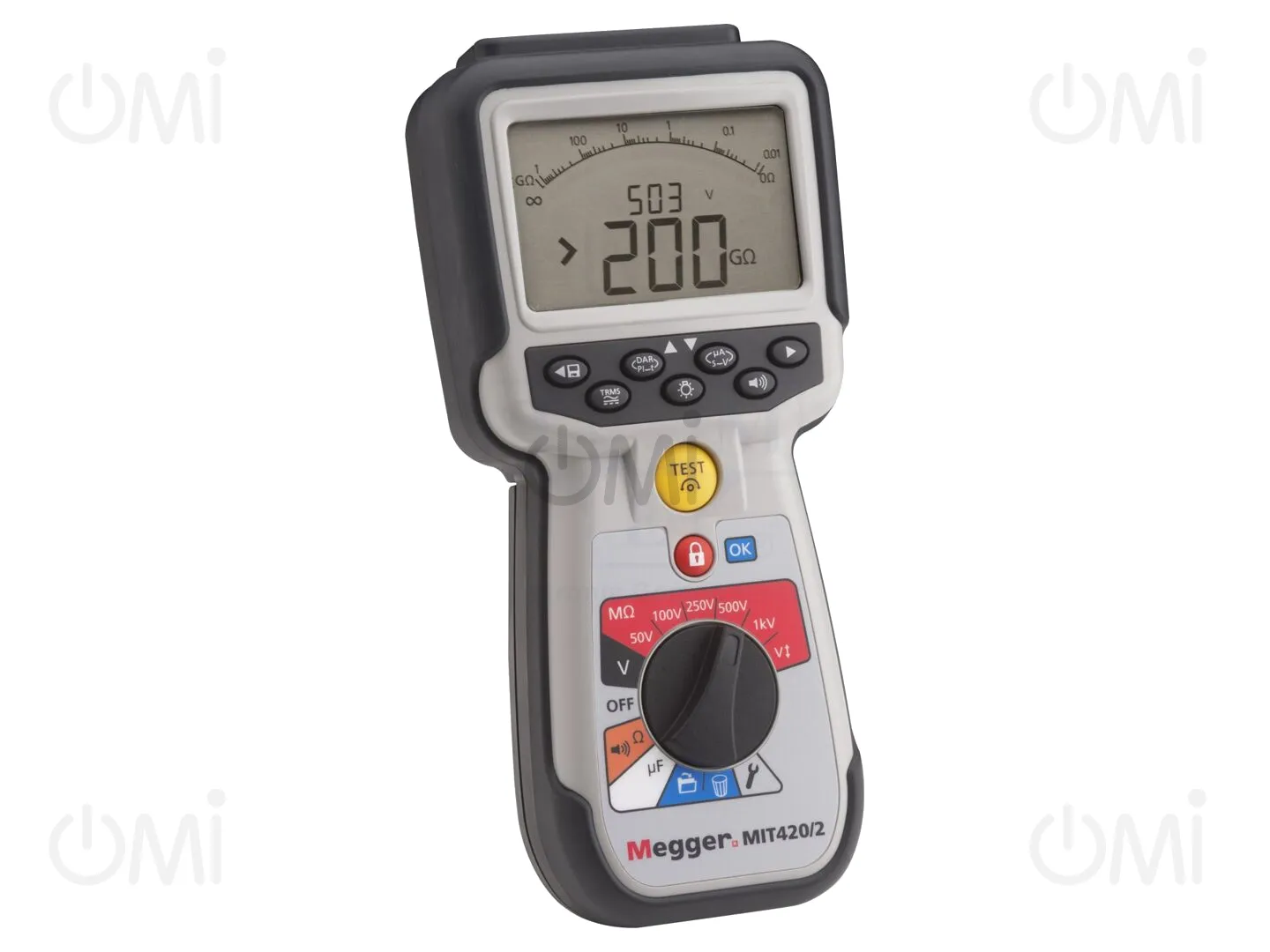

Meter: insulation resistance; LCD; R range: 0.01÷1000kΩ; 1nF÷10uF

Manufacturer code: 1004-739

OMI code: 133140

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

3 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 893.26

Price details
1004-739

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 893.26

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
MEGGER
IP rating
IP54
Conform to the norm
EN 61010, CAT III 1000V, CAT IV 600V
Body dimensions
228x108x63mm
Kind of display used
LCD
Power supply
battery LR6 AA 1,5V x6
Standard equipment
test leads, manufacturer's calibration certificate, test probe x1, soft case
Measuring instrument features
automatic power-off, polarization index (PI) and dielelectric absorption ratio (DAR), time testing
Input impedance
0.25MΩ
Type of meter
insulation resistance
Measurement
DC voltage, resistance, AC voltage, frequency, capacitance, continuity, insulation resistance
Battery/ rechargeable battery
battery LR6 AA 1,5V x6
Continuity test
10mΩ...99.9Ω
Frequency measuring range
15...400Hz
Weight with battery
1.75kg
Bargraph
yes
Resistance measuring range
10Ω...1MΩ
DC voltage measuring range
0...600V
AC voltage measuring range
10mV...600V
DC voltage measuring accuracy
±(2% + 2 digit)
Capacitance measuring range
1nF...10µF
AC voltage measuring accuracy
±(2% + 1 digit)
Resistance measuring accuracy
±(5%+2 digit)
Frequency measuring accuracy
±(0.5%+1 digit)
Capacitance measuring accuracy
±(5%+ 2 digit)
Test voltage
50V, 100V, 250V, 500V, 1kV, 10...1000V
Insulation resistance measuring ranges
200GΩ, 10GΩ, 100GΩ, 50GΩ, 20GΩ
Bandwidth for AC voltage measurements
15...400Hz
Insulation resistance measuring accuracy
±(2% + 2digit)
Gross weight 1986.70 g
Documentation in English #1 Documentation in English #2

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Insulation Resistance Meters
