M12B-05BMMM-PL8D02 AMPHENOL LTW

Details

M12B-05BMMM-PL8D02
  • M12B-05BMMM-PL8D02

Manufacturer product page AMPHENOL LTW

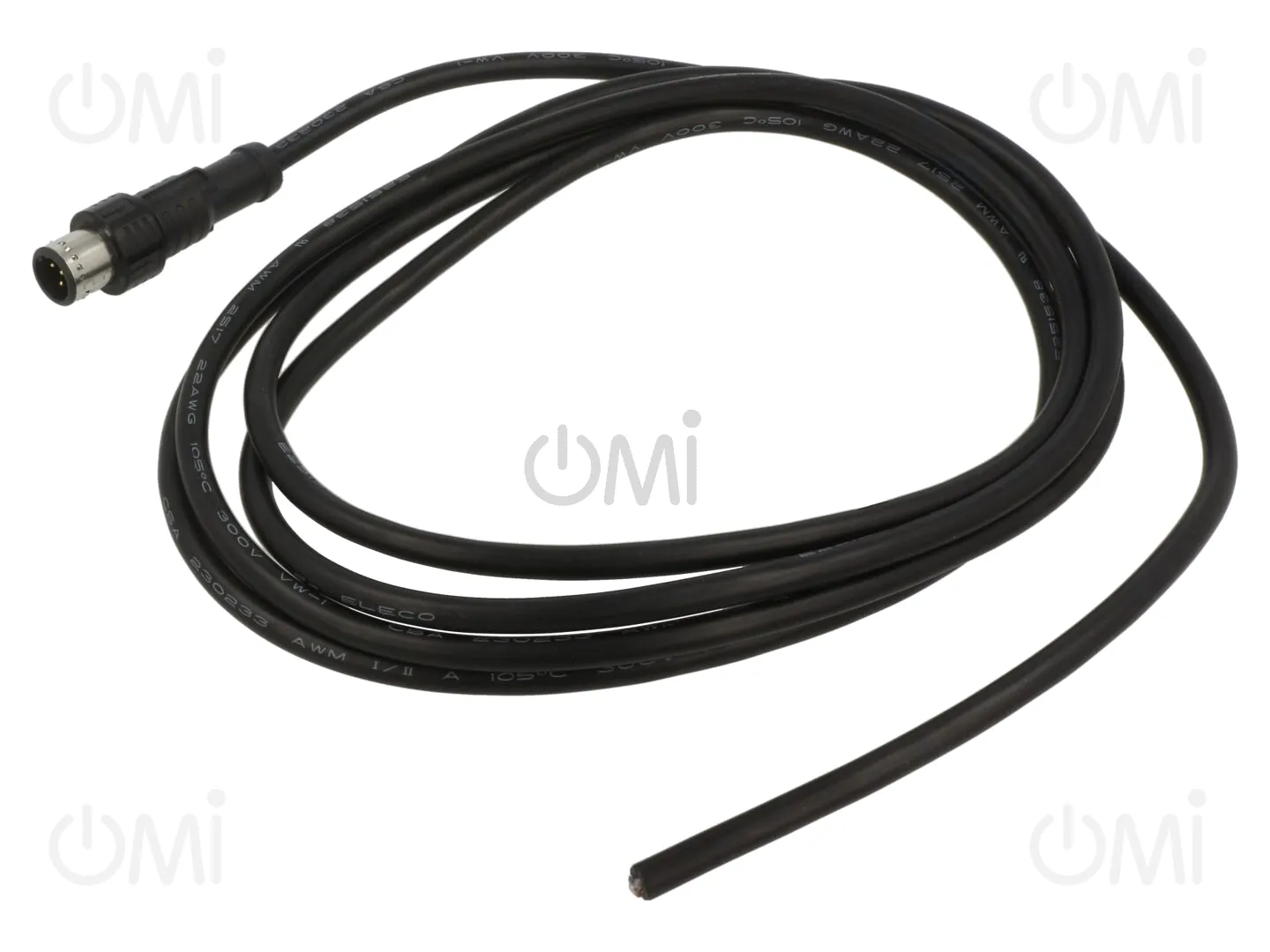

Plug; M12; PIN: 5; male; B code-Profibus; Len: 2m; Insulation: PVC

Manufacturer code: M12B-05BMMM-PL8D02

OMI code: 135999

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

18 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 15.22
10+ 13.14
20+ 12.61
50+ 11.76

Price details
M12B-05BMMM-PL8D02

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 15.22
10+ 13.14
20+ 12.61
50+ 11.76

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
AMPHENOL LTW
Operating temperature
-20...80°C
IP rating
IP68
Current rating
4A
Number of pins
5
Connector series
MPronto-12
Wire insulation material
PVC
Contact plating
gold-plated
Cable length
2m
Mechanical durability
500 cycles
Kind of connector
male
Connector
plug
Polarisation
B code - Profibus
Locking system
push-pull
Electrical mounting
cables
Wire size
22AWG
Cable external diameter
5.1mm
Type of connector
M12
Spatial orientation
straight
Rated voltage
60V
Wire colour
black
Connectors features
mateable with all female M12
Gross weight 92.55 g
Documentation in English #1 Documentation in English #2

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: M12 connectors with cable
