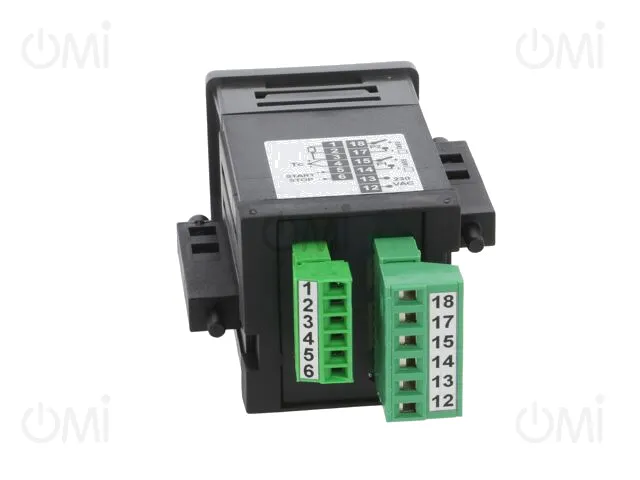

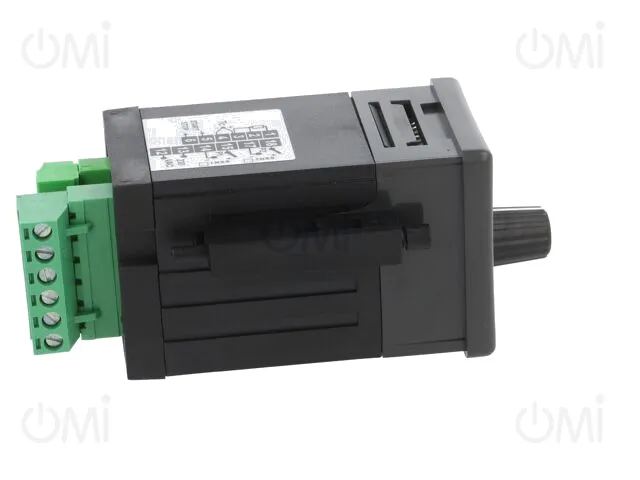

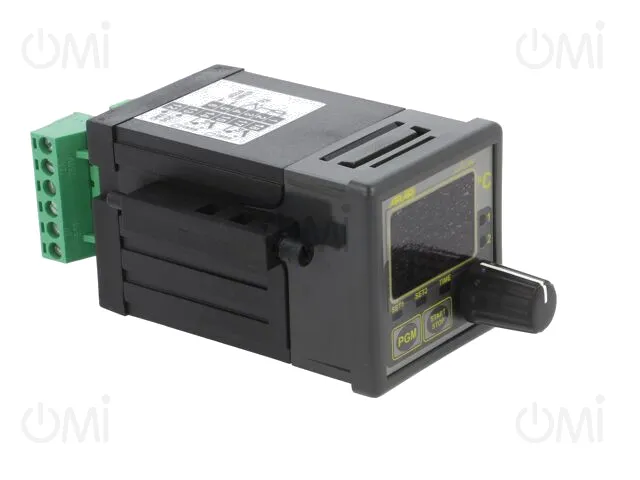

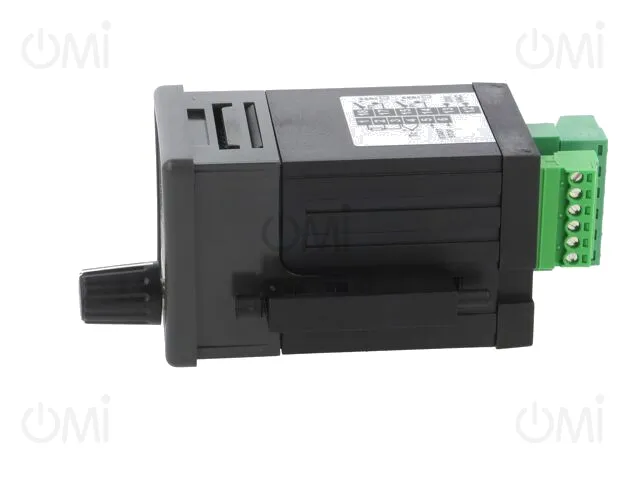

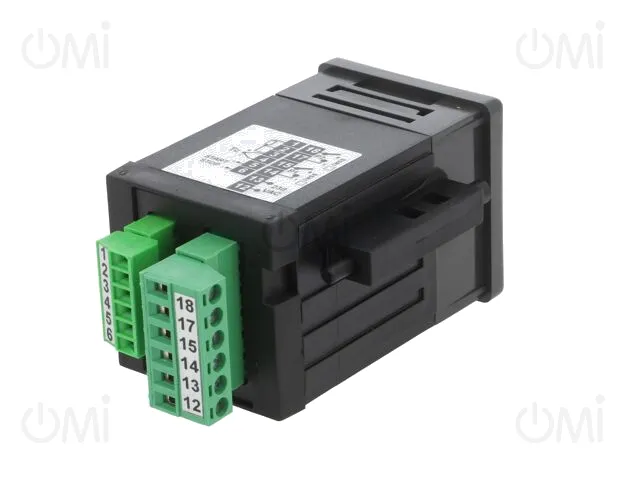

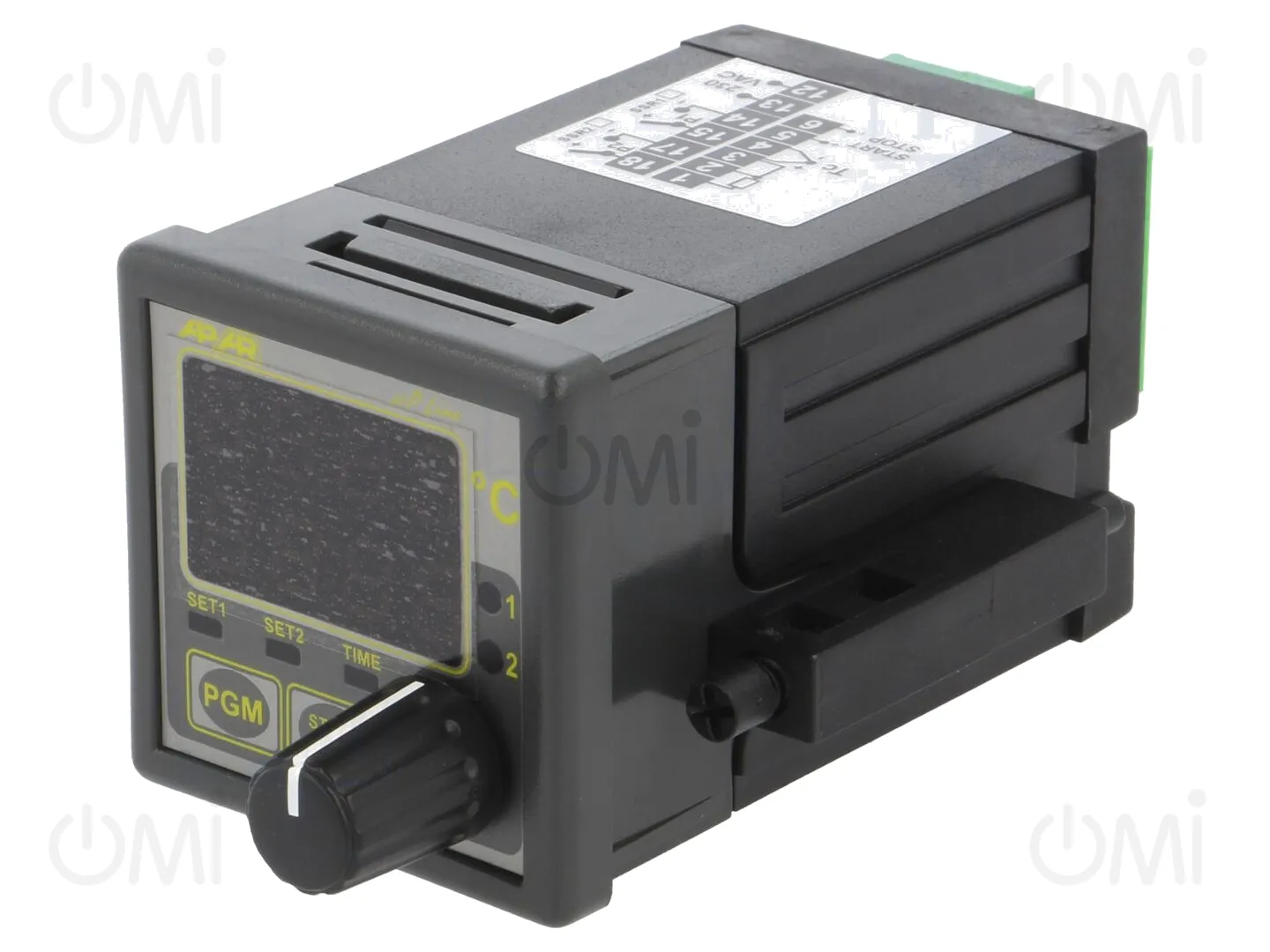

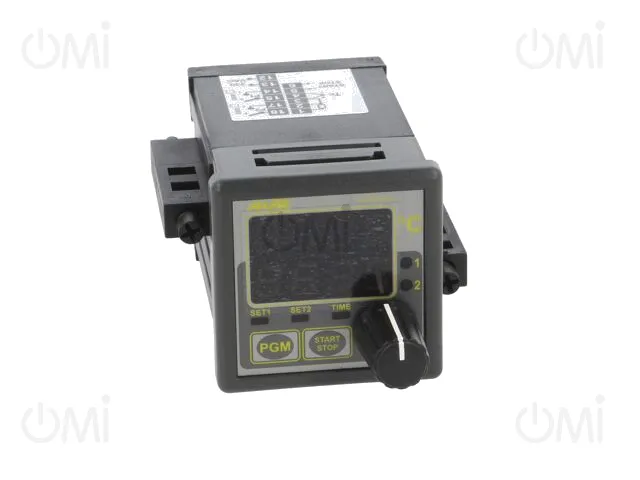

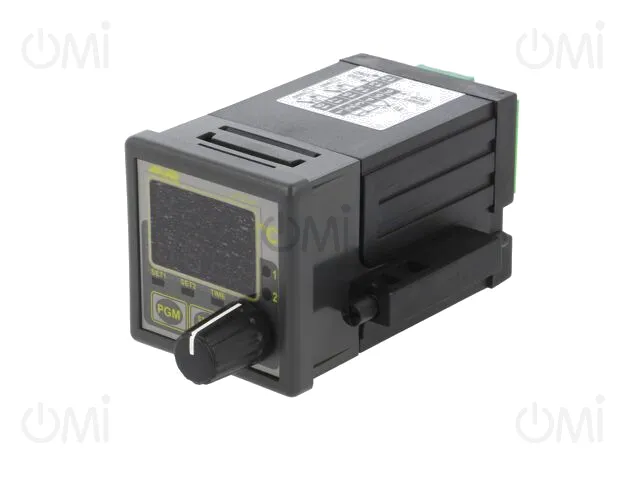

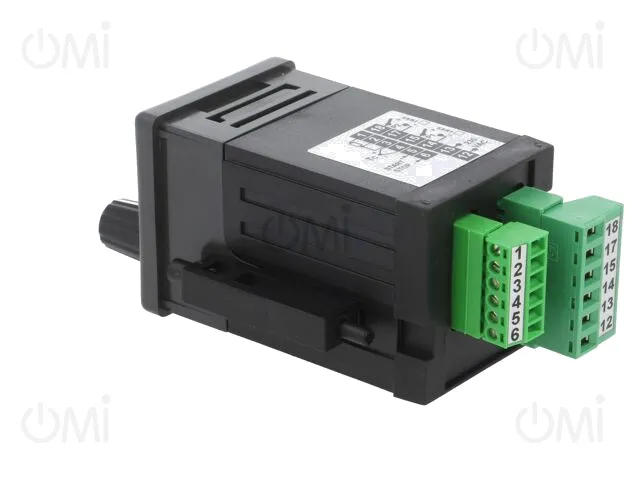

AR603/P/P APAR

Details

AR603/P/P
AR603/P/P
AR603/P/P
AR603/P/P
AR603/P/P
AR603/P/P
AR603/P/P
AR603/P/P
AR603/P/P
  • AR603/P/P
  • AR603/P/P
  • AR603/P/P
  • AR603/P/P
  • AR603/P/P
  • AR603/P/P
  • AR603/P/P
  • AR603/P/P
  • AR603/P/P

Manufacturer product page APAR

Module: regulator; temperature; relay; OUT 2: relay; panel; 0÷50°C

Manufacturer code: AR603/P/P

OMI code: 13755

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

6 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 129.99
5+ 126

Price details
AR603/P/P

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 129.99
5+ 126

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
APAR
Mounting
panel
Operating temperature
0...50°C
IP rating
IP20 at terminal side, IP50 (from the front)
Manufacturer series
AR603
Supply voltage
15...250V AC, 20...350V DC
Body dimensions
48x48x79mm
Mounting hole diameter
46x46mm
Type of module
regulator
Kind of display used
LCD
Kind of output 1
relay
The programming method
foil keypad
Additional functions
LED status indicator
Controlled parameter
temperature
Kind of temperature sensor
Pt100, thermocouple J, thermocouple K, thermocouple S, thermocouple compensator
Regulation for output 1
PID, ON-OFF with hysteresis, AUTOTUNING
Display parameters
4-digit
Output 1 electrical parameters
250V AC / 8A, 250V AC / 2A
Controlled parameter range
-999...9990
Kind of input 1
RTD, thermocouple
Display height 1
7mm
Display 2 height
7mm
Kind of output 2
relay
Output 2 electrical parameters
250V AC / 2A, 250V AC / 8A
Regulation for output 2
ON-OFF with hysteresis
Gross weight 230.60 g

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Temperature Regulators
