93603-0095 MOLEX

Details

93603-0095
93603-0095
93603-0095
93603-0095
93603-0095
93603-0095
93603-0095
93603-0095
93603-0095
  • 93603-0095
  • 93603-0095
  • 93603-0095
  • 93603-0095
  • 93603-0095
  • 93603-0095
  • 93603-0095
  • 93603-0095
  • 93603-0095

Manufacturer product page MOLEX

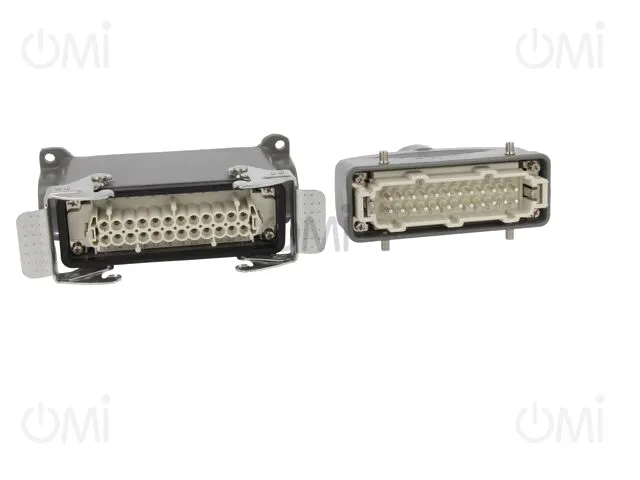

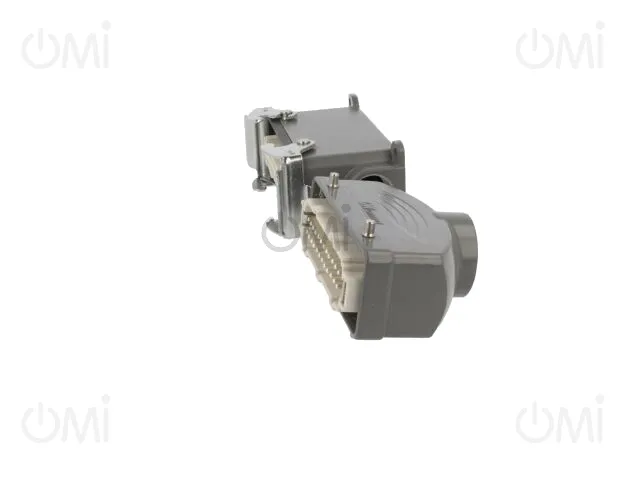

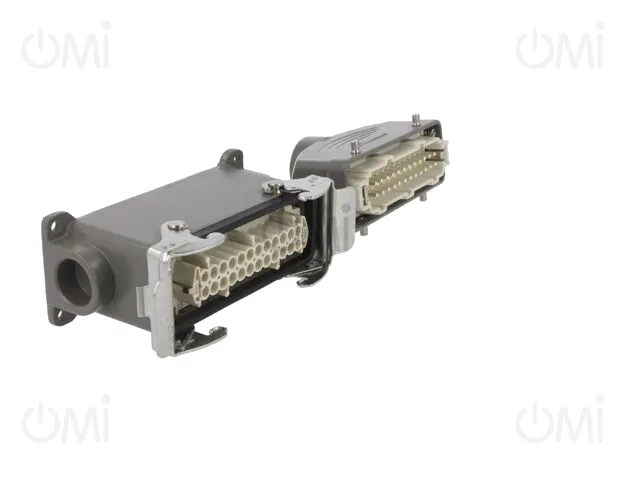

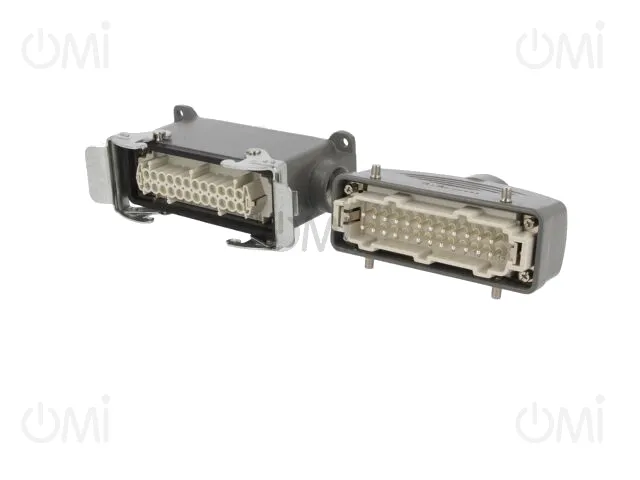

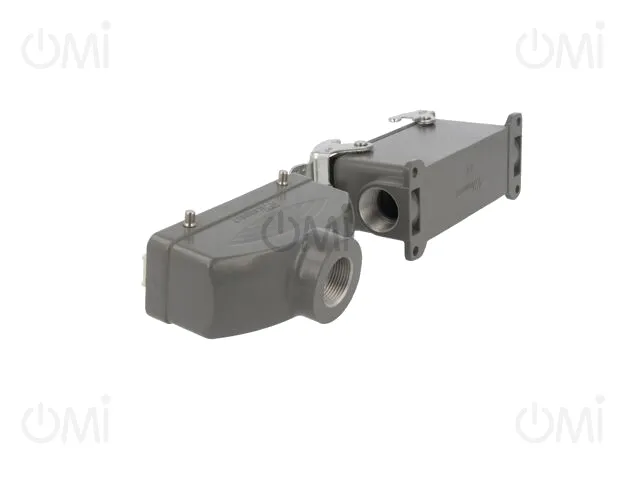

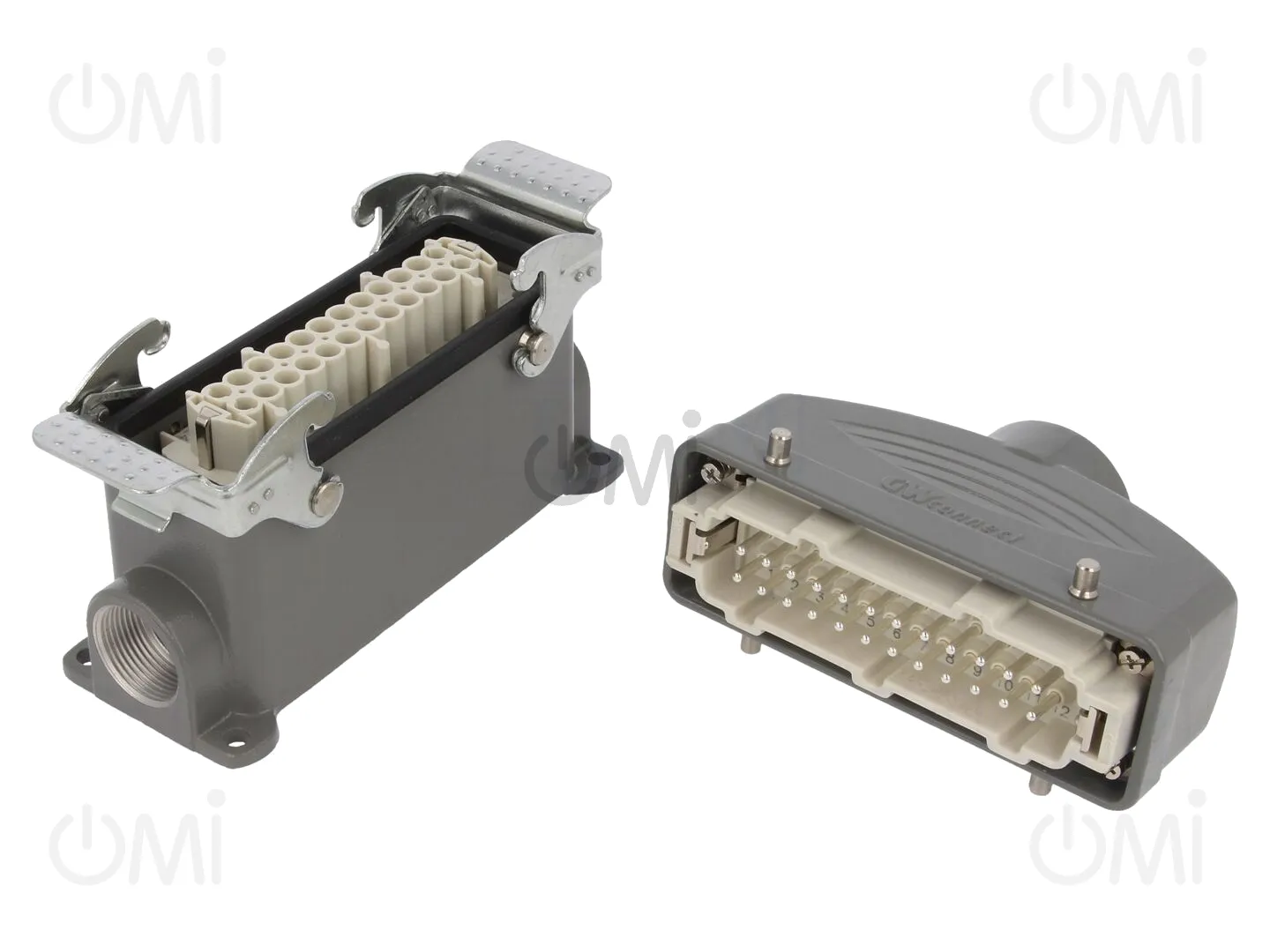

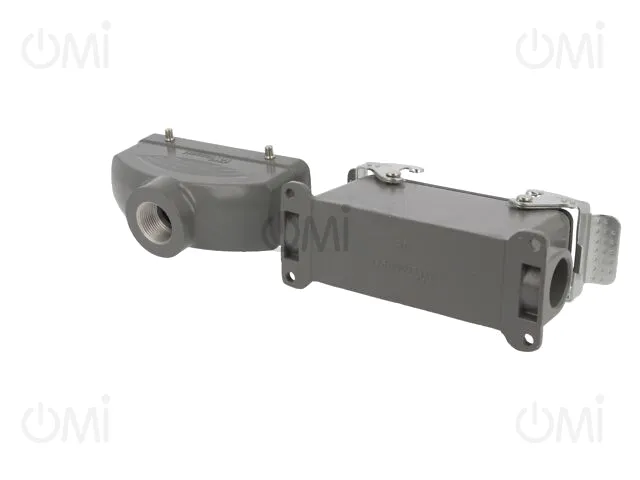

Connector: HDC; male + female; S-E; PIN: 24; 24+PE; size 24B; metal

Manufacturer code: 93603-0095

OMI code: 13887

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

2 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 80.63

Price details
93603-0095

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 80.63

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
MOLEX
IP rating
IP66
Current rating
16A
Kit contents
complete set, plug + socket
Manufacturer series
GWconnect
Number of pins
24
Connector series
S-E
Case
size 24B
Connector pinout layout
24+PE
Kind of connector
male + female
Enclosure material
metal
Connector variant
without cable gland
Wire cross-section
0.5...2.5mm<sup>2</sup>
Gland thread
M25
Electrical mounting
screw terminal
Mechanical mounting
for cable, for panel mounting
Type of connector
HDC
Spatial orientation
straight
Rated voltage
500V
Engineering PN
7924.7767.0
Insert mounting
104x27mm
Gross weight 893.20 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: GWconnect connectors
