292-100J-52S AMPHENOL RF

Details

292-100J-52S
  • 292-100J-52S

Manufacturer product page AMPHENOL RF

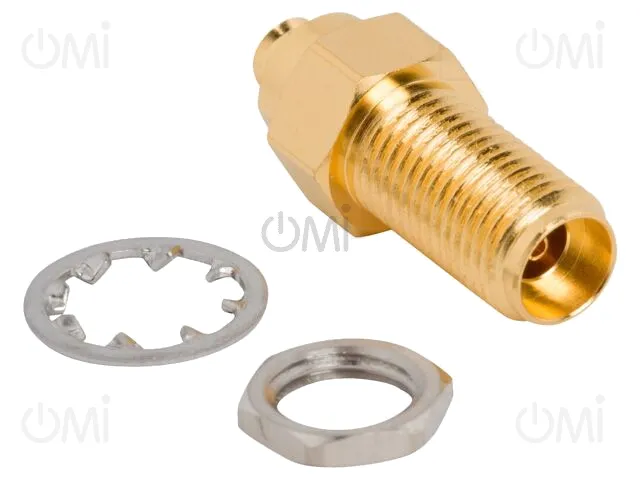

Socket; coaxial; female; straight; 50Ω; soldering; -65÷165°C; 40GHz

Manufacturer code: 292-100J-52S

OMI code: 143921

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

0 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
100+ 33.44

Price details
292-100J-52S

Qty.
[pcs] 		Price
[EUR/pcs]
100+ 33.44

This product is currently out of stock. You can enable notification of new arrivals of this product. To do this, click on the "Notify" button and fill out the form.

Specification

Show similar products –
Show similar products –
Manufacturer
AMPHENOL RF
Operating temperature
-65...165°C
Connector series
2.92mm
Contact plating
gold-plated
Body material
stainless steel
Mechanical durability
500 cycles
Kind of connector
female
Contact material
beryllium copper
Body plating
gold
Insulator material
ULTEM 1000
Connector
socket
Electrical mounting
soldering
Mechanical mounting
for panel mounting, front side nut
Type of connector
coaxial
Spatial orientation
straight
Wave impedance
50Ω
Max. frequency
40GHz
Kind of cable
0.085-inch Conformable, 0.085-inch Semi-Rigid, 0.086-inch Conformable, 0.086-inch Semi-Rigid, Belden 1671A, RG405, Times Tflex 405
Gross weight 4.11 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Coaxial connectors
