DAT72415F SENSATA / CYNERGY3

Details

DAT72415F
  • DAT72415F

Manufacturer product page SENSATA / CYNERGY3

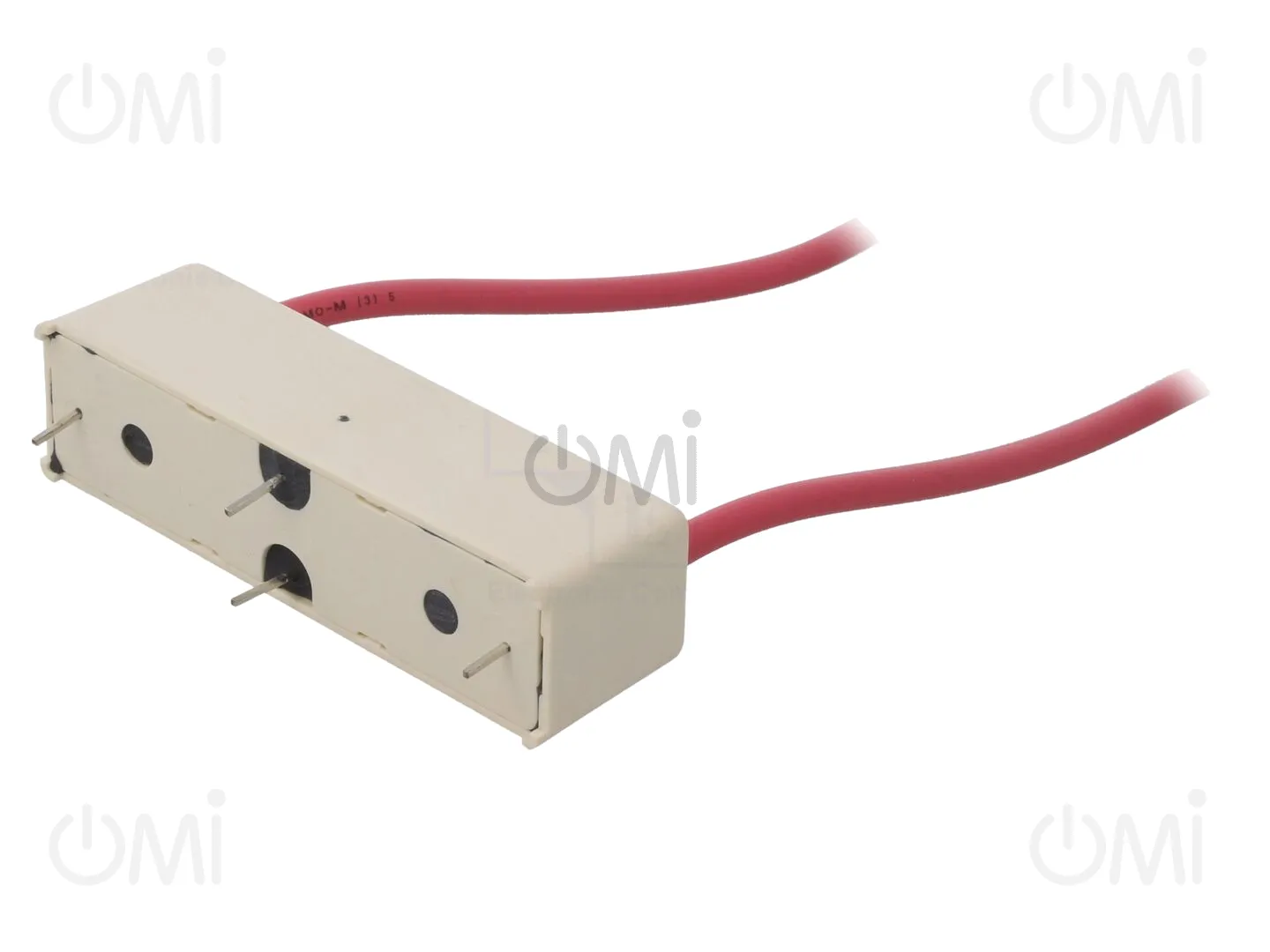

Relay: reed switch; SPST-NO; Ucoil: 24VDC; 2A; max.7kVDC; max.7kVAC

Manufacturer code: DAT72415F

OMI code: 144933

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

0 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 81.69

Price details
DAT72415F

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 81.69

This product is currently out of stock. You can enable notification of new arrivals of this product. To do this, click on the "Notify" button and fill out the form.

Specification

Show similar products –
Show similar products –
Manufacturer
SENSATA / CYNERGY3
Mounting
PCB
Operating temperature
-20...70°C
Leads
leads 300mm
Contacts configuration
SPST-NO
Body dimensions
60x18.5x15.8mm
Switched voltage
max. 7kV AC, max. 7kV DC
Type of relay
reed switch
Contact current max.
2A
Min. insulation resistance
10GΩ
Coil resistance
780Ω
Switching capacity
50W
Rated coil voltage
24V DC
Operate time
3ms
Contact resistance
250mΩ
Release time
2ms
Coil power consumption
30mW
Gross weight 33.90 g
Documentation in English #1 Documentation in English #2

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Reed Electromagnetic Relays
