DMG611R0100 LOVATO ELECTRIC

Details

DMG611R0100
  • DMG611R0100

Manufacturer product page LOVATO ELECTRIC

Meter: network parameters; on panel; digital,mounting; LCD

Manufacturer code: DMG611R0100

OMI code: 146133

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

0 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 1406.57
3+ 1388.19

Price details
DMG611R0100

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 1406.57
3+ 1388.19

This product is currently out of stock. You can enable notification of new arrivals of this product. To do this, click on the "Notify" button and fill out the form.

Specification

Show similar products –
Show similar products –
Manufacturer
LOVATO ELECTRIC
Mounting
on panel
IP rating
IP20 at terminal side, IP54 (from the front)
Supply voltage
100...440V AC, 120...250V DC
Related items
EXP8000
Cable length
2m
Maximum current
100A
Diameter
50mm
Mounting hole diameter
92x92mm
Interface
RS485, optical port
Kind of display used
LCD
Kind of network
three-phase
Standard equipment
Rogowski coil
Measuring instrument features
multilanguage menu
Type of meter
network parameters
Communictions protocol
Modbus RTU, Modbus ASCII
True effective value measurement
True RMS
Measurement
AC voltage, active power, apparent power, frequency, power factor, reactive power, energy
Kind of meter
digital, mounting
AC current measuring range
10...100A
Dimensions (W x H x D)
96x96x73.5mm
Kind of measurement
with a rogowski coil
Frequency measuring range
45...65Hz
AC voltage measuring range
50...415V
AC current measuring accuracy
±0.5%
AC voltage measuring accuracy
±0.5%
Active power measuring accuracy
±1%
Gross weight 800.00 g
Documentation in English #1 Documentation in English #2

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Power Network Meters and Analyzers

* All prices are net prices (excluding VAT) and do not include transportation costs, which will be included in the order amount. Transportation costs are available in the tab "Method and cost of delivery"

Last viewed items

3RV2011-1JA10

3RV2011-1JA10

Manufacturer: SIEMENS

Motor breaker; 4kW; 220÷690VAC; for DIN rail mounting; Size: S00

In stock:

0 pcs

Price details
3RV2011-1JA10

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 55.82

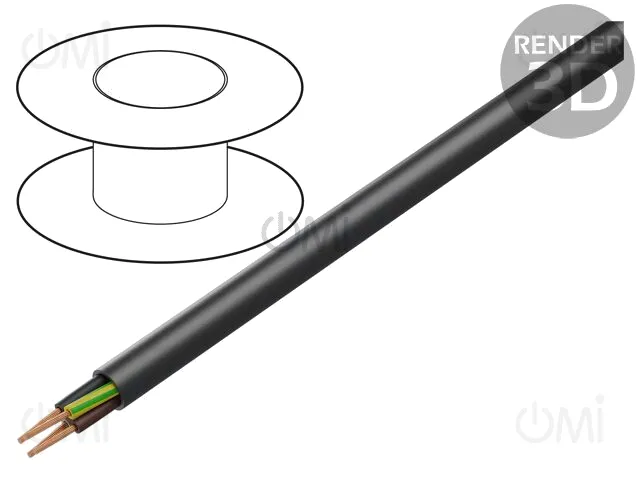

3500831
