MW3518 SEFRAM

Details

MW3518
  • MW3518

Manufacturer product page SEFRAM

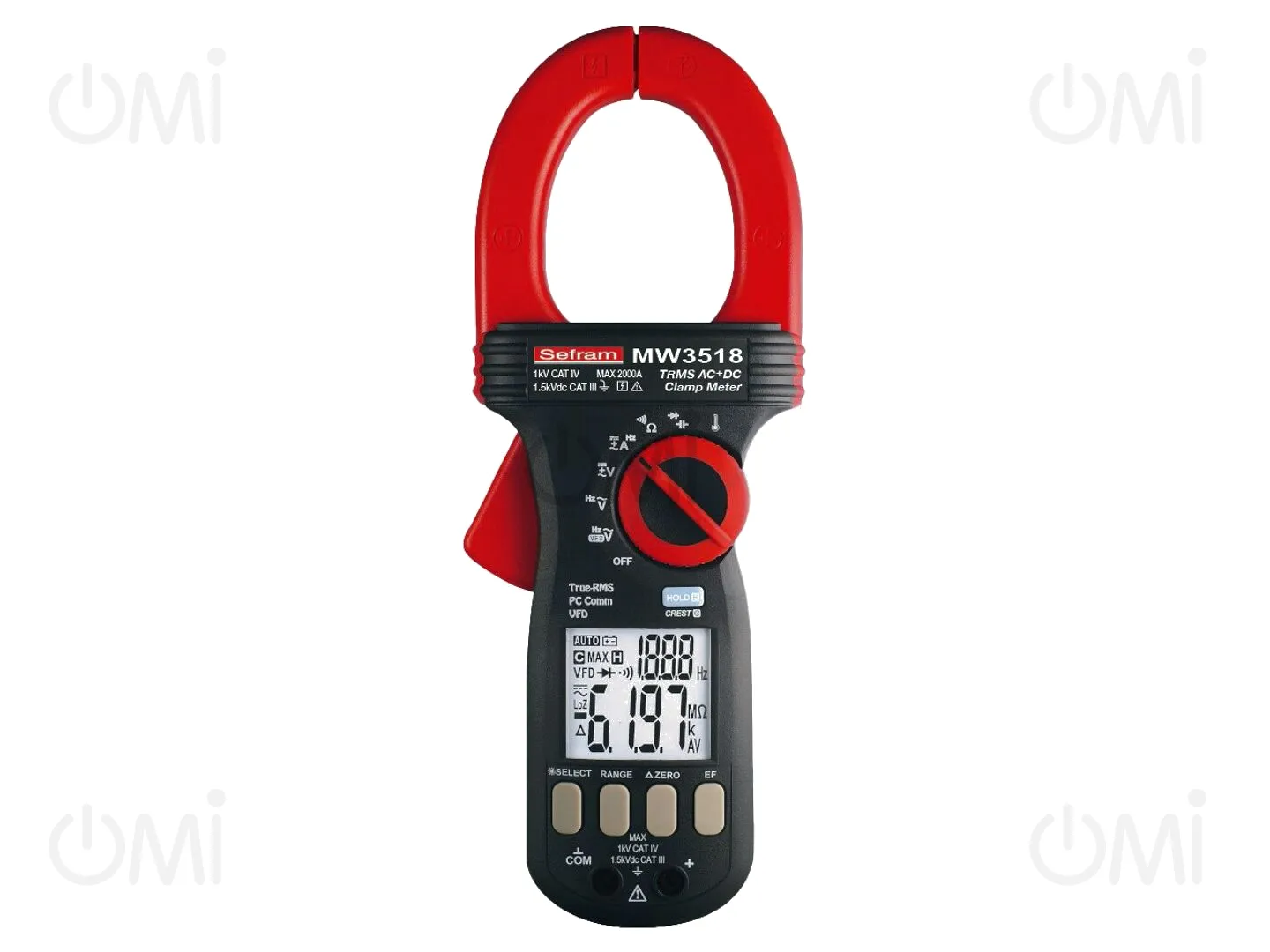

Meter: multifunction; digital,pincers type; LCD; (6000); 55mm

Manufacturer code: MW3518

OMI code: 146975

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

2 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 323.73

Price details
MW3518

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 323.73

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
SEFRAM
Conform to the norm
EN 61010, CAT IV 1000V, CAT III 1500V
Dimensions
264x97x43mm
Kind of display used
LCD
Illumination
yes
Power supply
battery LR6 AA 1,5V x2
Standard equipment
test leads, user's manual, case, K-type thermocouple
Measuring instrument features
automatic power-off, contactless voltage detector, HOLD function, autoranging
Max jaw capacity
55mm
Display parameters
(6000)
Type of meter
multifunction
Temperature measuring range
-50...1000°C
True effective value measurement
True RMS AC+DC
Measurement
AC current, DC current, DC voltage, resistance, temperature, AC voltage, frequency, capacitance, continuity
Battery/ rechargeable battery
battery LR6 AA 1,5V x2
Kind of meter
digital, pincers type
AC current measuring range
0...2kA
Continuity test
acoustic indication, 10Ω...200Ω
Frequency measuring range
40...1999Hz
Measuring instruments application
photovoltaics, photovoltaic cell
Sampling
5x/s
Resistance measuring range
6kΩ, 40MΩ, 60kΩ, 6MΩ, 600Ω, 600kΩ
DC current measuring range
0...2kA
DC voltage measuring range
1kV, 600V, 6V, 60V
AC voltage measuring range
600V, 1kV, 6V, 60V
AC current measuring accuracy
±(2% + 5 digit)
DC voltage measuring accuracy
±(0.5% + 5 digit)
Capacitance measuring range
60nF, 600µF, 600nF, 6µF, 60µF, 2mF
DC current measuring accuracy
±(2% + 5 digit)
Diode test
1V
AC voltage measuring accuracy
±(1.2% + 3 digit)
Resistance measuring accuracy
±(0.5%+5 digit)
Frequency measuring accuracy
±(0.1%+4 digit)
Capacitance measuring accuracy
±(2%+ 5 digit)
Bandwidth for AC voltage measurements
50...400Hz
Bandwidth for AC current measurements
40...400Hz
Gross weight 928.20 g
Documentation in English #1 Documentation in English #2
