TAO3072 OWON

Details

TAO3072
  • TAO3072

Manufacturer product page OWON

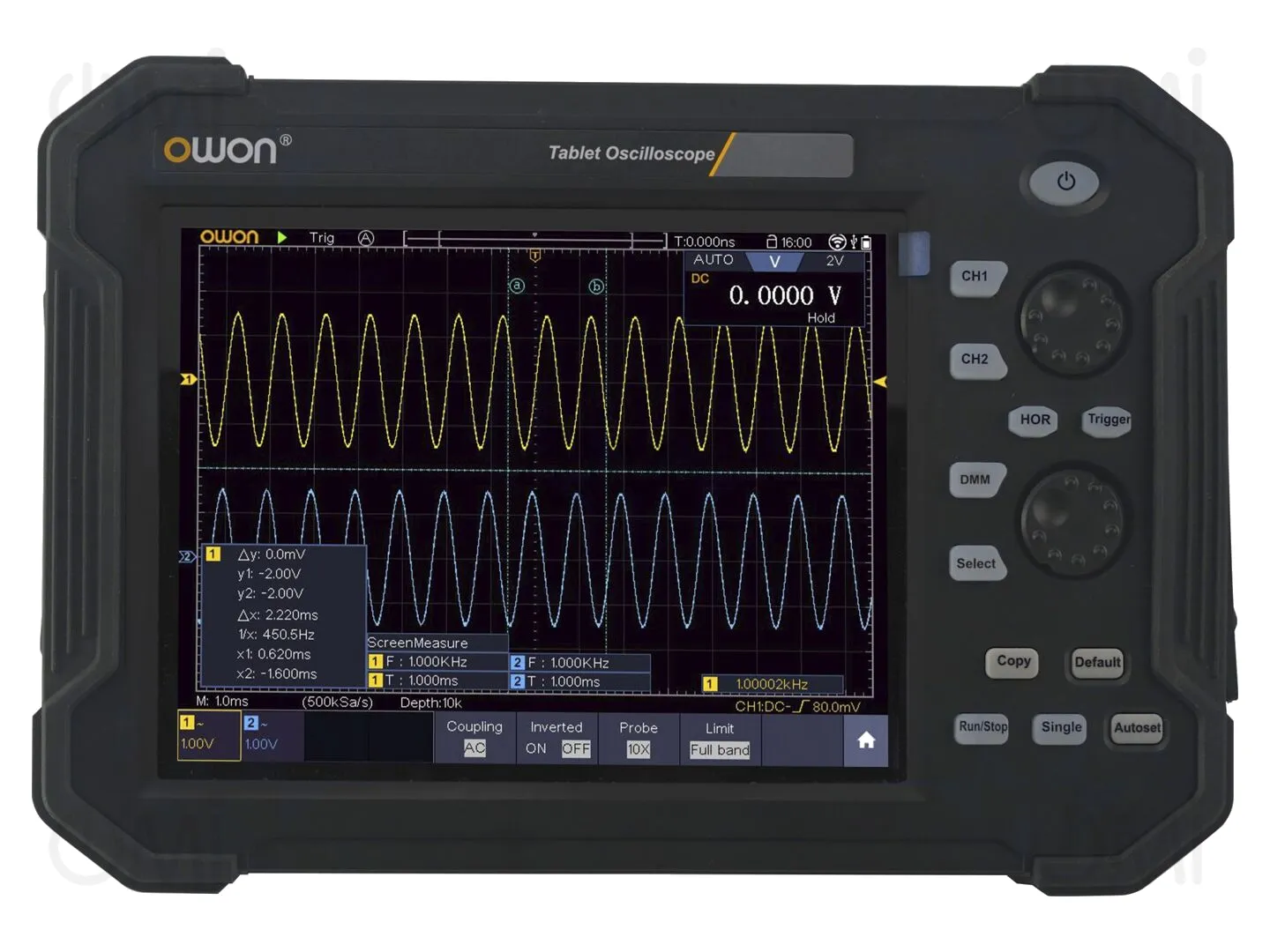

Handheld oscilloscope; 70MHz; LCD TFT 8"; Ch: 2; 1Gsps; 40Mpts

Manufacturer code: TAO3072

OMI code: 1546

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

10 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 485.04

Price details
TAO3072

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 485.04

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
OWON
Manufacturer series
TAO3000
Dimensions
270x191x48mm
Interface
SPI, CAN, I2C, RS232
Number of channels
2
Kind of display used
LCD TFT 8"
Power supply
rechargeable battery Li-Ion 7,4V 8000mAh x1
Additional functions
multimeter
Standard equipment
mounting holder, mains cable, test leads ( 2pcs.), BNC adapter, adapter AC, oscilloscope probe x2, USB micro cable, extension module, probe adjust
Measuring instrument features
mathematical functions: addition, subtraction, division, multiplication and FFT, data logger function, advenced trigger and bus decoding function
Input impedance
1MΩ/15pF
Display resolution
800x600
Measurement memory
100
Plug variant
EU
Touchpad
yes
Software
LabVIEW
Sampling
1Gsps
Band
70MHz
Trigger
rising-edge, falling-edge, video signal, runt, pulse, slope, window, SPI, CAN, I2C, timeout, pattern width, RS232/UART, serial protocol
Type of oscilloscope
handheld oscilloscope
Input coupling
AC, DC, GND
Vertical resolution
8bit
Trigger modes
automatic, normal, single
Rise time
≤5ns
Input sensitivity
1mV/div...10V/div
Time base
1n...1ks/div
Memory record length
40Mpts
Trigger source
CH1, CH2
Gross weight 2564.70 g
Documentation in English #1 Documentation in English #2 Documentation in English #3

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.
