09180207001900 HARTING

Details

09180207001900
  • 09180207001900

Manufacturer product page HARTING

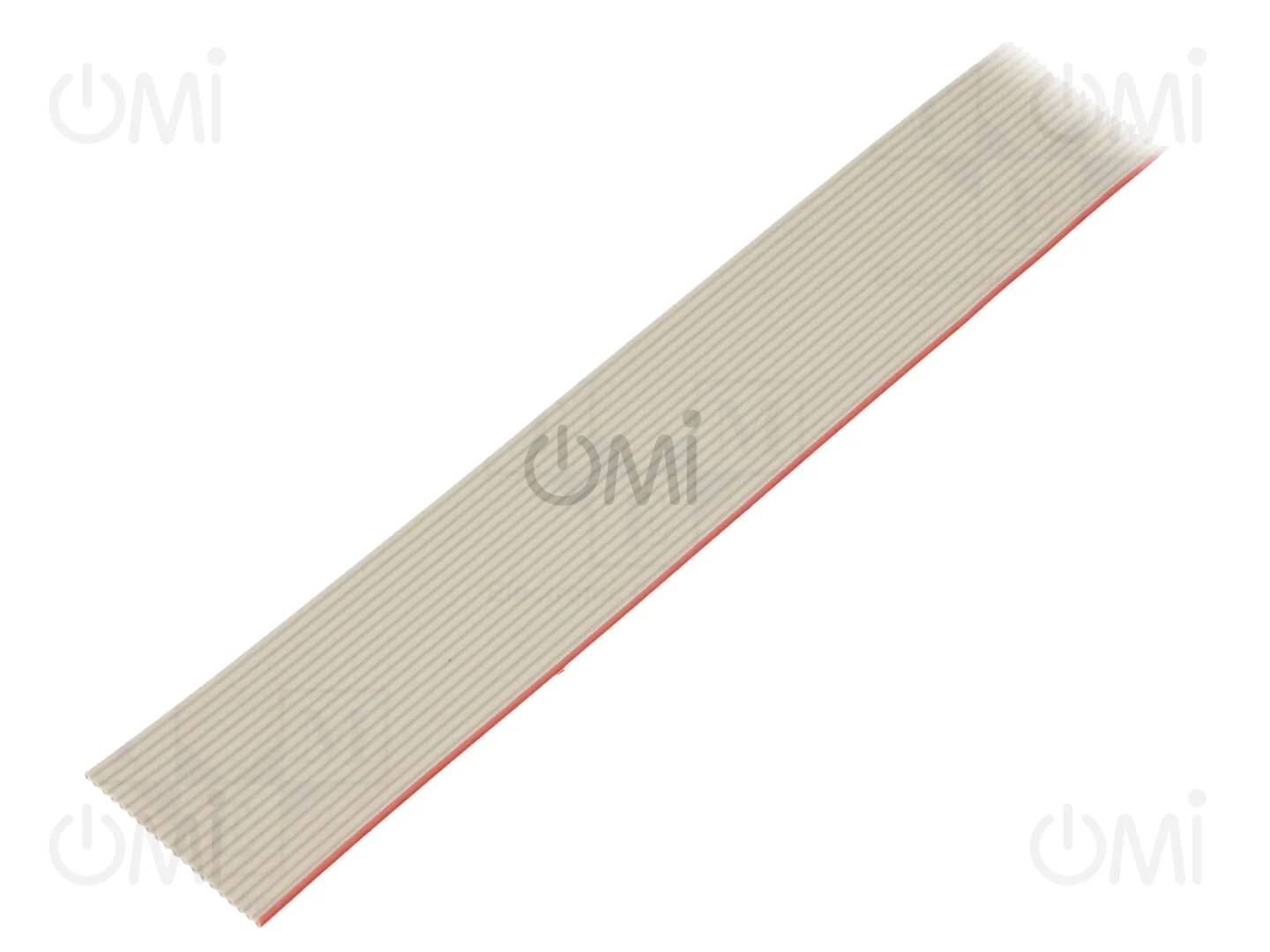

Wire: ribbon; 1.27mm; stranded; Cu; unshielded; PO; grey; 30.5m

Manufacturer code: 09180207001900

OMI code: 15817

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

0 rol

Qty.
[rol] 		Price
[EUR/rol]
1+ 231.34

Price details
09180207001900

Qty.
[rol] 		Price
[EUR/rol]
1+ 231.34

This product is currently out of stock. You can enable notification of new arrivals of this product. To do this, click on the "Notify" button and fill out the form.

Specification

Show similar products –
Show similar products –
Manufacturer
HARTING
Operating temperature
-20...105°C
Conform to the norm
UL 1581, UL 21151
Wire insulation material
PO
Type of wire
ribbon
Number of cores
20
Insulation colour
grey
A dimension
25.06mm
Kind of material
halogen free
Ribbon cable pitch
1.27mm
Kind of core
Cu, tinned
Shield structure
unshielded
Rated voltage
300V
Package contents
30.5m
Core diameter
28AWG
Core structure
stranded
B dimension
24.13mm
Cable structure
20x28AWG
Gross weight 1384.00 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Ribbon Cables - Single Color
