132117 AMPHENOL RF

Details

132117
  • 132117

Manufacturer product page AMPHENOL RF

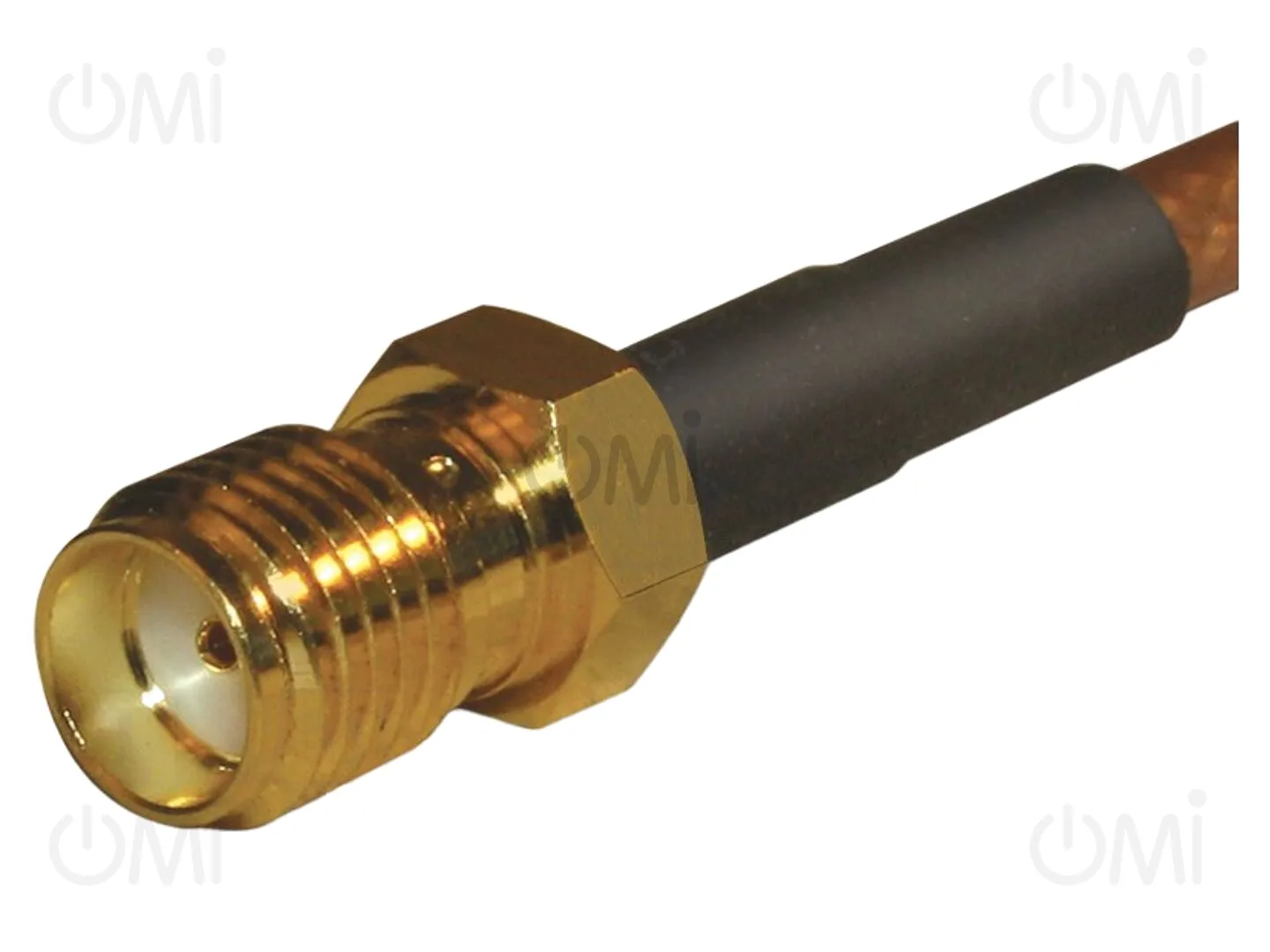

Plug; SMA; female; straight; 50Ω; soldering,crimped; for cable

Manufacturer code: 132117

OMI code: 161976

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

0 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
100+ 6.46

Price details
132117

Qty.
[pcs] 		Price
[EUR/pcs]
100+ 6.46

This product is currently out of stock. You can enable notification of new arrivals of this product. To do this, click on the "Notify" button and fill out the form.

Specification

Show similar products –
Show similar products –
Manufacturer
AMPHENOL RF
Operating temperature
-65...165°C
Contact plating
gold-plated
Body material
brass
Mechanical durability
500 cycles
Kind of connector
female
Contact material
beryllium copper
Body plating
gold
Insulator material
PTFE
Connector
plug
Electrical mounting
crimped, soldering
Mechanical mounting
for cable
Type of connector
SMA
Spatial orientation
straight
Wave impedance
50Ω
Max. frequency
12.4GHz
Kind of cable
Belden 7805A, Belden 8216, Belden 83269, Belden 83284, Belden 84316, Leoni DACAR 462, Leoni DACAR 462-2, RG174, RG188, RG316, Shikoku 1.5DS-QFB-TA, Sumitomo 1.5DS-GXC-SP, Times LMR-100A, Times RG-174LL
Gross weight 3.00 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: SMA, SMB, SMC connectors
