MA05L1NCGD C&K

Details

MA05L1NCGD
MA05L1NCGD
MA05L1NCGD
MA05L1NCGD
MA05L1NCGD
MA05L1NCGD
MA05L1NCGD
MA05L1NCGD
MA05L1NCGD
  • MA05L1NCGD
  • MA05L1NCGD
  • MA05L1NCGD
  • MA05L1NCGD
  • MA05L1NCGD
  • MA05L1NCGD
  • MA05L1NCGD
  • MA05L1NCGD
  • MA05L1NCGD

Manufacturer product page C&K

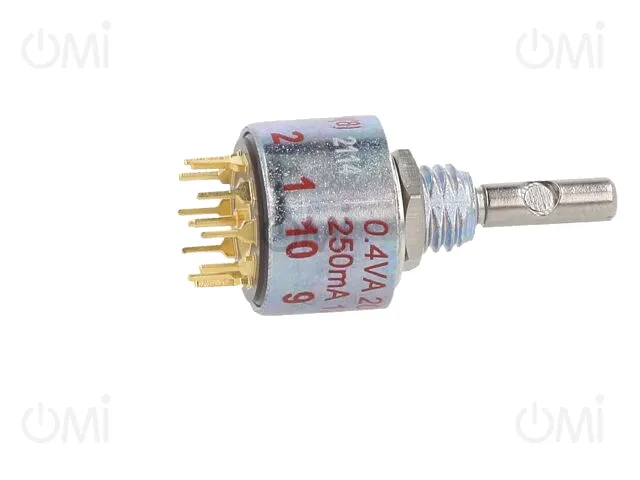

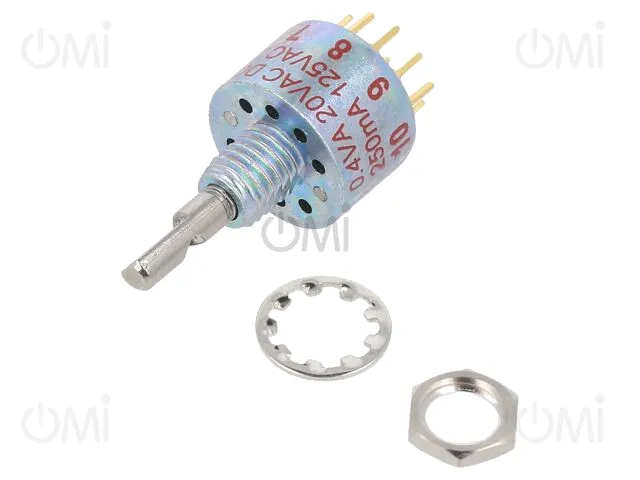

Switch: rotary; Pos: 5; 0.25A/125VAC; 0.25A/28VDC; Poles number: 1

Manufacturer code: MA05L1NCGD

OMI code: 162069

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

27 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 23.78
2+ 22.51

Price details
MA05L1NCGD

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 23.78
2+ 22.51

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
C&K
Mounting
THT
Type of switch
rotary
Operating temperature
-30...85°C
Leads
for PCB
Body dimensions
Ø13.34x9.4mm
Manufacturer series
M
Contact plating
nickel plated, gold-plated, silver plated
Electrical life
10000 cycles
Contact material
copper
AC contacts rating @R
0.25A / 125V AC
Number of positions
5
DC contacts rating @R
0.25A / 28V DC
Max. contact resistance:
20mΩ
Min. insulation resistance
10GΩ
Poles number
1
Fastening thread
1/4"-28UNF-2A
Shaft diameter
3.17mm
Shaft length
10.16mm
Shaft surface
D spring
Indexed positions
36°
Gross weight 8.60 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.
