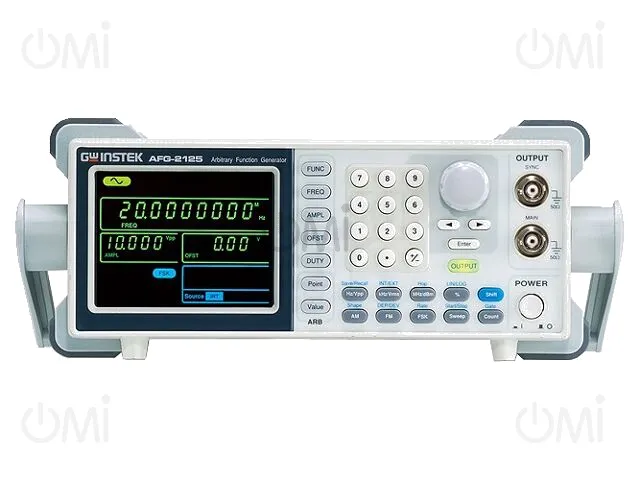

AFG-2125 GW INSTEK

Details

AFG-2125
  • AFG-2125

Manufacturer product page GW INSTEK

Generator: arbitrary, function; LCD 3,5"; Ch: 1; f range: 5÷150MHz

Manufacturer code: AFG-2125

OMI code: 16332

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

2 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 413.28

Price details
AFG-2125

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 413.28

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
GW INSTEK
Supply voltage
100...240V AC
Dimensions
266x107x293mm
Interface
USB
Number of channels
1
Kind of display used
LCD 3,5"
Additional functions
frequency meter
Standard equipment
test leads, user's manual, mains cable
Measuring instrument features
10 sets memory
Measurement
frequency
Type of generator
arbitrary, function
Plug variant
EU
Frequency measuring range
5...150MHz
Software
LabVIEW
Sampling
20Msps
Vertical resolution
10bit
Memory record length
4kpts/ch
Maximum waveform frequency
25MHz
Waveform frequency range
0,1Hz...1MHz (triangle waveform), 0,1Hz...25MHz (rectangular waveform), 0,1Hz...25MHz (sinus waveform)
Output parameters
impedance: 50Ω
Kind of modulation
AM, FM, FSK
Waveforms
arbitrary, rectangular, sinus, triangle, noise
Gross weight 3471.30 g
Documentation in English #1 Documentation in English #2 Documentation in English #3 Documentation in English #4

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Generators and Frequency Meters
