NHD-0420DZW-AB5 NEWHAVEN DISPLAY INTERNATIONAL

Details

NHD-0420DZW-AB5
  • NHD-0420DZW-AB5

Manufacturer product page NEWHAVEN DISPLAY INTERNATIONAL

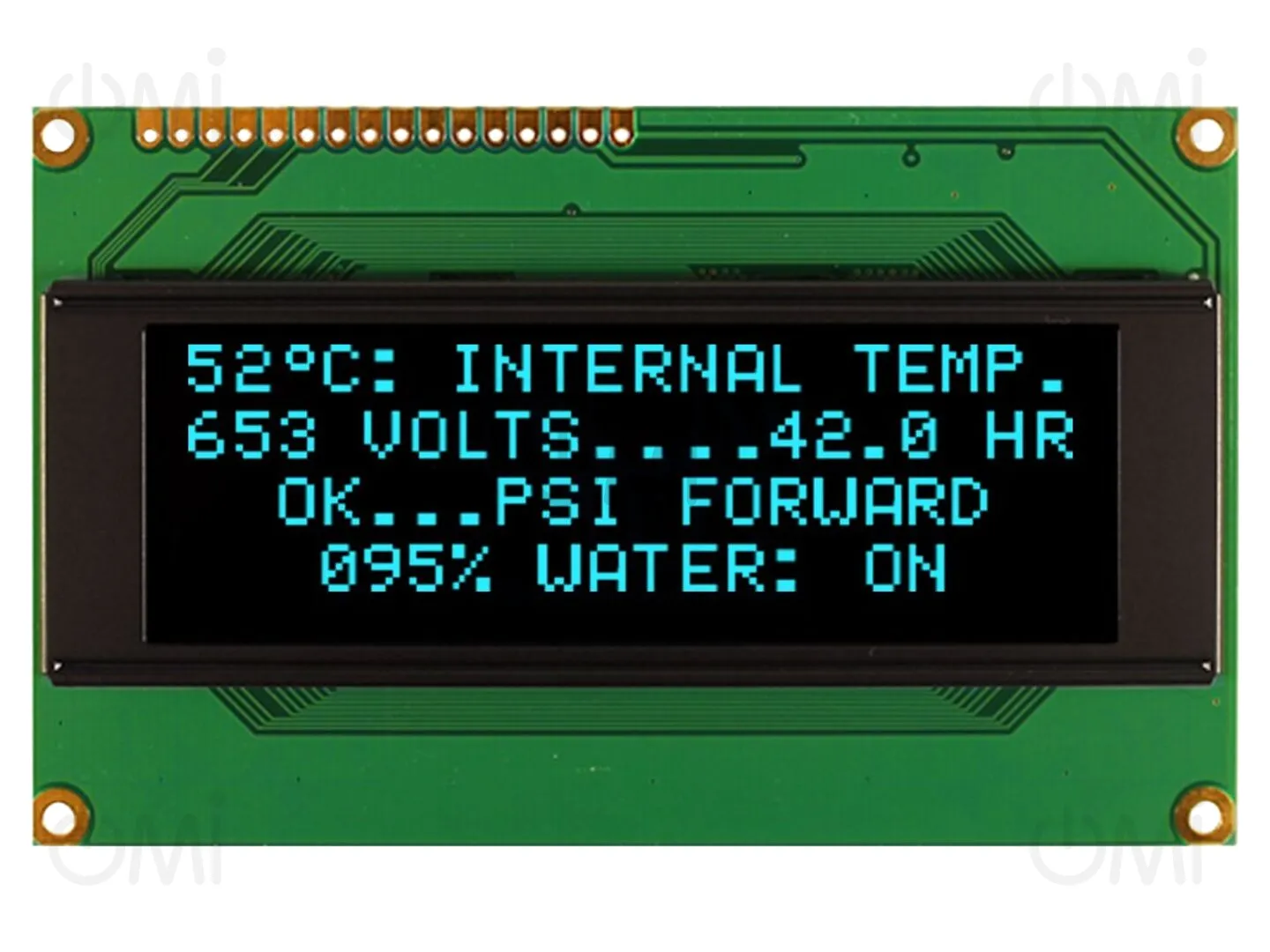

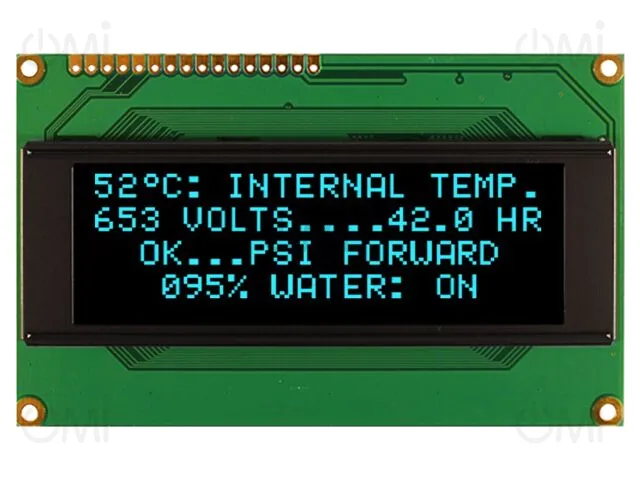

Display: OLED; alphanumeric; 20x4; Dim: 98x60x10mm; blue; PIN: 16

Manufacturer code: NHD-0420DZW-AB5

OMI code: 16387

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

10 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 50.3

Price details
NHD-0420DZW-AB5

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 50.3

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
NEWHAVEN DISPLAY INTERNATIONAL
Operating temperature
-40...80°C
Number of pins
16
Supply voltage
5V DC
Connector pinout layout
1x16
Colour
blue
Dimensions
98x60x10mm
Interface
serial, parallel, 6800
Contacts pitch
2.54mm
Kind of display
alphanumeric
Digit height
4.75mm
Type of display
OLED
Character width
2.9mm
Window dimensions (H x W)
77x25.2mm
Number of characters (columns x lines)
20x4
Contrast
10000:1
Display features
wide viewing angle
Gross weight 41.20 g
Documentation in English #1 Documentation in English #2

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Alphanumeric OLED displays
