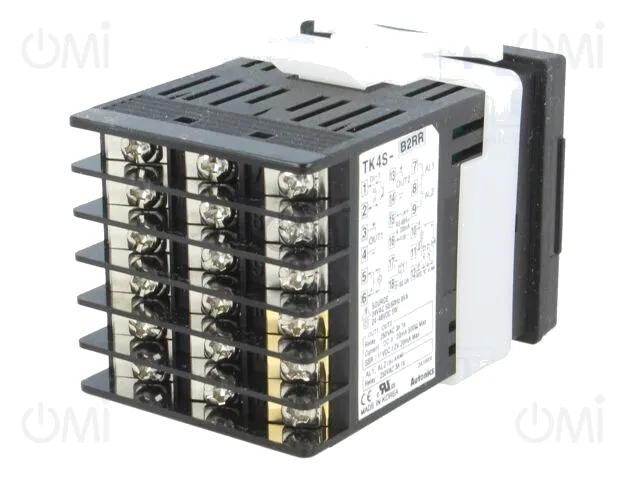

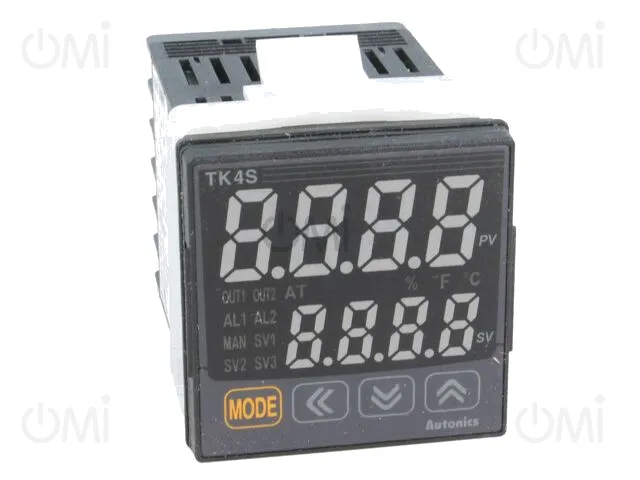

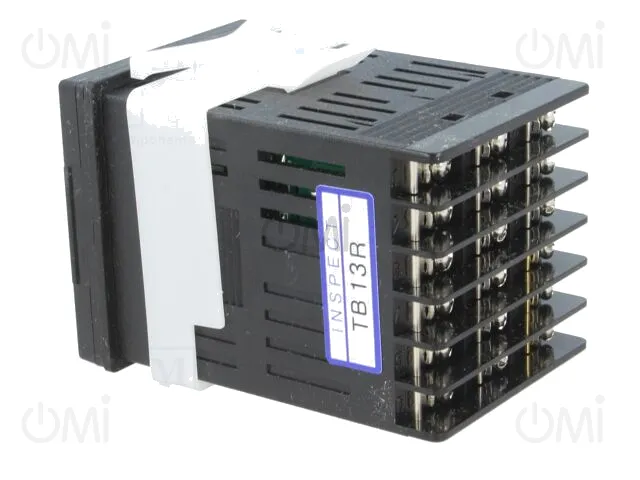

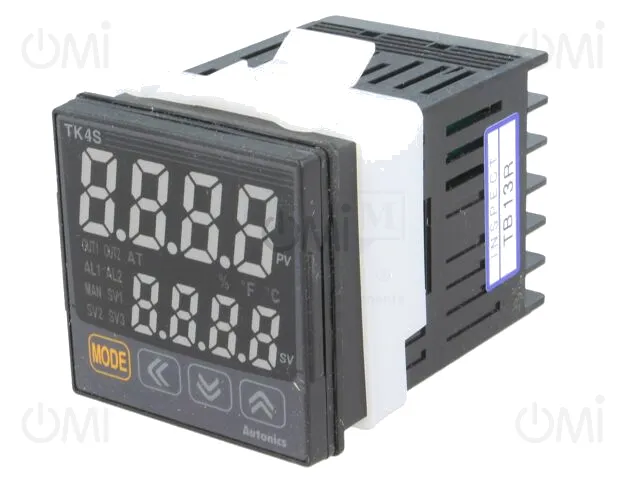

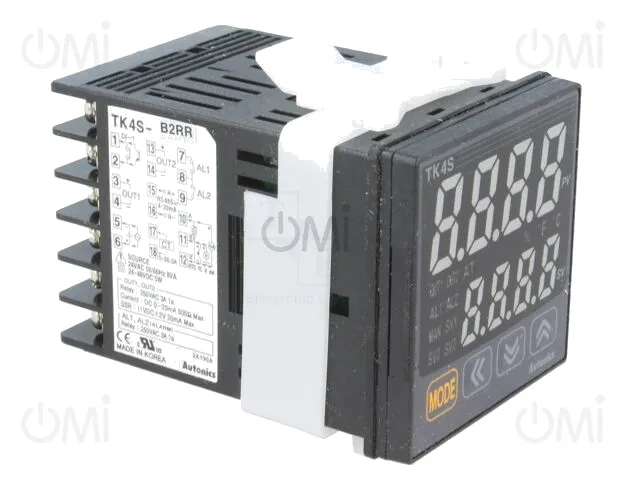

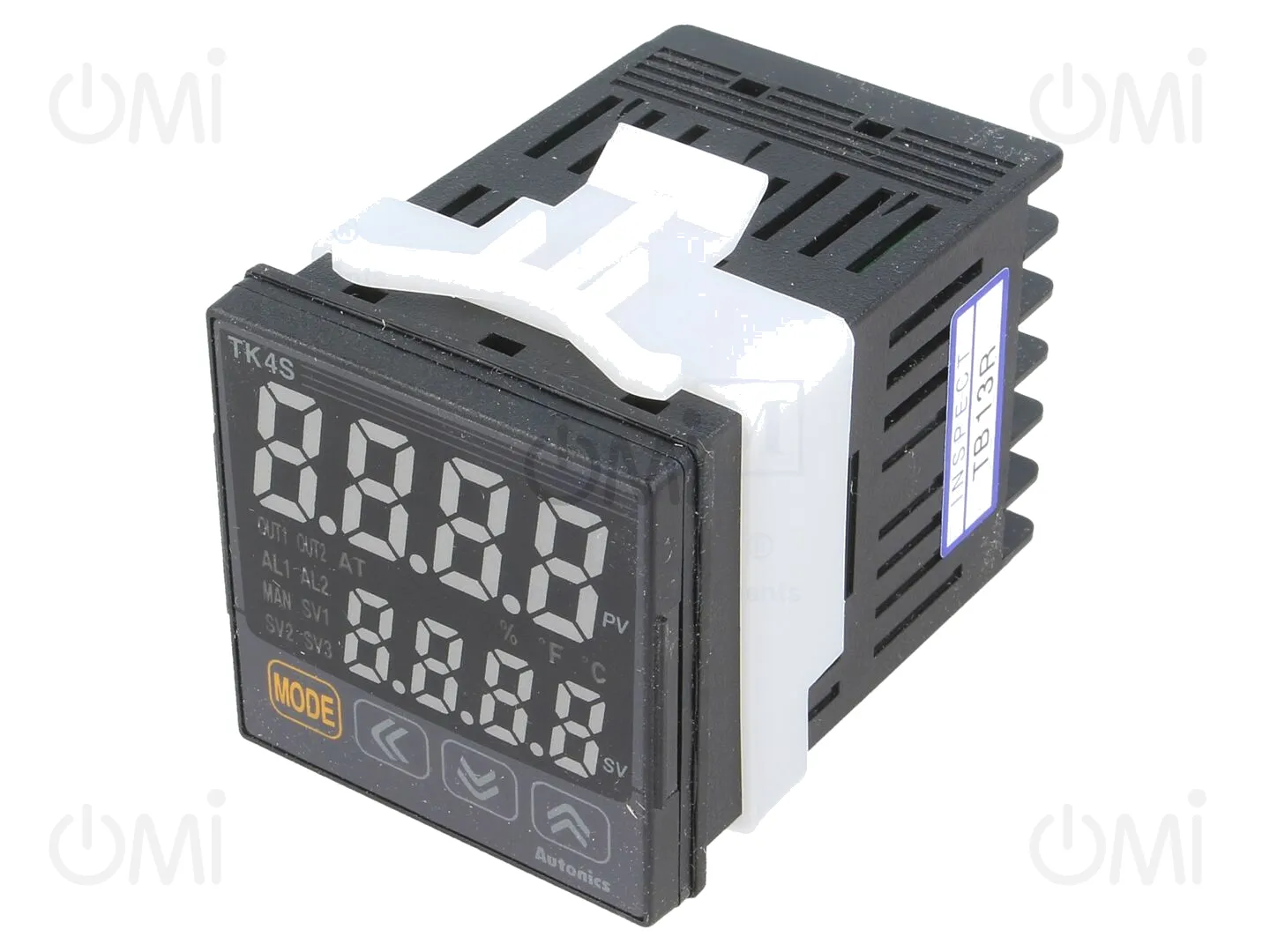

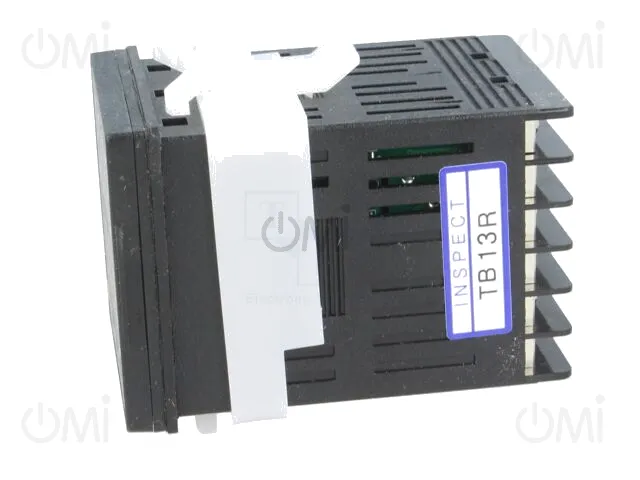

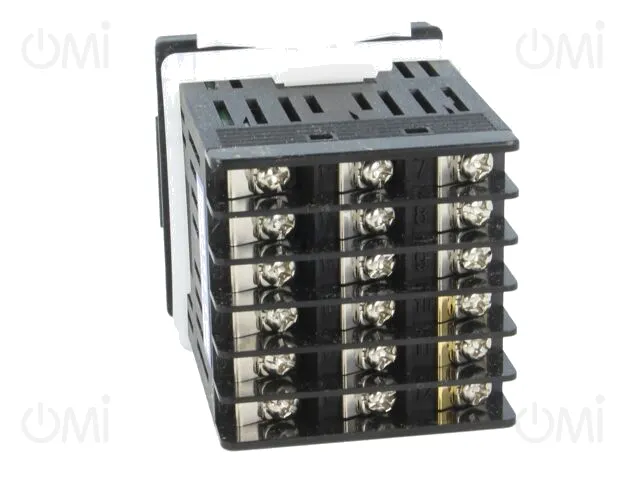

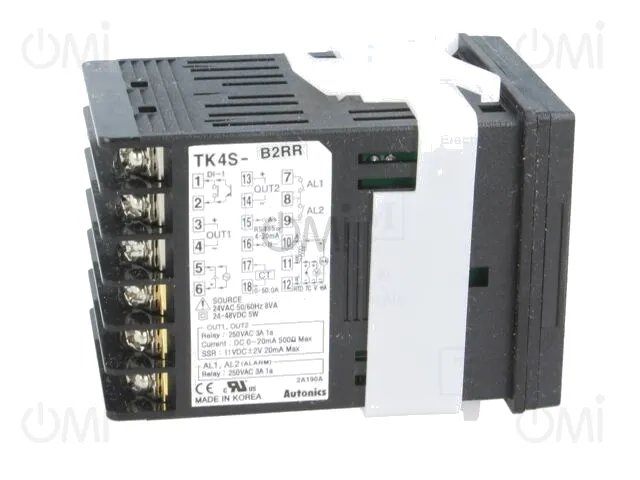

TK4S-B2RR AUTONICS

Details

TK4S-B2RR
TK4S-B2RR
TK4S-B2RR
TK4S-B2RR
TK4S-B2RR
TK4S-B2RR
TK4S-B2RR
TK4S-B2RR
TK4S-B2RR
  • TK4S-B2RR
  • TK4S-B2RR
  • TK4S-B2RR
  • TK4S-B2RR
  • TK4S-B2RR
  • TK4S-B2RR
  • TK4S-B2RR
  • TK4S-B2RR
  • TK4S-B2RR

Manufacturer product page AUTONICS

Module: regulator; temperature; SPST-NO; OUT 2: SPST-NO; on panel

Manufacturer code: TK4S-B2RR

OMI code: 164400

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

7 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 68.79

Price details
TK4S-B2RR

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 68.79

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
AUTONICS
Mounting
on panel
Operating temperature
-10...50°C
IP rating
IP65
Manufacturer series
TK4S
Supply voltage
24V AC, 24...48V DC
Body dimensions
48x48x70.5mm
Mounting hole diameter
45x45mm
Type of module
regulator
Kind of display used
LED x2
Kind of output 1
SPST-NO
The programming method
foil keypad
Additional functions
RS485 communication output, two alarm outputs
Controlled parameter
temperature
Kind of temperature sensor
Cu50, Cu100, JPt100, Ni120, Pt50, Pt100, thermocouple B, thermocouple C, thermocouple E, thermocouple G, thermocouple J, thermocouple K, thermocouple L, thermocouple N, thermocouple PLII, thermocouple R, thermocouple S, thermocouple T, thermocouple U
Regulation for output 1
ON-OFF, P, PD, PI, PID
Output 1 electrical parameters
250V AC / 3A
Controlled parameter range
-1999...9999
Kind of input 1
0...5V, 0...10V, 0...20mA, 0...100mV, 4...20mA, universal
Input 1 properties
analogue voltage, current analog, RTD, thermocouple
Display height 1
14mm
Display 2 height
10mm
Kind of output 2
SPST-NO
Kind of output 3
alarm
Output 2 electrical parameters
250V AC / 3A
Output 3 electrical parameters
250V AC / 3A
Kind of output 4
alarm
Output 4 electrical parameters
250V AC / 3A
Gross weight 159.30 g
Documentation in English #1 Documentation in English #2 Documentation in English #3

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Temperature Regulators
