ORG4600-B01 OriginGPS

Details

ORG4600-B01
  • ORG4600-B01

Manufacturer product page OriginGPS

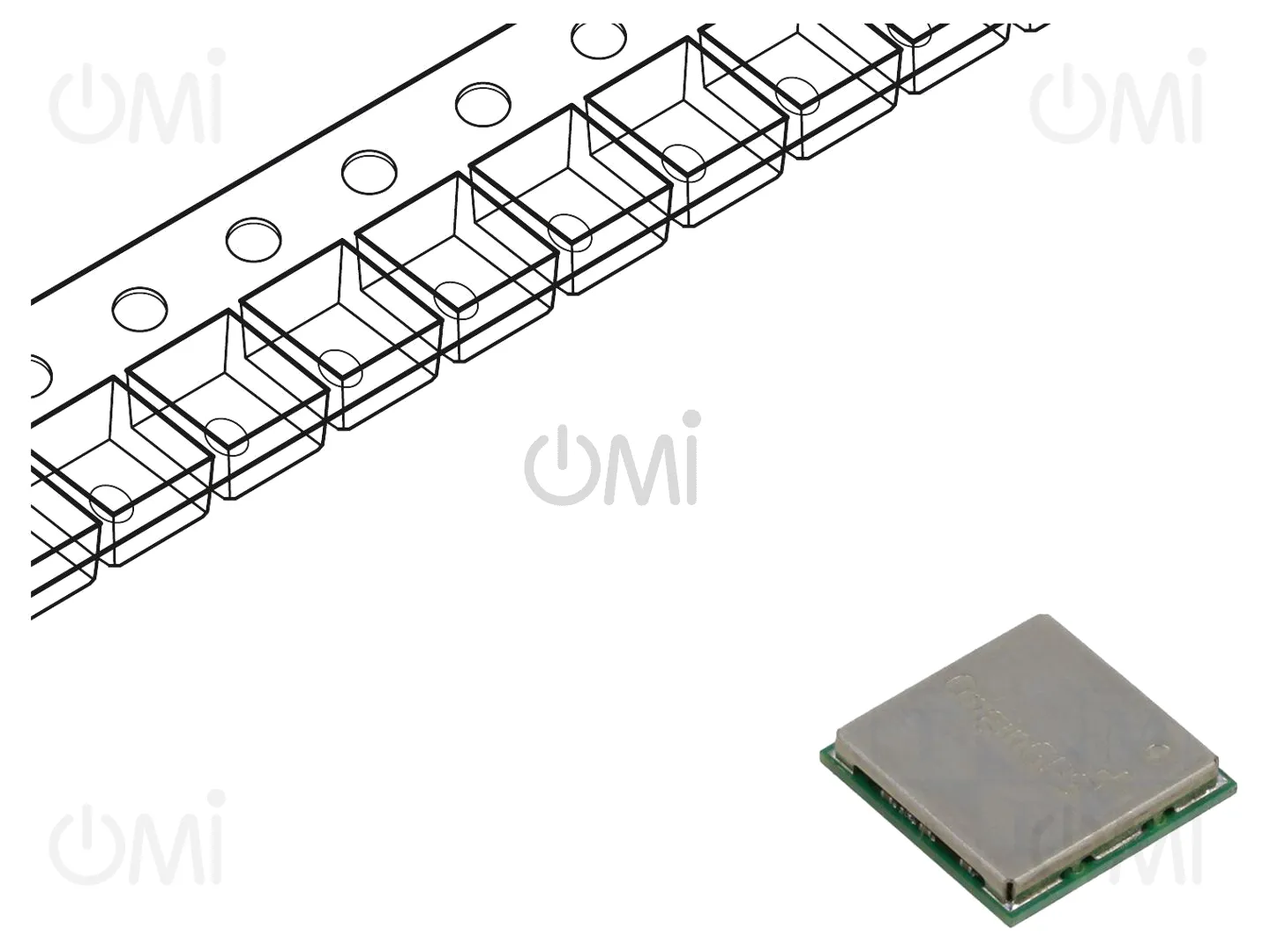

Module: GPS; ±2.5m; NMEA; uP: BCM47758; -167dBm; GPIO,I2C,UART; SMD

Manufacturer code: ORG4600-B01

OMI code: 167371

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

82 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 64.01
25+ 60.79
100+ 60.39

Price details
ORG4600-B01

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 64.01
25+ 60.79
100+ 60.39

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
OriginGPS
Mounting
SMD
Operating temperature
-40...85°C
Manufacturer series
Spider
Supply voltage
2...5.5V
Dimensions
10x10mm
Interface
I2C, UART, GPIO
Type of communications module
GPS
Communictions protocol
NMEA
Receiver sensitivity
-167dBm
Processor
BCM47758
Position determination accuracy
±2.5m
GPS features
Galileo, GLONASS, A-GPS, QZSS
Gross weight 0.43 g
Documentation in English #1 Documentation in English #2
