SLS16Y2_792C_512R_SD_1WB_C SOMLABS

Details

SLS16Y2_792C_512R_SD_1WB_C
  • SLS16Y2_792C_512R_SD_1WB_C

Manufacturer product page SOMLABS

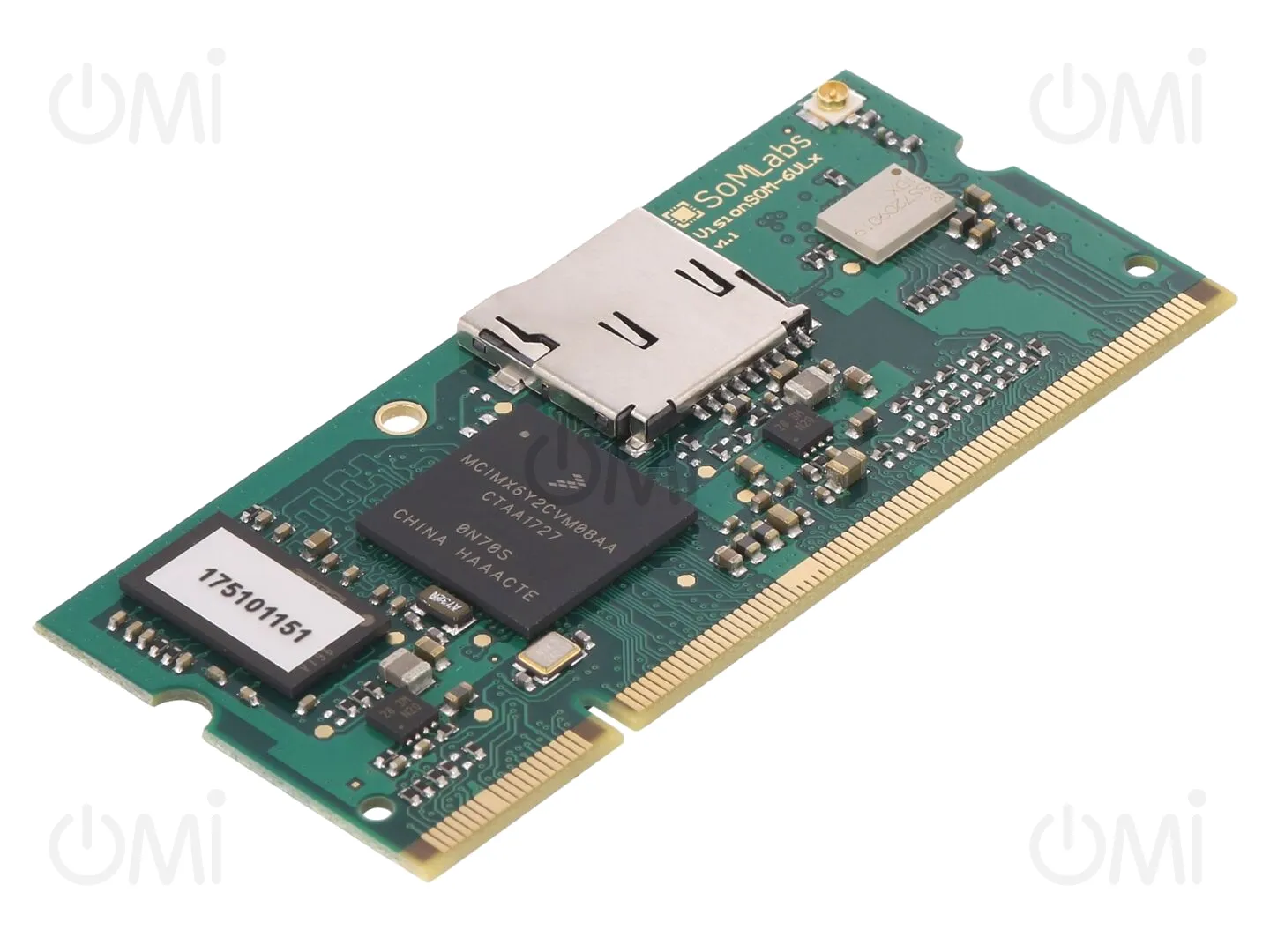

Module: SOM; i.MX6ULL; 67x32x4mm; 4÷5.5VDC; DDR3L; 512MBRAM; 0÷70°C

Manufacturer code: SLS16Y2_792C_512R_SD_1WB_C

OMI code: 168175

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

0 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 76.11

Price details
SLS16Y2_792C_512R_SD_1WB_C

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 76.11

This product is currently out of stock. You can enable notification of new arrivals of this product. To do this, click on the "Notify" button and fill out the form.

Specification

Show similar products –
Show similar products –
Manufacturer
SOMLABS
Operating temperature
0...70°C
Supply voltage
4...5.5V DC
Related items
1473005-4, SDSQUNS-016G-GN3MN, TRF1001
Kind of connector
microSD, SO DIMM 200
Size
SODIMM
Trade name
VisionSOM
Dimensions
67x32x4mm
Interface
I2C x4, CAN x2, SPI x4, WiFi, 24bit RGB, I2S x3, USB OTG x2, SPDIF, Ethernet x2, UART x8
Operating frequency
792MHz
Kind of memory
DDR3L
Type of module
SOM
Programmers and development kits features
2D Accelerator
Family
VisionSOM-6ULL
Associated circuits
VisionCB-STD
Memory
512MB RAM
Kind of architecture
Cortex A7
Communictions protocol
IEEE 802.11b/g/n, Bluetooth Low Energy
Number of cores
1
Processor
i.MX6ULL
Gross weight 6.96 g
Documentation in English #1 Documentation in English #2

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Single board computers
