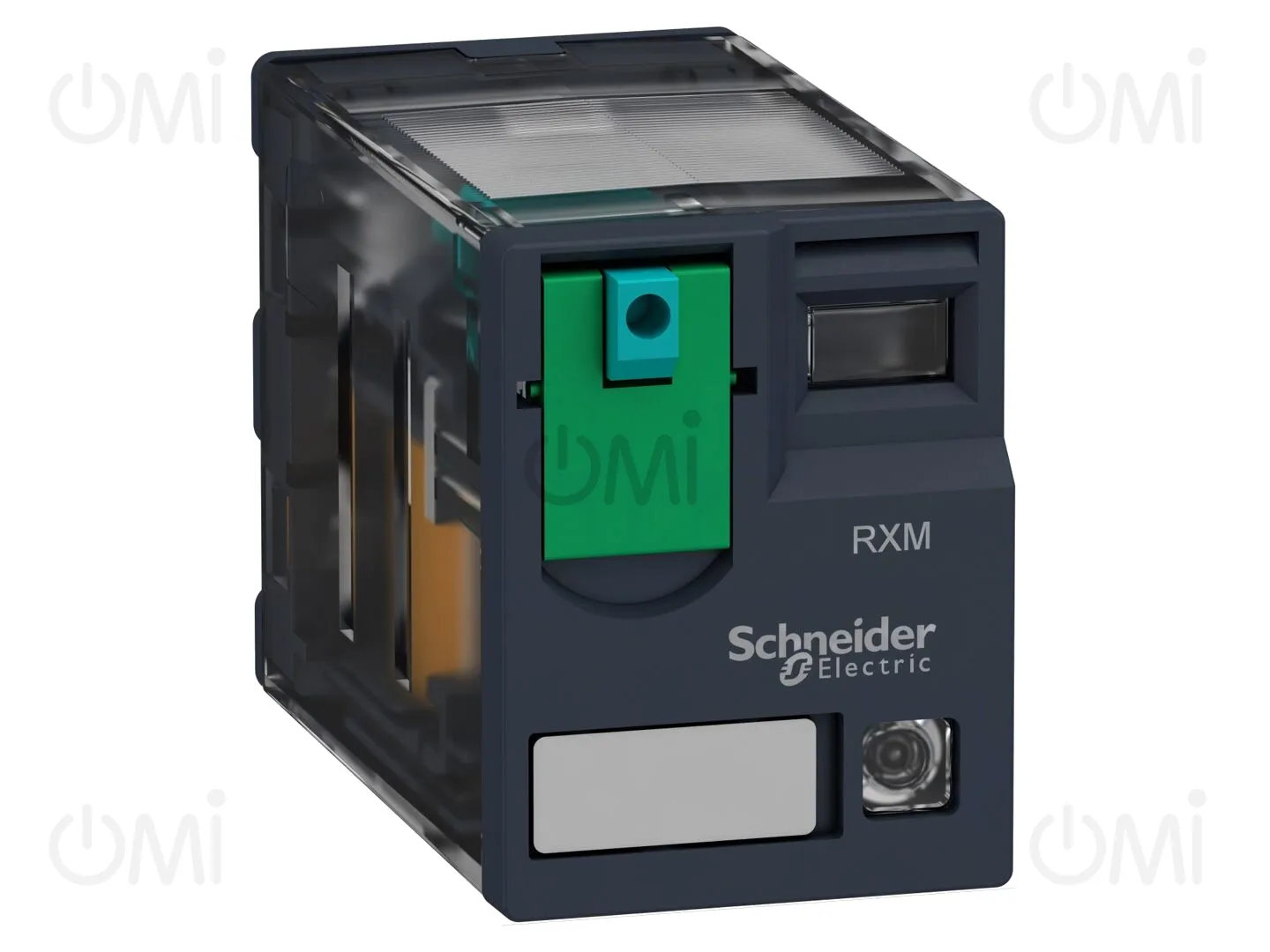

RXM2AB2JD SCHNEIDER ELECTRIC

Details

RXM2AB2JD
  • RXM2AB2JD

Manufacturer product page SCHNEIDER ELECTRIC

Relay: electromagnetic; DPDT; Ucoil: 12VDC; Icontacts max: 12A

Manufacturer code: RXM2AB2JD

OMI code: 170946

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

0 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 13.49
2+ 11.12
4+ 10.53
20+ 10.51

Price details
RXM2AB2JD

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 13.49
2+ 11.12
4+ 10.53
20+ 10.51

This product is currently out of stock. You can enable notification of new arrivals of this product. To do this, click on the "Notify" button and fill out the form.

Specification

Show similar products –
Show similar products –
Manufacturer
SCHNEIDER ELECTRIC
Mounting
socket
Operating temperature
-40...55°C
Manufacturer series
Zelio Relay
Related items
RXZE2S114M, RXZE14P
Contacts configuration
DPDT
Body dimensions
40x27x21mm
Switched voltage
max. 250V AC, max. 28V DC
AC contacts rating @R
12A / 250V AC
DC contacts rating @R
12A / 28V DC
Type of relay
electromagnetic
Contact current max.
12A
Relay variant
industrial
Relay series
RXM
Rated coil voltage
12V DC
Contact resistance
100mΩ
Coil power consumption
0.9W
Gross weight 32.00 g

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Industrial Electromagnetic Relays
