3517/34SF (100FT) 3M

Details

3517/34SF (100FT)
  • 3517/34SF (100FT)

Manufacturer product page 3M

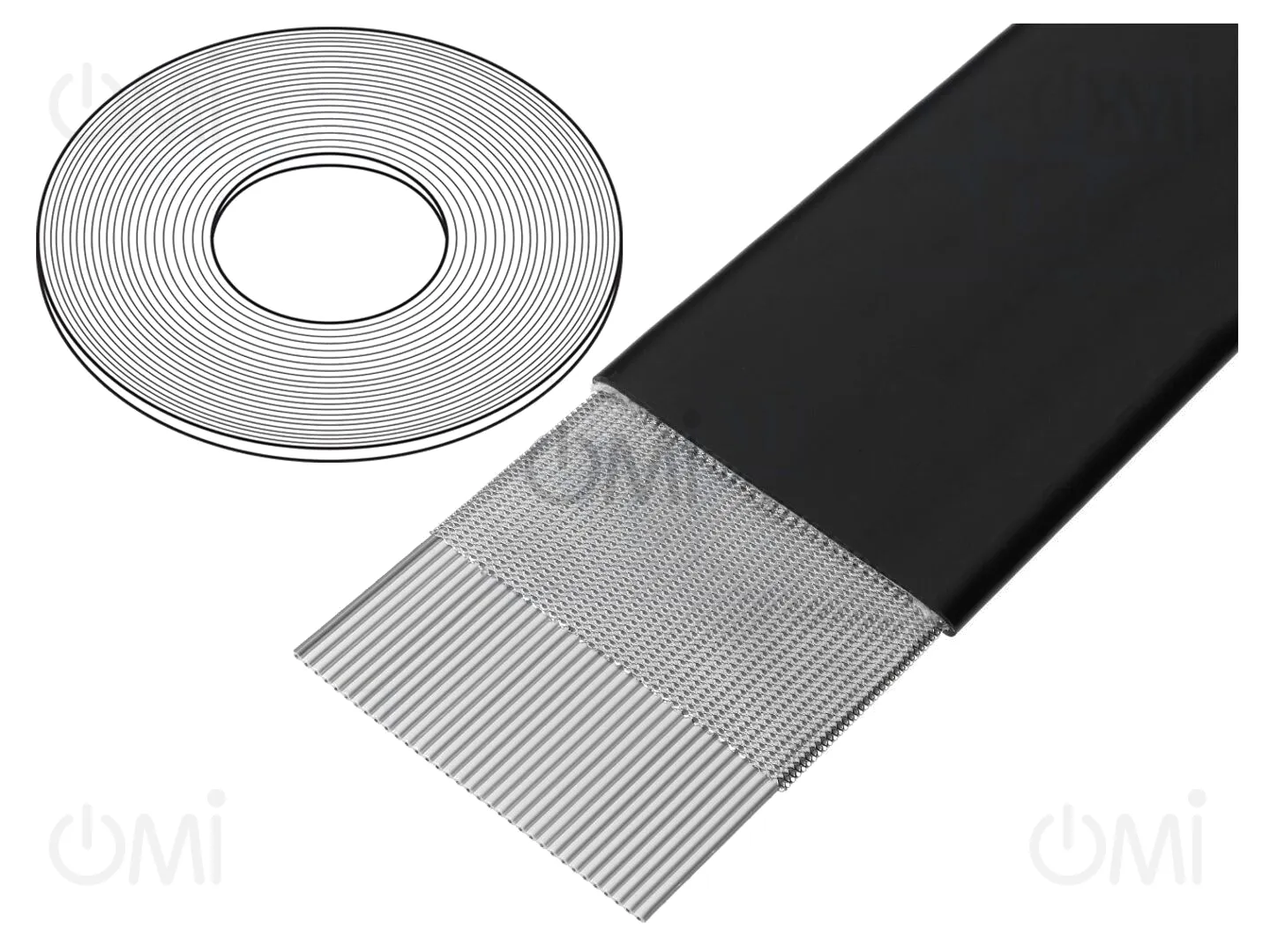

Wire: ribbon; 1.27mm; stranded; Cu; braid made of copper wires

Manufacturer code: 3517/34SF (100FT)

OMI code: 173954

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

3 rol

Qty.
[rol] 		Price
[EUR/rol]
1+ 946.43
10+ 892.84

Price details
3517/34SF (100FT)

Qty.
[rol] 		Price
[EUR/rol]
1+ 946.43
10+ 892.84

Quantity rol (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
3M
Version
Splice Free
Operating temperature
-20...80°C
Conform to the norm
UL CL2, CSA AWM I A/B FT1, UL 20879
Wire insulation material
PVC
Type of wire
ribbon
Number of cores
34
Insulation colour
black
A dimension
46.5mm
Ribbon cable pitch
1.27mm
Kind of core
Cu, tinned
Cable features
work in continuous operation up to 100 million cycles
Shield structure
braid made of copper wires
Rated voltage
50V
Package contents
30.5m
Core diameter
28AWG
Core structure
stranded
B dimension
41.94mm
Cable structure
34x28AWG
Gross weight 7917.30 g
Documentation in English #1 Documentation in English #2 Documentation in English #3

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Ribbon Cables - Single Color
