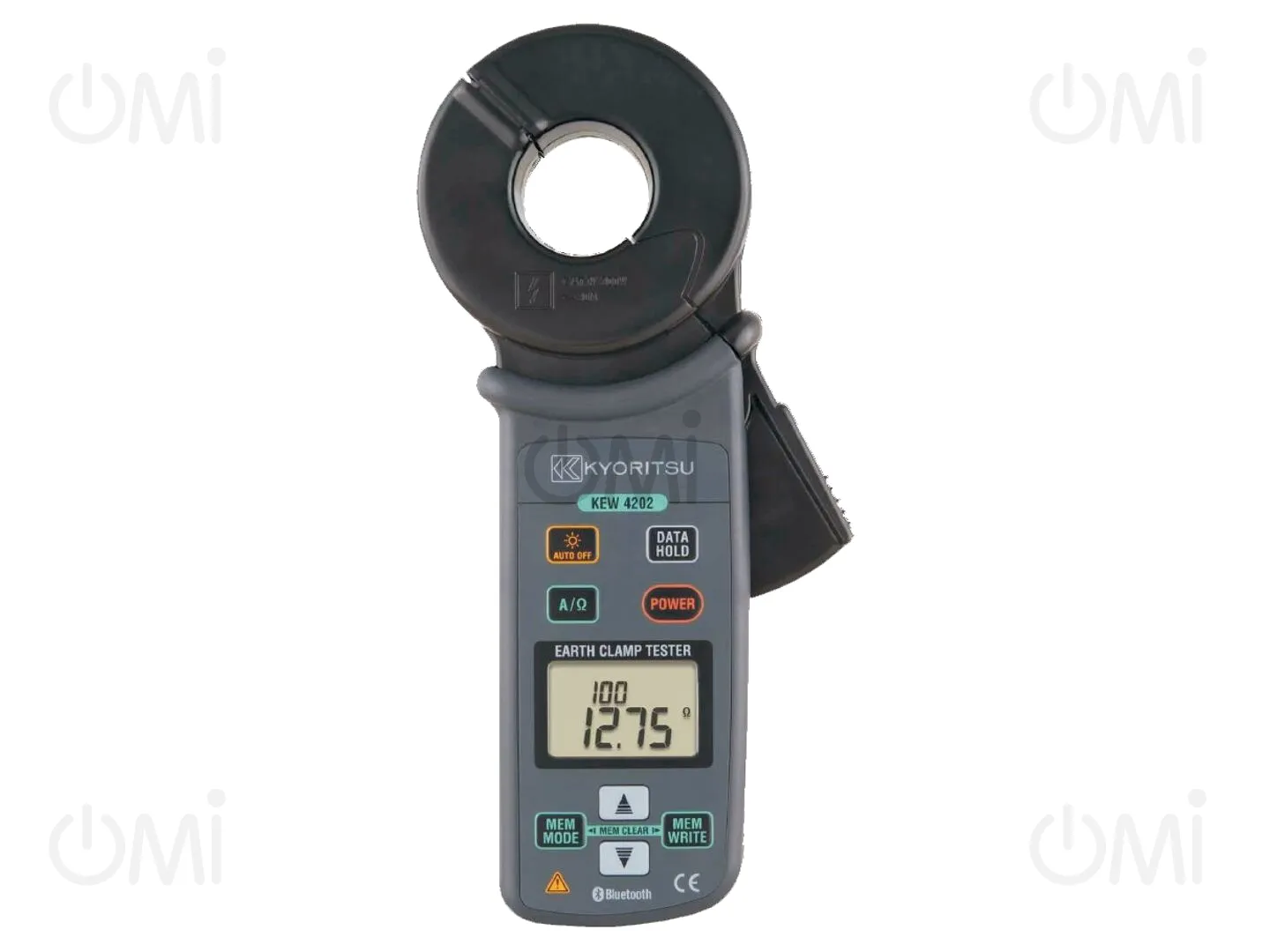

KEW4202 KYORITSU

Details

KEW4202
  • KEW4202

Manufacturer product page KYORITSU

Meter: grounding resistance; LCD; (1999),3,5 digit; 50÷60Hz; IP40

Manufacturer code: KEW4202

OMI code: 176510

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

0 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 1184.71

Price details
KEW4202

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 1184.71

This product is currently out of stock. You can enable notification of new arrivals of this product. To do this, click on the "Notify" button and fill out the form.

Specification

Show similar products –
Show similar products –
Manufacturer
KYORITSU
Operating temperature
-10...40°C
IP rating
IP40
Conform to the norm
CAT IV 300V, EN 61010
Related items
KEW8304
Dimensions
120x54x246mm
Interface
Bluetooth
Kind of display used
LCD
Power supply
battery LR6 AA 1,5V x4
Standard equipment
hard case, user's manual, Calibration board
Measuring instrument features
HOLD function, autoranging
Display parameters
3,5 digit, (1999)
Type of meter
grounding resistance
True effective value measurement
True RMS
Measurement memory
100
Measurement
AC current, continuity, earthing resistance
Battery/ rechargeable battery
battery LR6 AA 1,5V x4
AC current measuring range
100mA, 1A, 10A, 30A
Software
available on Google Play
Resistance measuring range
200Ω, 1.5kΩ, 20Ω
Max. diameter of measured cable
32mm
AC current measuring accuracy
±(2% + 0.7mA)
Resistance measuring accuracy
±(1.5%+50mΩ)
Bandwidth for AC current measurements
50...60Hz
Gross weight 600.00 g
Documentation in English #1 Documentation in English #2

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Clamp Meters - Others
