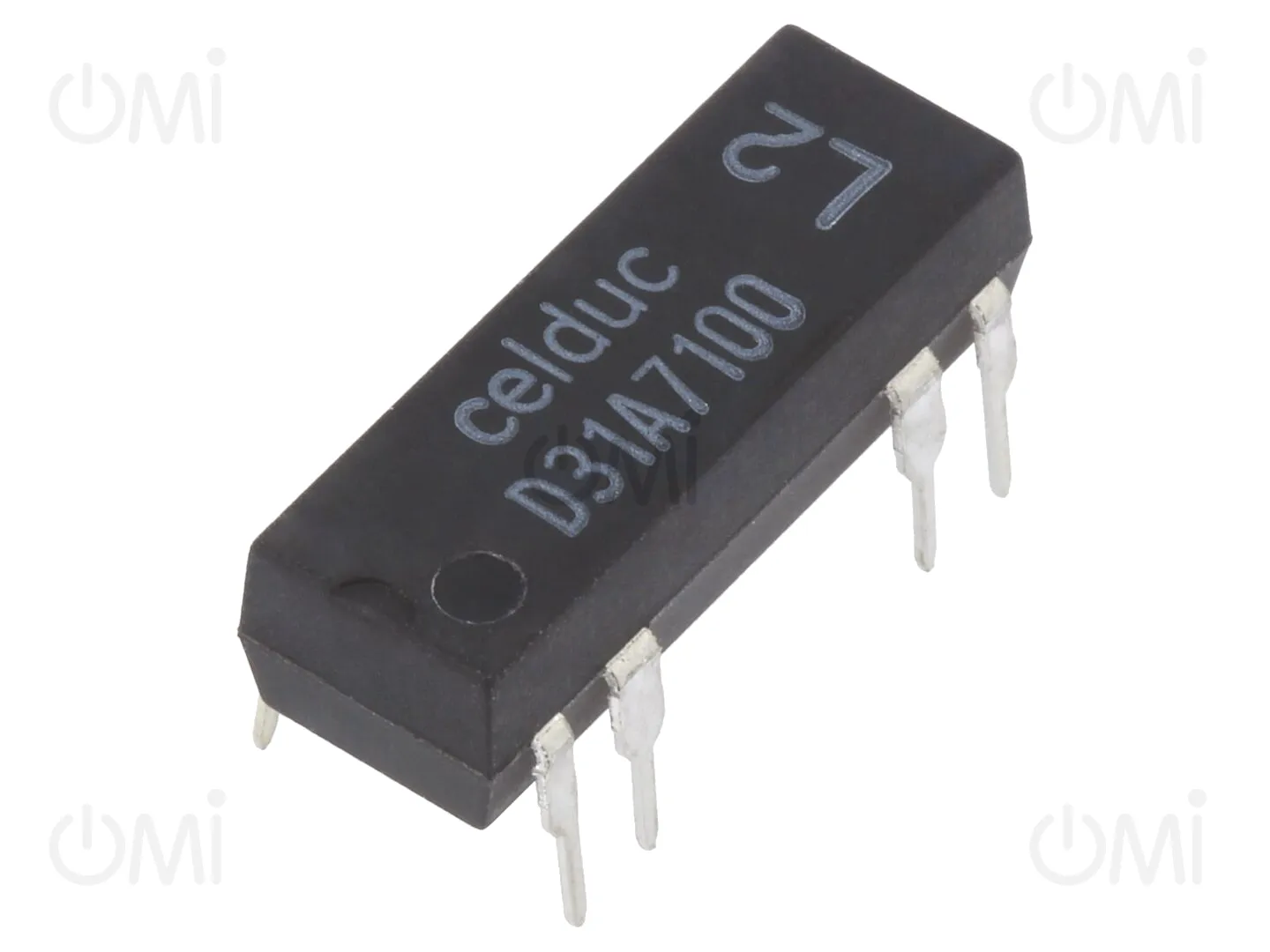

D31A7100 CELDUC

Details

D31A7100
  • D31A7100

Manufacturer product page CELDUC

Relay: reed switch; SPST-NO; Ucoil: 24VDC; 1A; max.100VDC; 10W; PCB

Manufacturer code: D31A7100

OMI code: 178885

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

86 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 6.67
4+ 5.49
8+ 5.2
216+ 5.1

Price details
D31A7100

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 6.67
4+ 5.49
8+ 5.2
216+ 5.1

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
CELDUC
Mounting
PCB
Operating temperature
-40...70°C
Case
DIP14
Contacts configuration
SPST-NO
Body dimensions
19.9x7.62x5.5mm
Switched voltage
max. 100V DC
Terminal pitch
2.54mm
Type of relay
reed switch
Contact current max.
1A
Relay series
D31A.1.0
Coil resistance
2.15kΩ
Switching capacity
10W
Rated coil voltage
24V DC
Coil voltage min.
18V DC
Contact resistance
0.15Ω
Coil voltage max.
32V DC
Gross weight 1.66 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Reed Electromagnetic Relays
