2170322 LAPP

Details

2170322
  • 2170322

Manufacturer product page LAPP

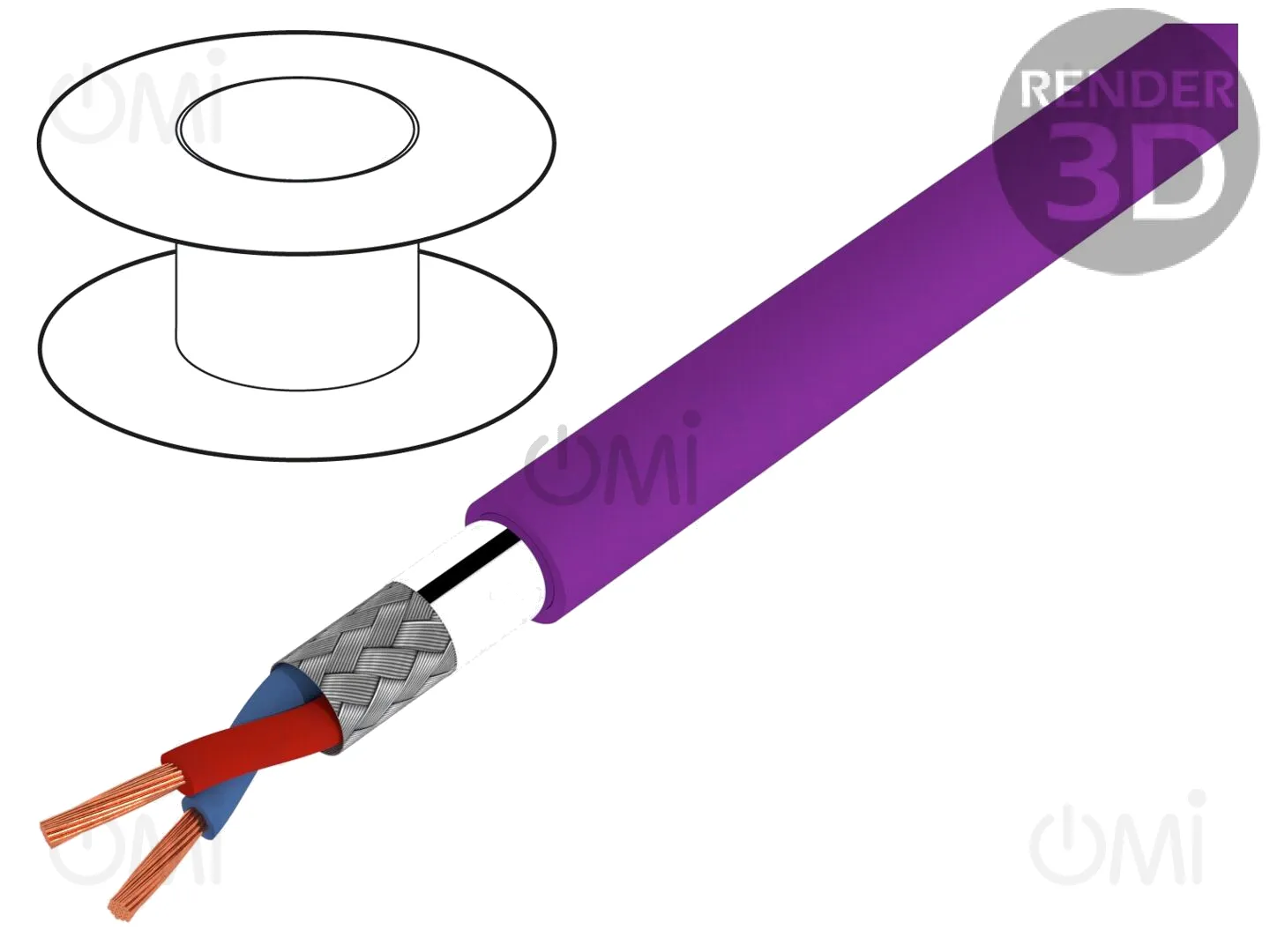

Wire; 1x2x0.64mm2; automatics,potentially explosive areas; Cu

Manufacturer code: 2170322

OMI code: 181095

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

137 m

Qty.
[m] 		Price
[EUR/m]
1+ 6.44
4+ 4.11
9+ 3.89

Price details
2170322

Qty.
[m] 		Price
[EUR/m]
1+ 6.44
4+ 4.11
9+ 3.89

Quantity m (multiplicity: 5)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
LAPP
Operating temperature
-40...80°C
Wire insulation material
PUR
Type of wire
data transmission
Number of cores
2
Resistance to
most of oils
Insulation colour
violet
Cable application
automatics, industrial applications, power chain, potentially explosive areas
Kind of material
no flame propagation
Kind of wire
UNITRONIC® BUS PB FD FC
Kind of core
Cu
Core section
0.64mm<sup>2</sup>
Cable features
twisted pair conductors, elastic, Fast Connect
Cable external diameter
8mm
Shield structure
Al foil, shielded twofold, braid made of copper wires
Rated voltage
0.25kV
Core structure
stranded
CPR standard
no classification
No. of pairs
1
Cable structure
1x2x0.64mm<sup>2</sup>
Flexibility class
6
Gross weight 73.46 g
Documentation in English #1 Documentation in English #2

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Serial Bus Cables
