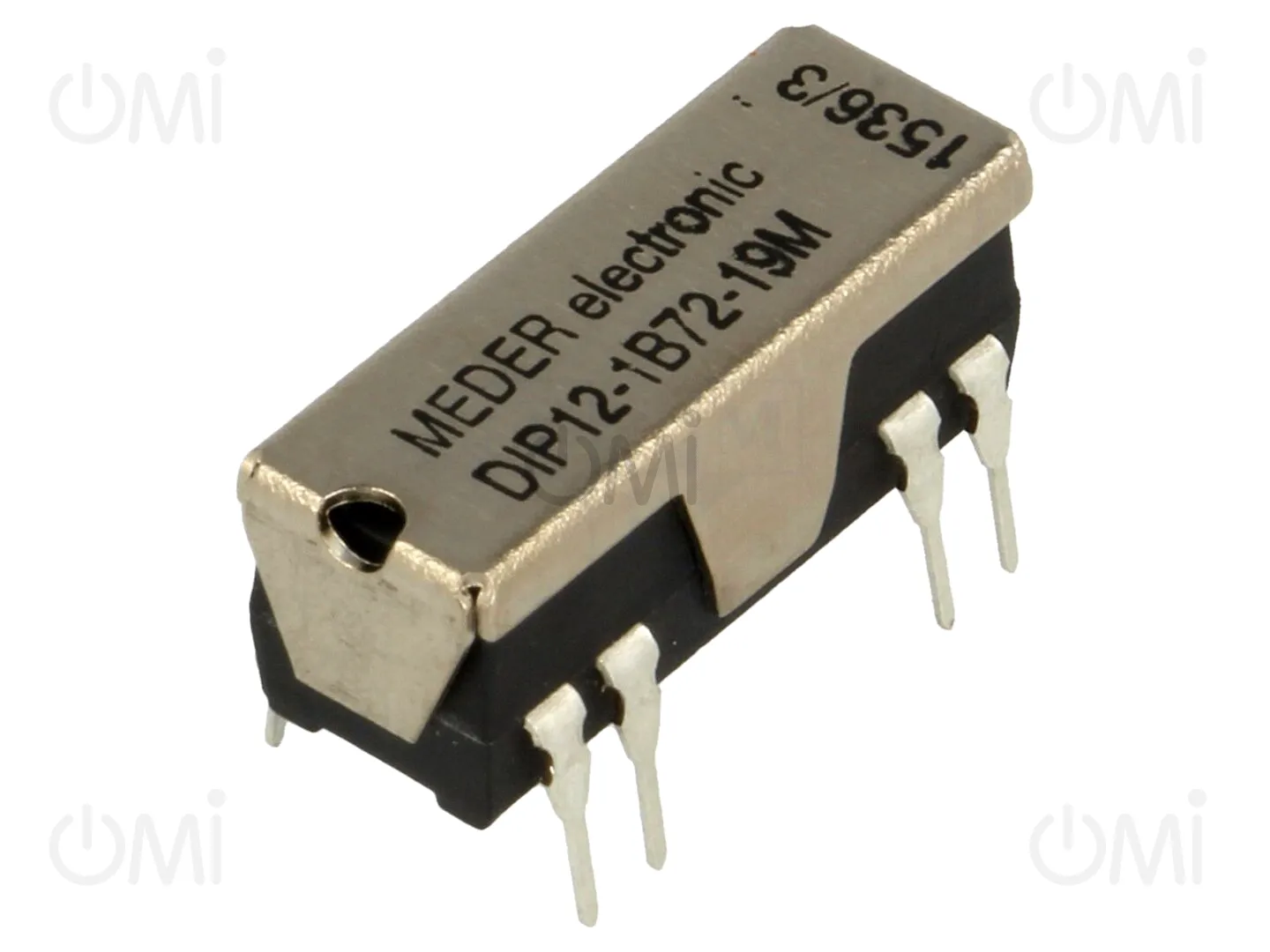

DIP12-1B72-19M MEDER

Details

DIP12-1B72-19M
  • DIP12-1B72-19M

Manufacturer product page MEDER

Relay: reed switch; SPST-NC; Ucoil: 12VDC; 1A; max.200VDC; 145mW

Manufacturer code: DIP12-1B72-19M

OMI code: 181415

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

8 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 10.74
3+ 6.83
7+ 6.46
504+ 6.35

Price details
DIP12-1B72-19M

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 10.74
3+ 6.83
7+ 6.46
504+ 6.35

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
MEDER
Mounting
PCB
Operating temperature
-20...70°C
Case
DIP14
Contacts configuration
SPST-NC
Body dimensions
19.9x7.6x7.8mm
Switched voltage
max. 200V AC, max. 200V DC
Soldering temperature
260°C
Terminal pitch
2.54mm
Type of relay
reed switch
Contact current max.
1A
Coil resistance
1kΩ
Rated coil voltage
12V DC
Coil voltage min.
8.4V DC
Contact resistance
0.15Ω
Coil voltage max.
16V DC
Coil power consumption
145mW
Gross weight 3.12 g

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Reed Electromagnetic Relays
