46.52.9.024.0040 FINDER

Details

46.52.9.024.0040
46.52.9.024.0040
46.52.9.024.0040
46.52.9.024.0040
46.52.9.024.0040
46.52.9.024.0040
46.52.9.024.0040
46.52.9.024.0040
46.52.9.024.0040
  • 46.52.9.024.0040
  • 46.52.9.024.0040
  • 46.52.9.024.0040
  • 46.52.9.024.0040
  • 46.52.9.024.0040
  • 46.52.9.024.0040
  • 46.52.9.024.0040
  • 46.52.9.024.0040
  • 46.52.9.024.0040

Manufacturer product page FINDER

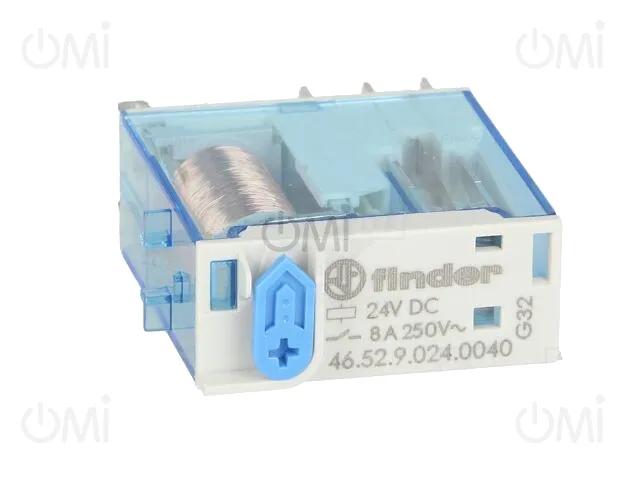

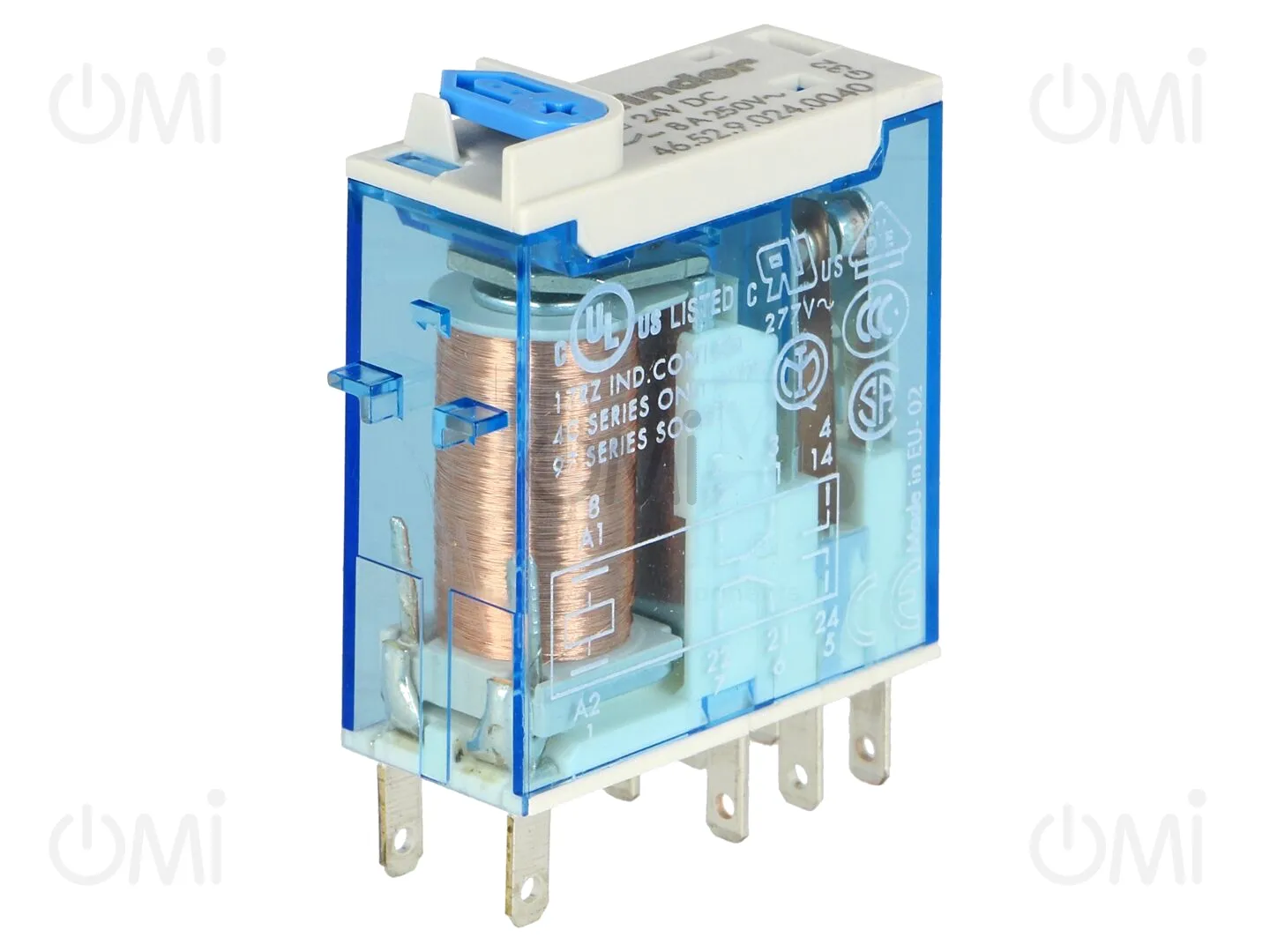

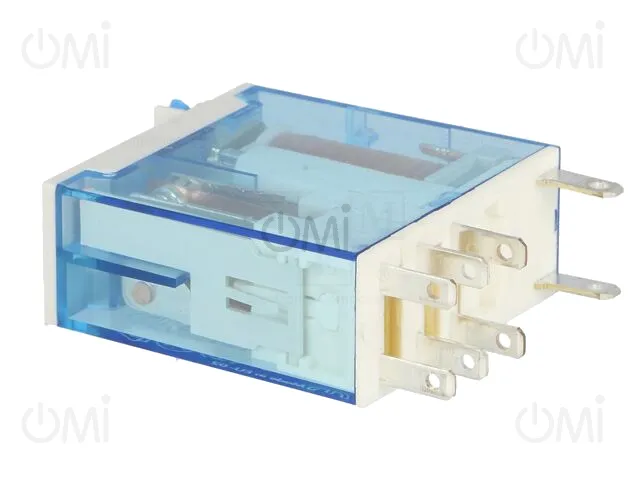

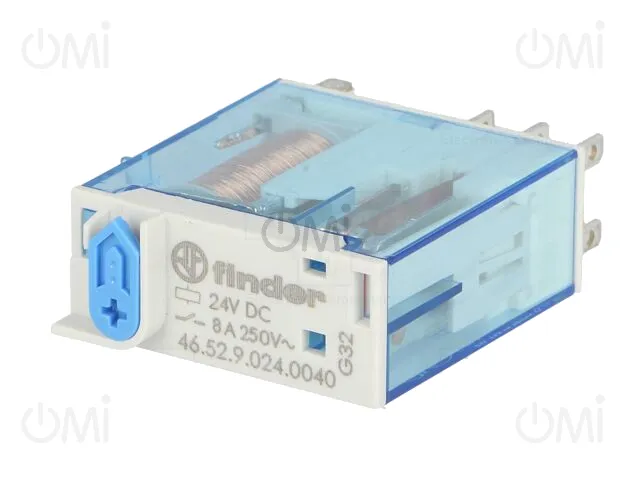

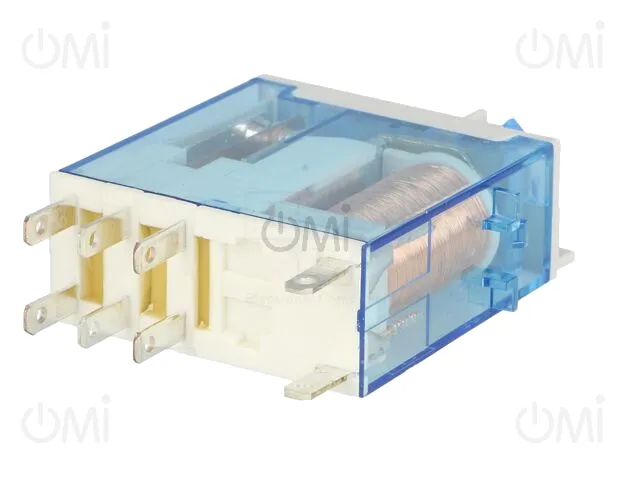

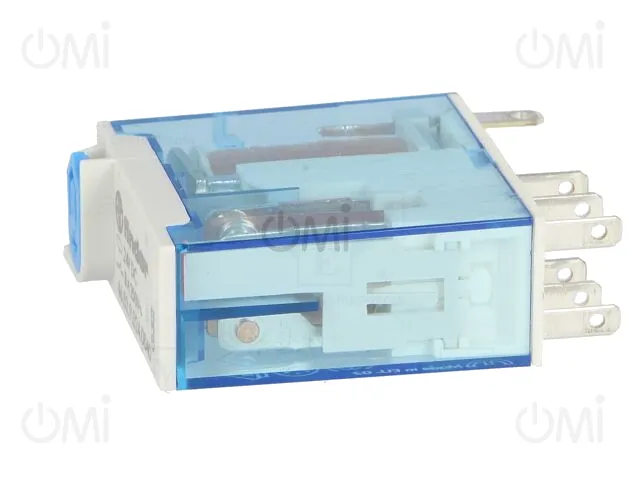

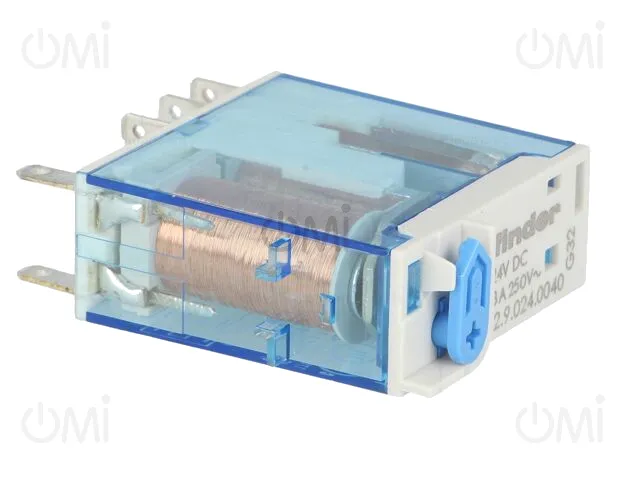

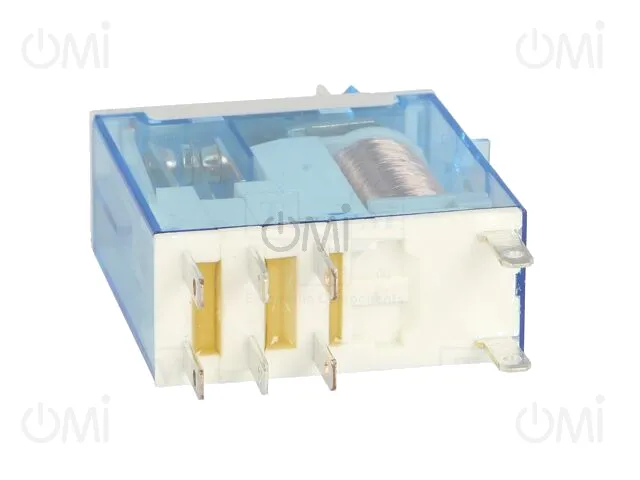

Relay: electromagnetic; DPDT; Ucoil: 24VDC; Icontacts max: 15A

Manufacturer code: 46.52.9.024.0040

OMI code: 182430

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

349 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 9.82
3+ 7.02
6+ 6.64

Price details
46.52.9.024.0040

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 9.82
3+ 7.02
6+ 6.64

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
FINDER
Mounting
PCB, socket
Operating temperature
-40...70°C
Related items
97.52, 97.02, 97.P2SPA
Contacts configuration
DPDT
Body dimensions
29x12.4x32.8mm
Mechanical durability
1000000 cycles
Contact material
AgNi
Switched voltage
max. 220V DC, max. 440V AC
AC contacts rating @R
8A / 250V AC
DC contacts rating @R
8A / 30V DC
Terminal pitch
5mm
Type of relay
electromagnetic
Contact current max.
15A
Relay variant
miniature, industrial
Relay series
46.52
Coil resistance
1.2kΩ
Design
test button
Rated coil voltage
24V DC
Coil voltage min.
17.5V DC
Coil voltage max.
26.4V DC
Coil power consumption
0.5W
Gross weight 19.55 g
Documentation in English #1
