S833 NKK SWITCHES

Details

S833
  • S833

Manufacturer product page NKK SWITCHES

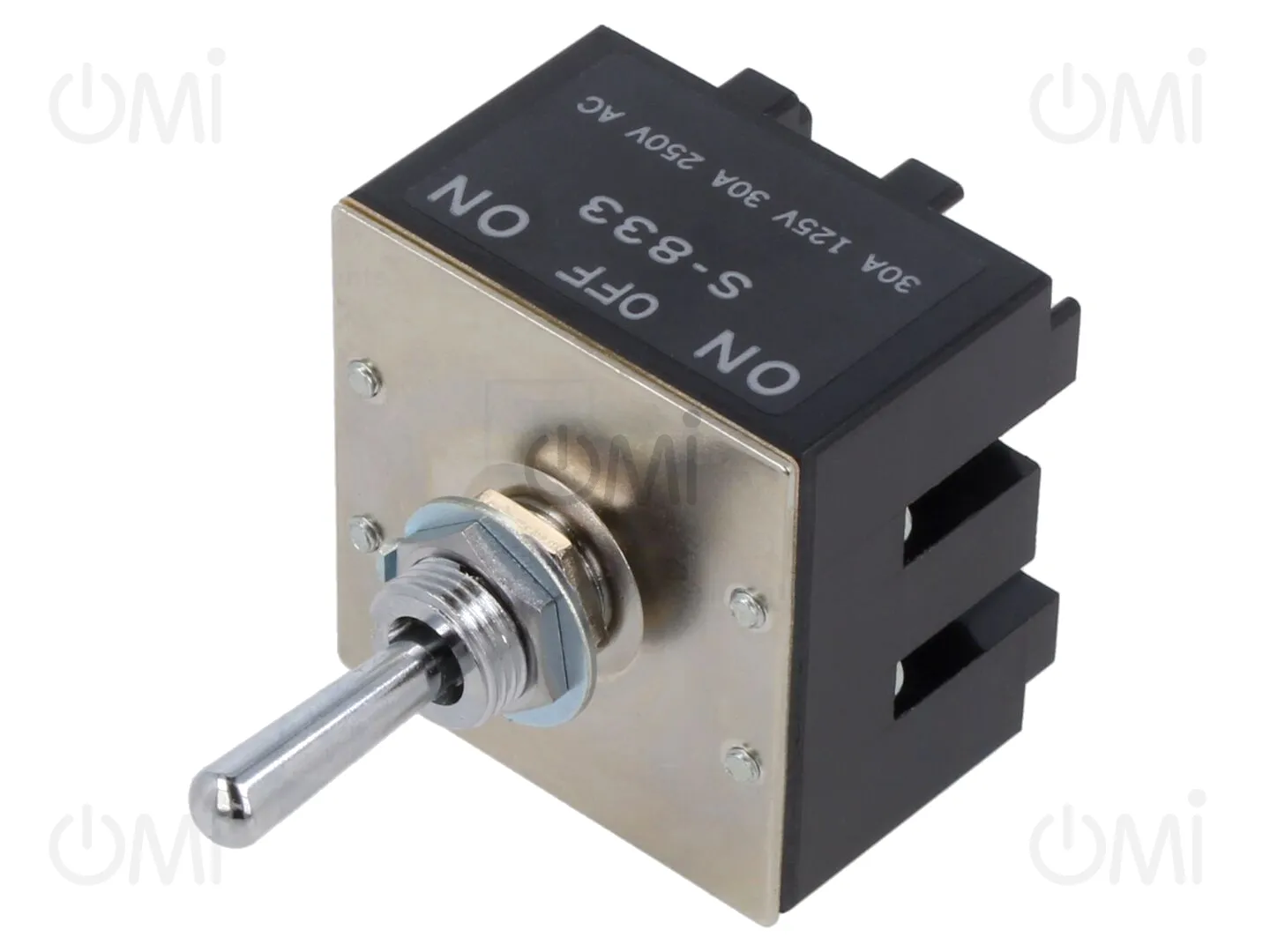

Switch: toggle; Pos: 3; 3P3T; ON-OFF-ON; 30A/250VAC; 30A/30VDC; S

Manufacturer code: S833

OMI code: 184728

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

10 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 50.59
30+ 50.48
75+ 48.08

Price details
S833

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 50.59
30+ 50.48
75+ 48.08

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
NKK SWITCHES
Mounting
panel
Type of switch
toggle
Operating temperature
-10...70°C
Leads
screw
Body dimensions
42x43x46mm
Manufacturer series
S
Contacts configuration
3P3T
Contact plating
silver plated, copper plated
Switching method
ON-OFF-ON
Electrical life
25000 cycles
Contact material
silver alloy
Mounting hole diameter
Ø12.5mm
AC contacts rating @R
30A / 250V AC
Number of positions
3
DC contacts rating @R
30A / 30V DC
Kind of toggle
round
Max. contact resistance:
10mΩ
Knob height
22mm
Min. insulation resistance
1GΩ
Stable positions number
3
Actuator material
brass
Lever plating
chromium
Gross weight 137.00 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Toggle Switches
