A2123HBT.GN SUNON

Details

A2123HBT.GN
A2123HBT.GN
A2123HBT.GN
A2123HBT.GN
A2123HBT.GN
A2123HBT.GN
A2123HBT.GN
A2123HBT.GN
A2123HBT.GN
  • A2123HBT.GN
  • A2123HBT.GN
  • A2123HBT.GN
  • A2123HBT.GN
  • A2123HBT.GN
  • A2123HBT.GN
  • A2123HBT.GN
  • A2123HBT.GN
  • A2123HBT.GN

Manufacturer product page SUNON

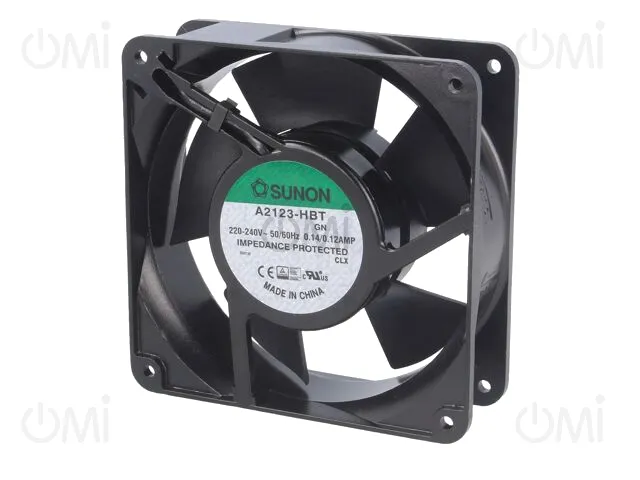

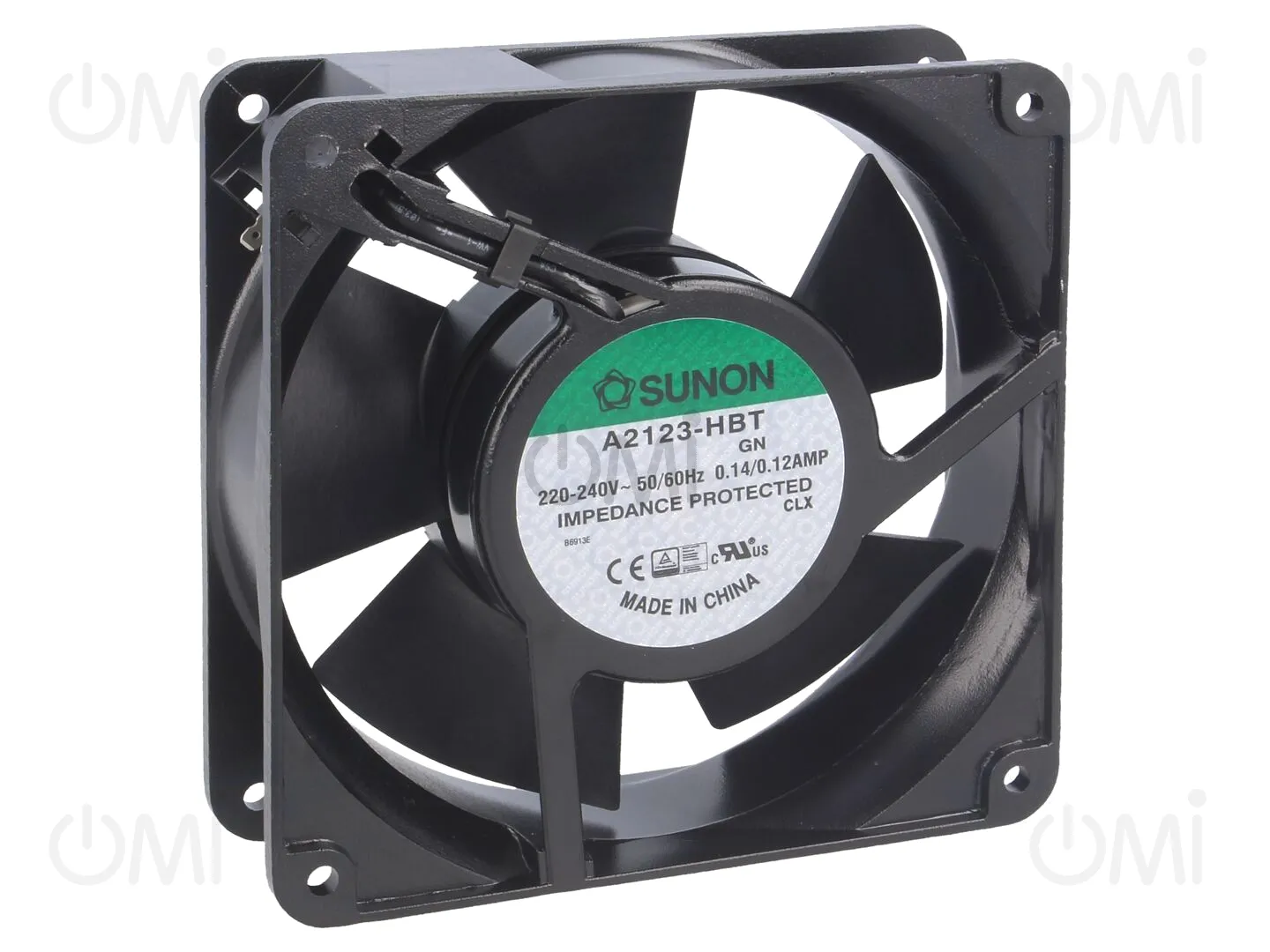

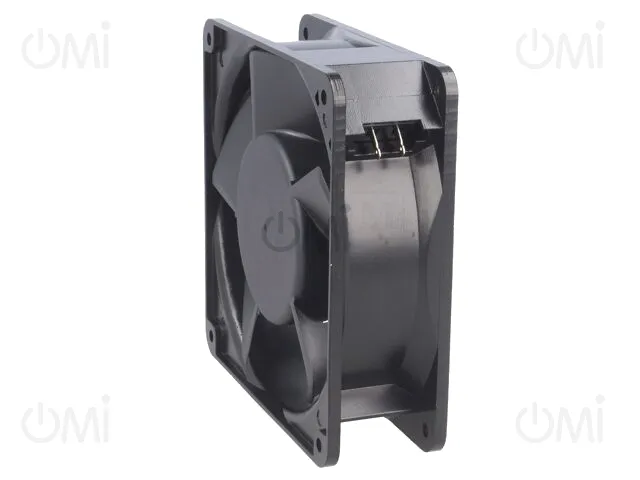

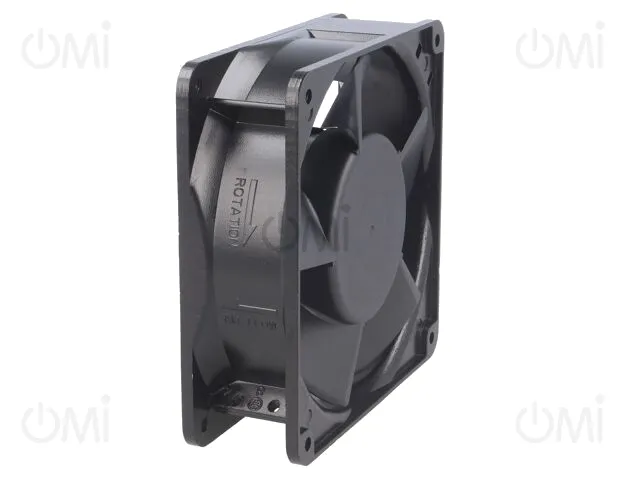

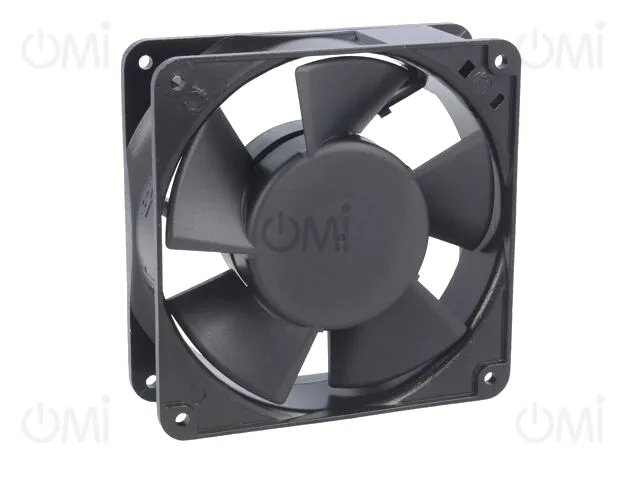

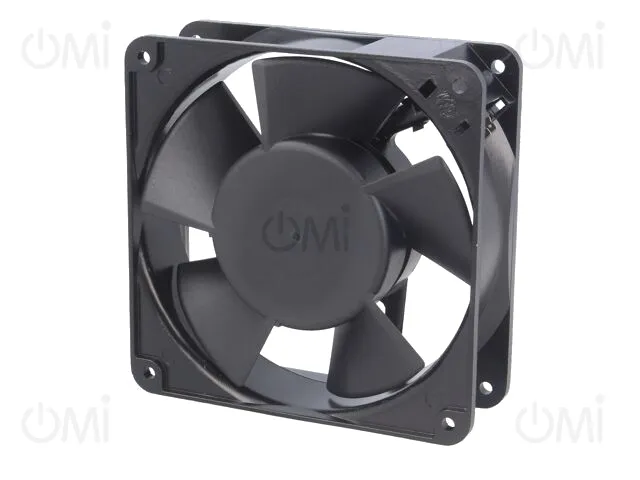

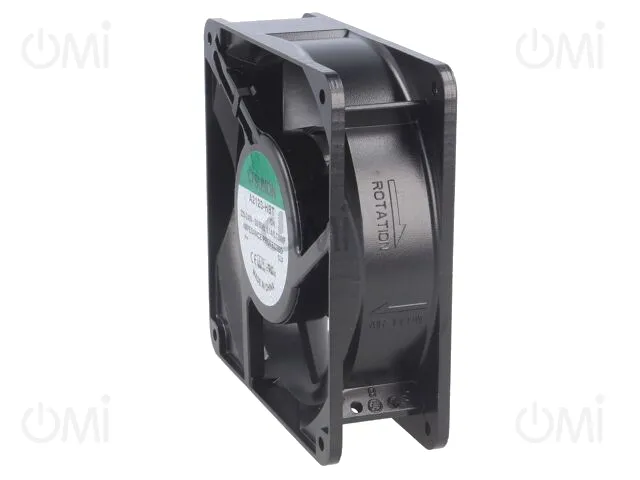

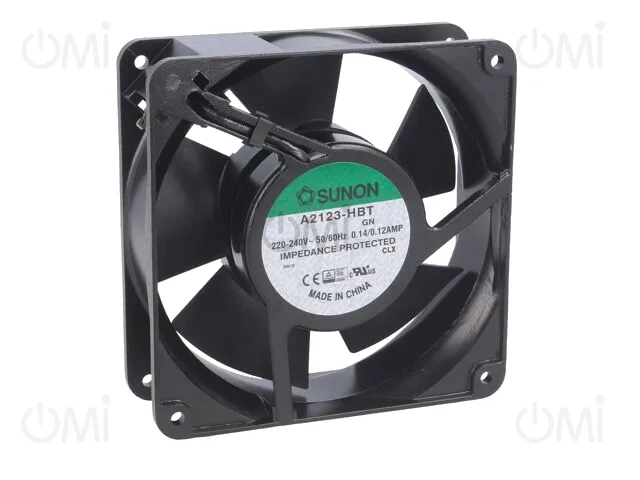

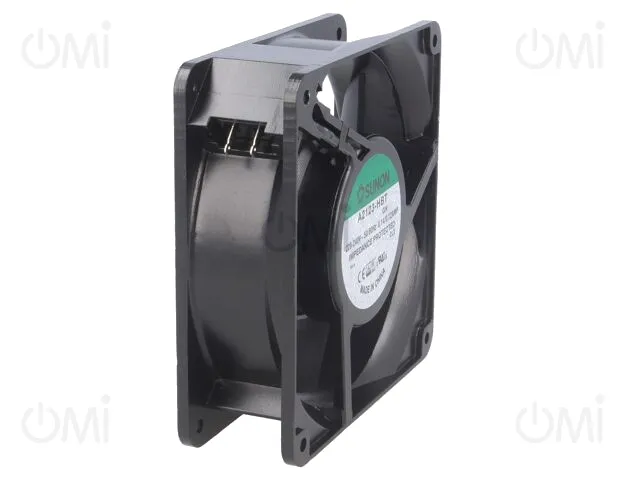

Fan: AC; axial; 230VAC; 120x120x38mm; 165m3/h(±10%); 45dBA; 2700rpm

Manufacturer code: A2123HBT.GN

OMI code: 185724

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

5067 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 15.33
20+ 13.68
40+ 12.88
240+ 11.91

Price details
A2123HBT.GN

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 15.33
20+ 13.68
40+ 12.88
240+ 11.91

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
SUNON
Operating temperature
-10...70°C
Current rating
0.14A
Leads
connectors 2,8x0,3mm
Flammability rating
UL94V-0
Frequency
50Hz
Supply voltage
230V AC
Power consumption
23W
Enclosure material
aluminium
Rotational rate/speed
2700rpm
Kind of Bearing
ball bearing
Fan efficiency
165m<sup>3</sup>/h (±10%)
Min. insulation resistance
500MΩ
Type of fan
AC
Fan dimensions
120x120x38mm
Impeller material
thermoplastic
Noise level
45dBA
Current and power consumption tolerance
±15%
Kind of fan
axial
Static pressure
8.63mm H<sub>2</sub>O
Gross weight 488.74 g
Documentation in English #1 Documentation in English #2 Documentation in English #3

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: AC230V Fans
