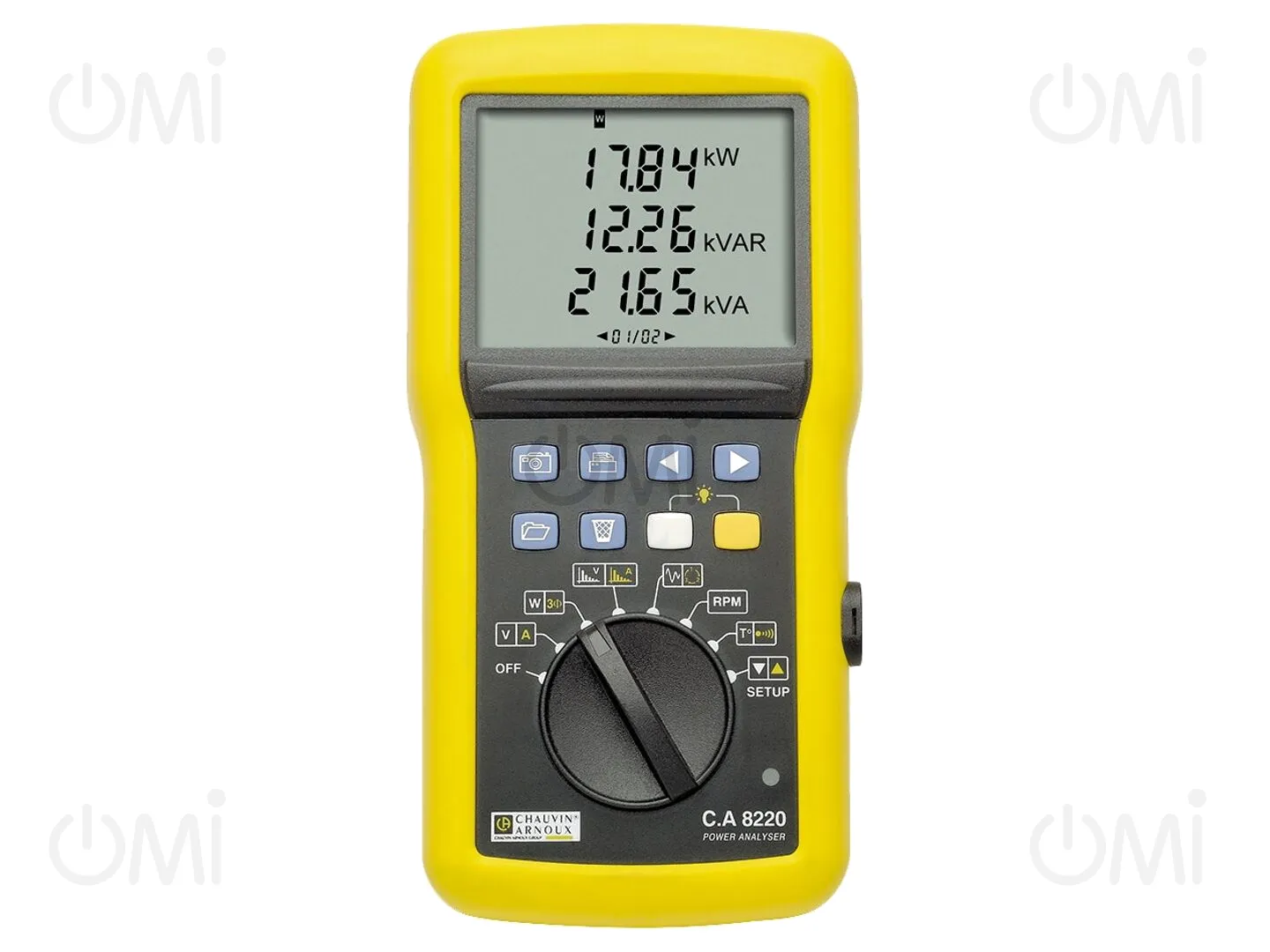

C.A 8220 CHAUVIN ARNOUX

Details

C.A 8220
  • C.A 8220

Manufacturer product page CHAUVIN ARNOUX

Meter: power quality analyser; LCD; VAC: 6÷600V; True RMS; 40÷70Hz

Manufacturer code: C.A 8220

OMI code: 187461

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

1 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 1026.37
3+ 998.74

Price details
C.A 8220

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 1026.37
3+ 998.74

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
CHAUVIN ARNOUX
IP rating
IP54
Conform to the norm
CAT III 600V, EN 61010
Dimensions
211x108x60mm
Kind of display used
LCD
Illumination
yes
Power supply
battery LR6 AA 1,5V x6
Standard equipment
test probes, test leads ( 2pcs.), optical cable with USB, 2 crocodile clips
Measuring instrument features
automatic power-off, indicates phase sequence, datalogging, automatic recognition various current detectors
Type of meter
power quality analyser
True effective value measurement
True RMS
Measurement
resistance, AC voltage, active power, apparent power, frequency, harmonics, inrush current, power factor, reactive power, AC current (with current clamps), rpm velocity, DC current (with current clamps), Displacement Power Factor (DPF), temperature (option)
Battery/ rechargeable battery
battery LR6 AA 1,5V x6
Optional equipment
CA-1711 techometr probe
Continuity test
acoustic indication
Frequency measuring range
40...70Hz
Weight with battery
880g
Software
Power Analyser Transfer
Pollution degree
2
AC voltage measuring range
6...600V
Gross weight 1518.70 g
Documentation in English #1 Documentation in English #2 Documentation in English #3 Documentation in English #4

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Power Quality Analyzers
