8125SD3V3BE C&K

Details

8125SD3V3BE
  • 8125SD3V3BE

Manufacturer product page C&K

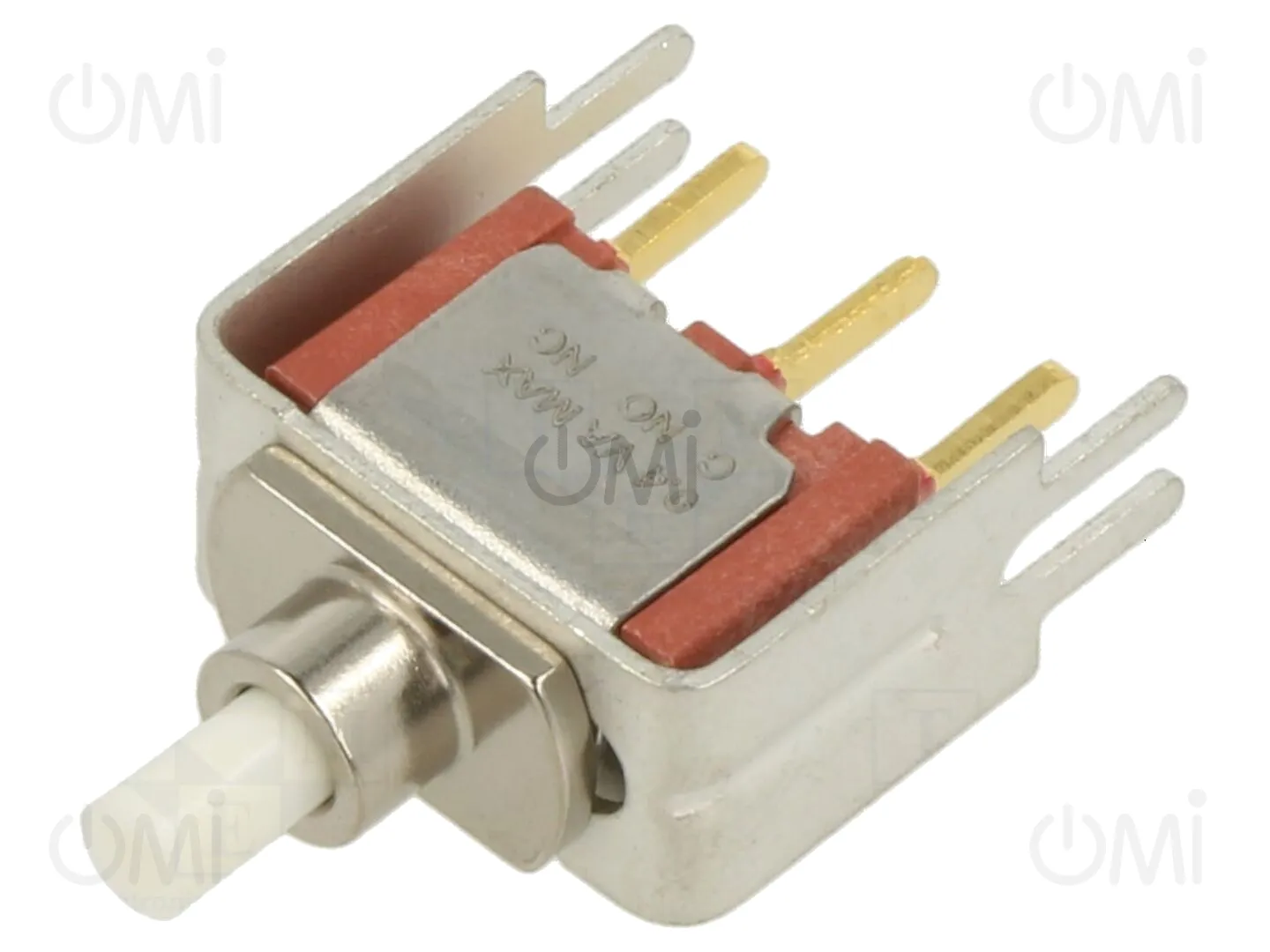

Switch: push-button; Pos: 2; SPDT; 0.4A/20VAC; 0.4A/20VDC; ON-(ON)

Manufacturer code: 8125SD3V3BE

OMI code: 18846

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

99 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 9.61
3+ 6.68
6+ 6.32

Price details
8125SD3V3BE

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 9.61
3+ 6.68
6+ 6.32

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
C&K
Mounting
THT
Type of switch
push-button
Operating temperature
-30...75°C
Leads
for PCB
Body dimensions
12.7x6.86x10.41mm
Manufacturer series
8020
Contacts configuration
SPDT
Contact plating
nickel plated, gold-plated
Switching method
ON-(ON)
Electrical life
60000 cycles
Contact material
copper
AC contacts rating @R
0.4A / 20V AC
Number of positions
2
DC contacts rating @R
0.4A / 20V DC
Max. contact resistance:
50mΩ
Number of terminals
3
Min. insulation resistance
1GΩ
Button shape
round
Stable positions number
1
Fastening thread
1/4 +- 40 UNS-2A
Gross weight 4.17 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Standard Switches
