PX0931/04/P BULGIN

Details

PX0931/04/P
PX0931/04/P
PX0931/04/P
PX0931/04/P
PX0931/04/P
PX0931/04/P
PX0931/04/P
PX0931/04/P
PX0931/04/P
  • PX0931/04/P
  • PX0931/04/P
  • PX0931/04/P
  • PX0931/04/P
  • PX0931/04/P
  • PX0931/04/P
  • PX0931/04/P
  • PX0931/04/P
  • PX0931/04/P

Manufacturer product page BULGIN

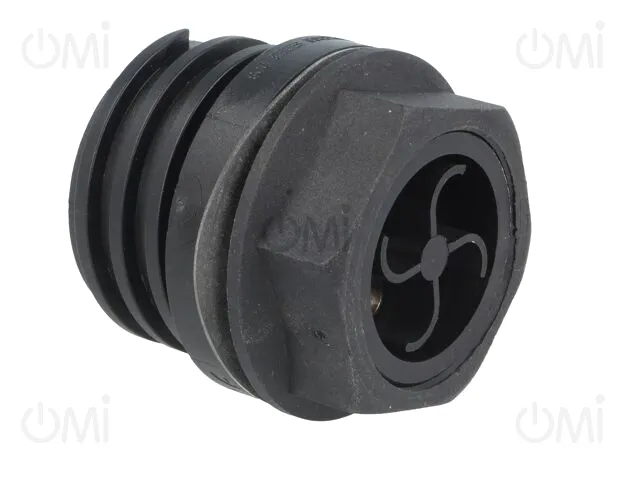

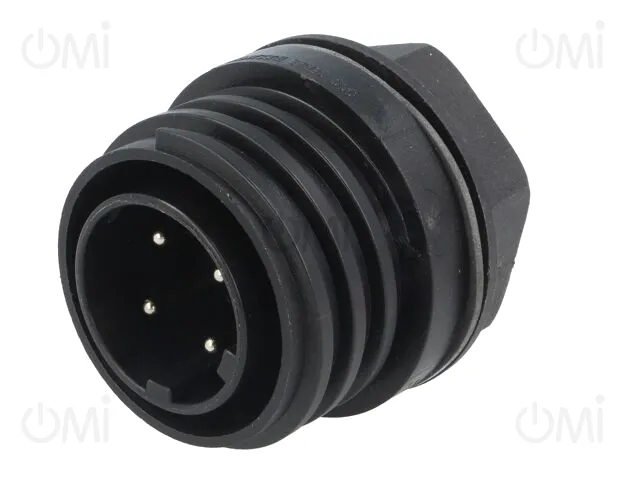

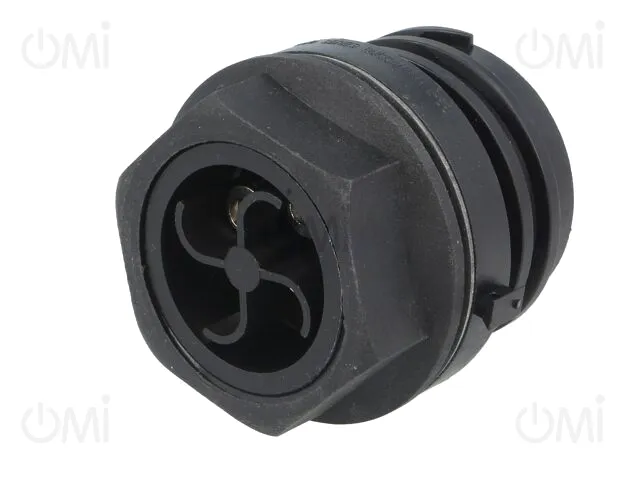

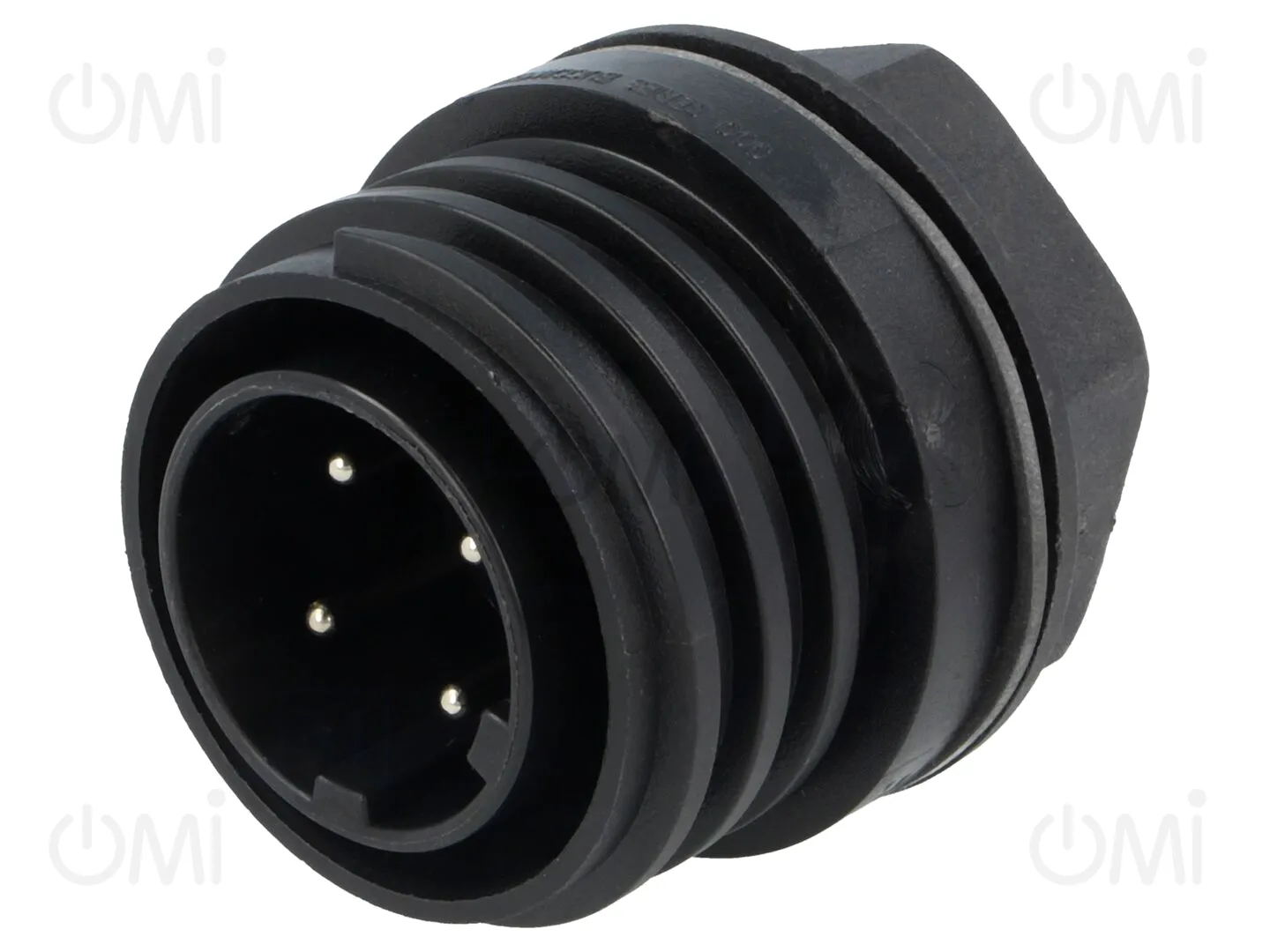

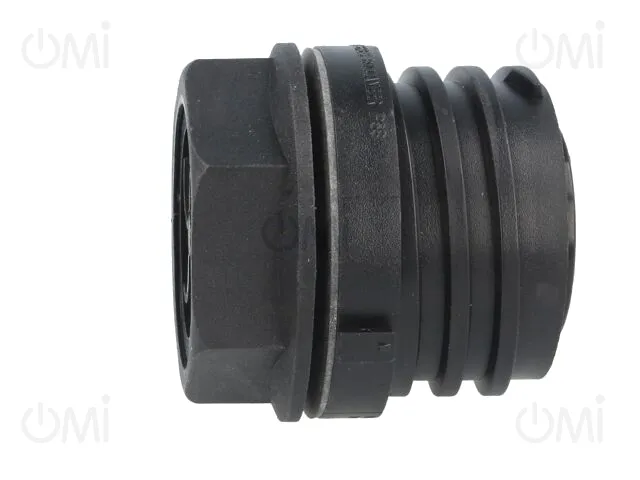

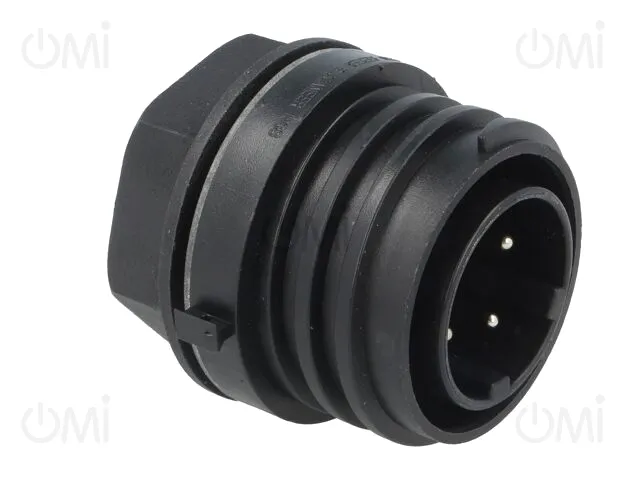

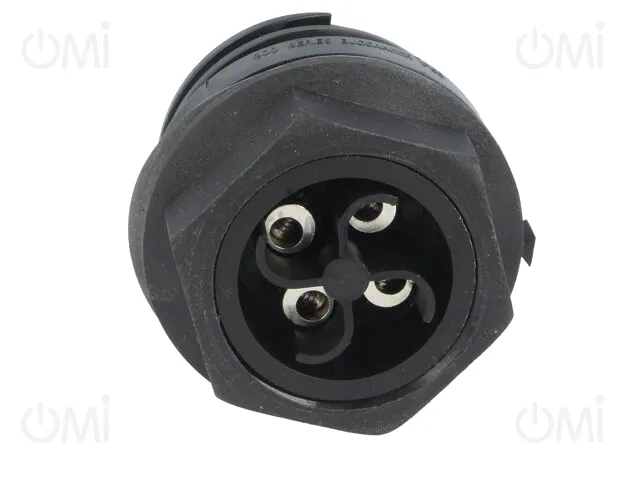

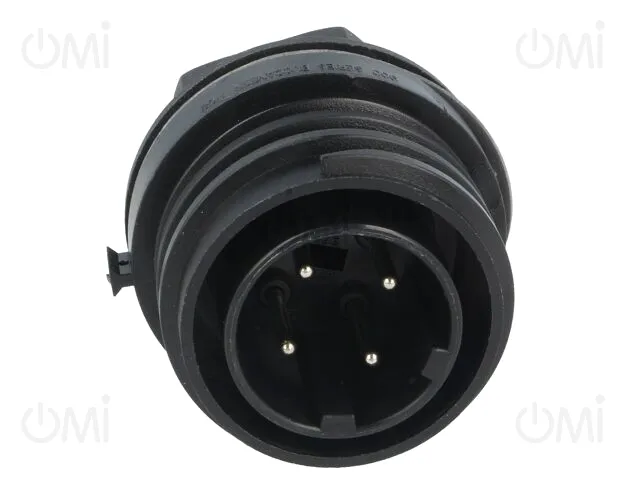

Connector: circular; socket; male; PIN: 4; Buccaneer 900; IP68; 32A

Manufacturer code: PX0931/04/P

OMI code: 196746

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

13 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 40.83

Price details
PX0931/04/P

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 40.83

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
BULGIN
Operating temperature
-40...85°C
IP rating
IP68
Current rating
32A
Flammability rating
UL94V-0
Number of pins
4
Connector series
Buccaneer 900
Contact plating
nickel plated
Kind of connector
male
Contact material
brass
Enclosure material
polyamide
Connector
socket
Wire cross-section
2.5...4mm<sup>2</sup>
Locking system
external thread, threaded joint
Electrical mounting
screw terminal
Mechanical mounting
for panel mounting, rear side nut, screwed
Type of connector
circular
Rated voltage
600V
Gross weight 72.28 g
Documentation in English #1 Documentation in English #2

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: PX connectors
