M80-4861005 HARWIN

Details

M80-4861005
  • M80-4861005

Manufacturer product page HARWIN

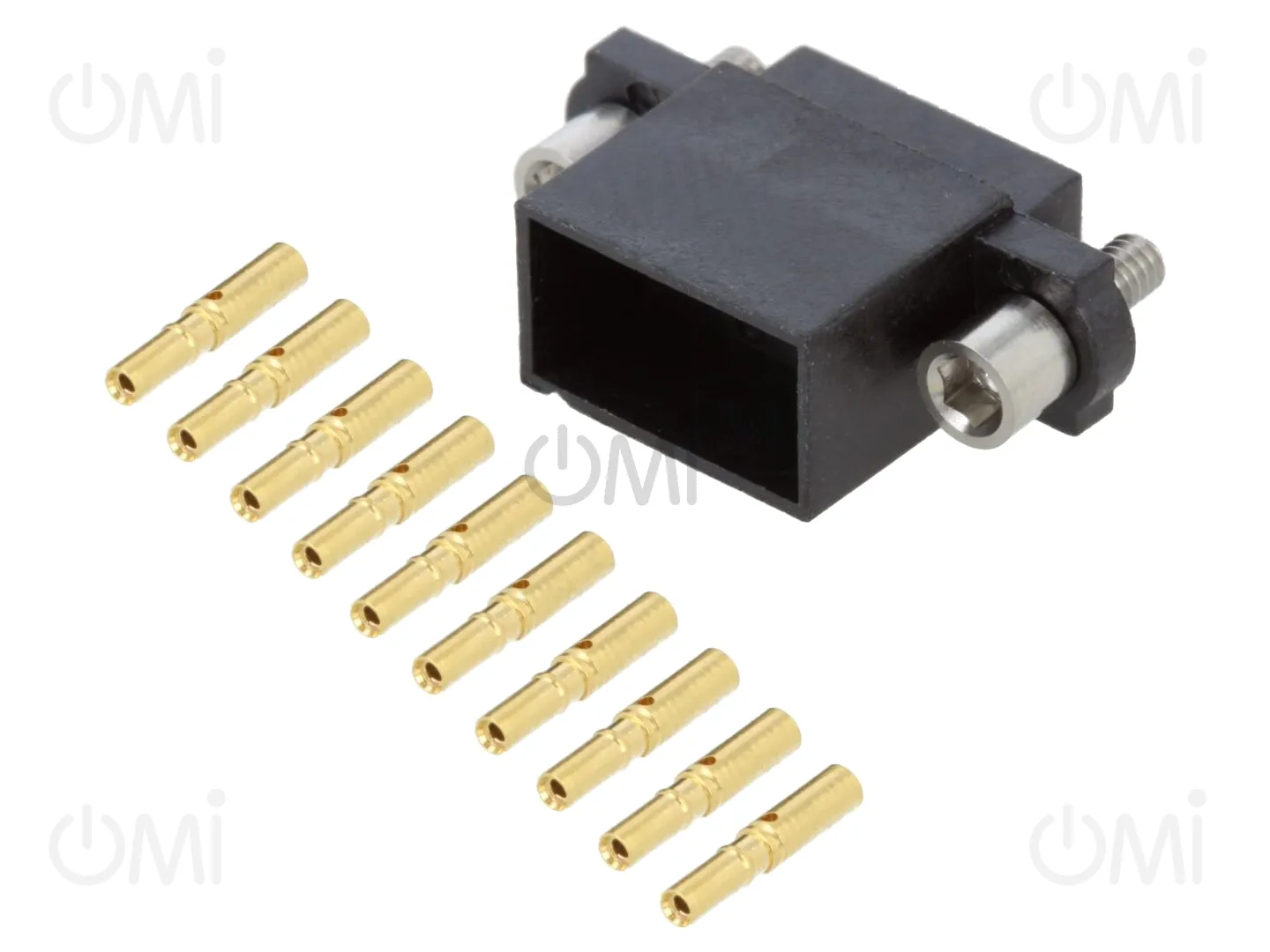

Plug; wire-wire/PCB; female; Datamate J-Tek; 2mm; PIN: 10; crimped

Manufacturer code: M80-4861005

OMI code: 197609

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

119 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 13.99
2+ 7.98
5+ 7.55

Price details
M80-4861005

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 13.99
2+ 7.98
5+ 7.55

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
HARWIN
Current rating
3A
Number of pins
10
Connector series
Datamate J-Tek
Connector pinout layout
2x5
Contact plating
gold-plated
Kind of connector
female
Thread
M2 x 0,4mm
Connector
plug
Connector variant
with contacts
Contacts pitch
2mm
Locking system
screws
Electrical mounting
crimped
Mechanical mounting
for cable, for panel mounting
Wire size
28AWG...24AWG
Type of connector
wire-wire/PCB
Spatial orientation
straight
Rated voltage
800V
Gross weight 1.57 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Raster signal connectors 2,00mm
