VFS15-4110PL-W1 TOSHIBA

Details

VFS15-4110PL-W1
  • VFS15-4110PL-W1

Manufacturer product page TOSHIBA

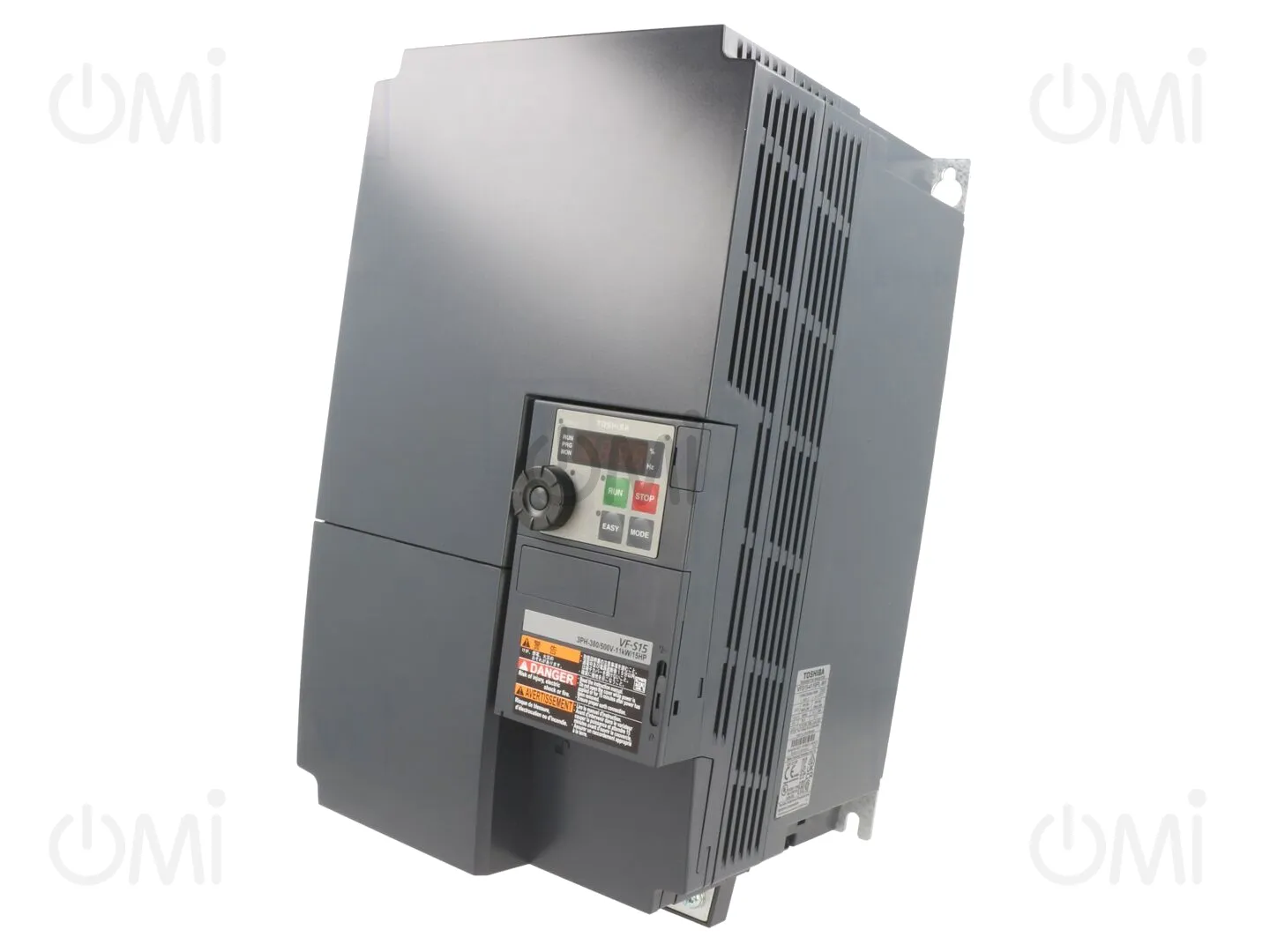

Vector inverter; 11kW; 3x380VAC; 3x380÷500VAC; 0÷10V; Display: LED

Manufacturer code: VFS15-4110PL-W1

OMI code: 19823

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

2 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 1173.35

Price details
VFS15-4110PL-W1

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 1173.35

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
TOSHIBA
Mounting
for wall mounting
Manufacturer series
VFS15
Type of module
vector inverter
Kind of display used
LED
The programming method
keypad and potentiometer
Electrical connection
screw terminals
Additional functions
Modbus RTU, disturbance filter, PID regulator, 2 analog inputs, 3 digital outputs ( + 2 relay outputs), 15 fixed speeds, RS485/422 (max 115kB/s), three combined settings
Current consumption
27.7A
Max motor power
11kW
Voltage between phases (for three phase system)
3 x 380...500V AC
Inverter output voltage
3 x 380V AC
Protection
short circuit protection SCP, anti-overload OPP, motor earth fault
Input 1 properties
2 inputs for setting motor rotational speed by signals 0...10V, 4...20mA, 0...20mA or by means of the external potentiometer
Current output
0/4mA...20mA
Voltage output
0...10V
Gross weight 7680.90 g
Documentation in English #1 Documentation in English #2 Documentation in English #3
