1-1625984-7 TE Connectivity

Details

1-1625984-7
  • 1-1625984-7

Manufacturer product page TE Connectivity

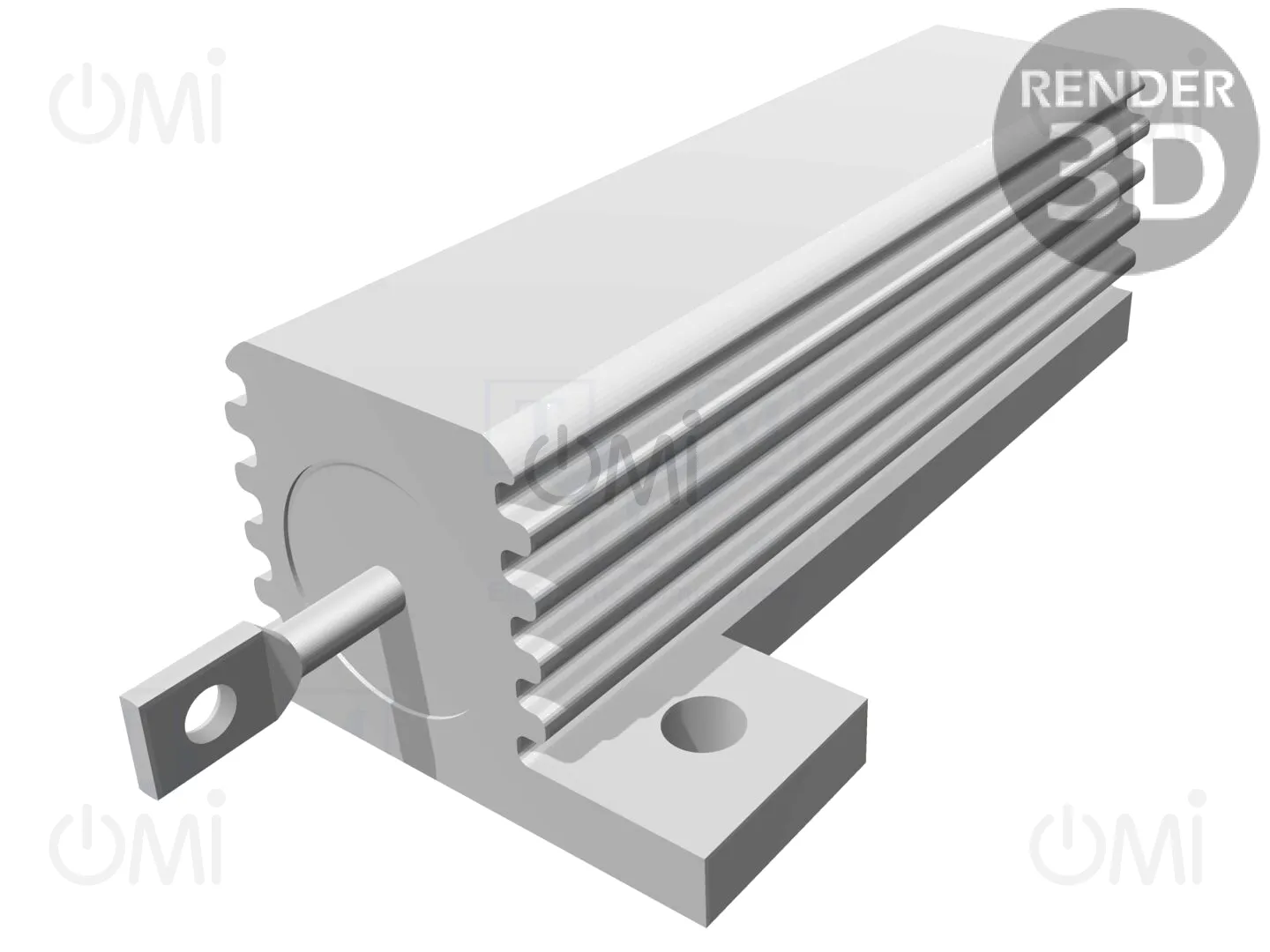

Resistor: wire-wound; with heatsink; screw; 1kΩ; 50W; ±5%; 30ppm/°C

Manufacturer code: 1-1625984-7

OMI code: 199418

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

309 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 6.94
4+ 5.66
8+ 5.36
500+ 5.22

Price details
1-1625984-7

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 6.94
4+ 5.66
8+ 5.36
500+ 5.22

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
TE Connectivity
Mounting
screw
Power
50W
Leads
for soldering
Body dimensions
51x30x17mm
Type of resistor
wire-wound
Tolerance
±5%
Resistance
1kΩ
Max. operating voltage
1.25kV
Kind of resistor
with heatsink
Mounting holes pitch
21.4x39.7mm
Temperature coefficient
30ppm/°C
Resistor features
needs additional heatsink, robust mechanical structure
Power without heatsink
20W
Gross weight 30.29 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Power resistors
