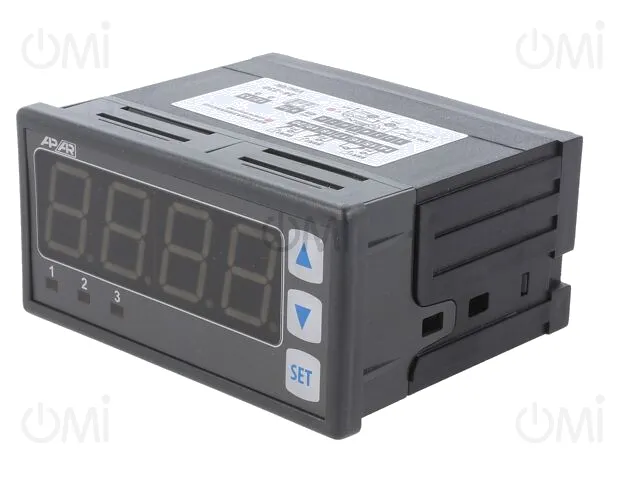

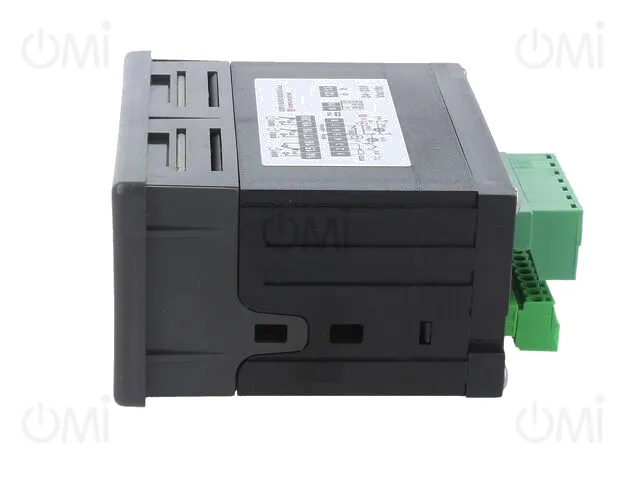

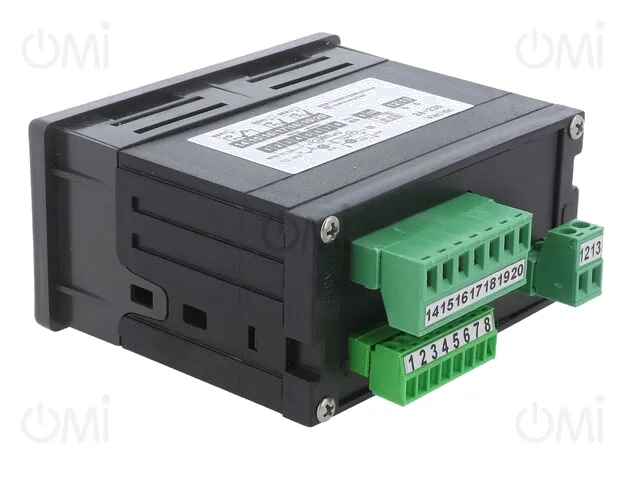

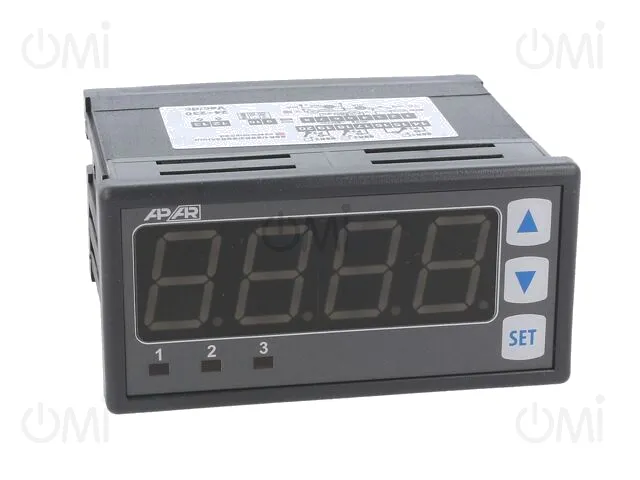

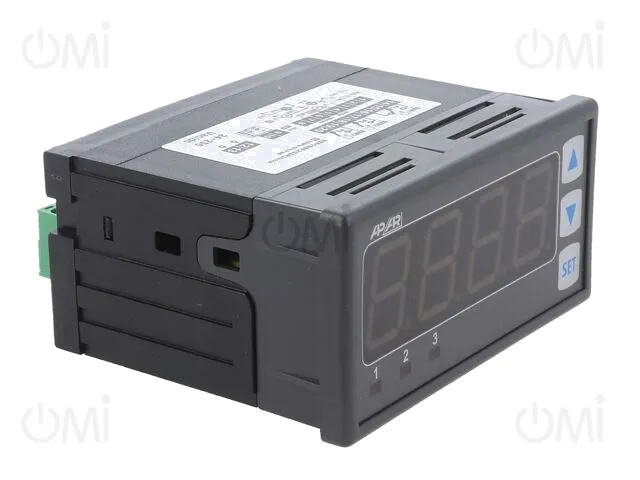

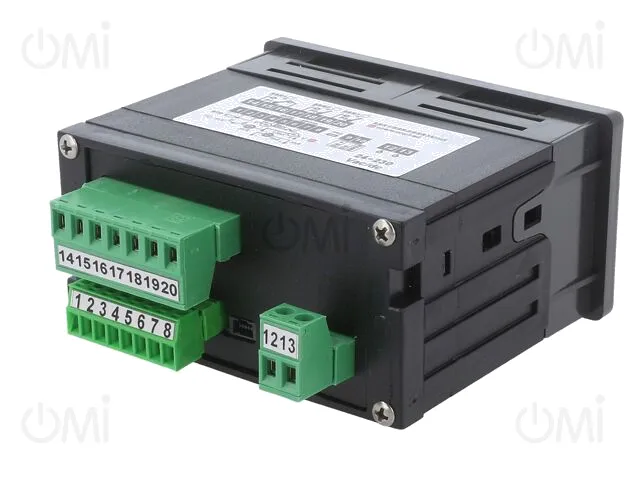

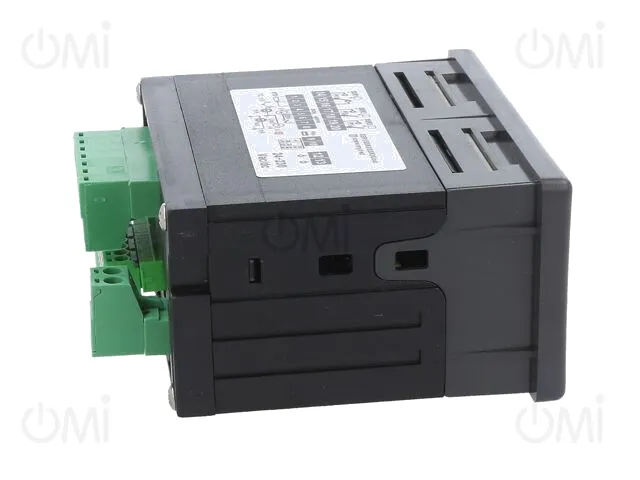

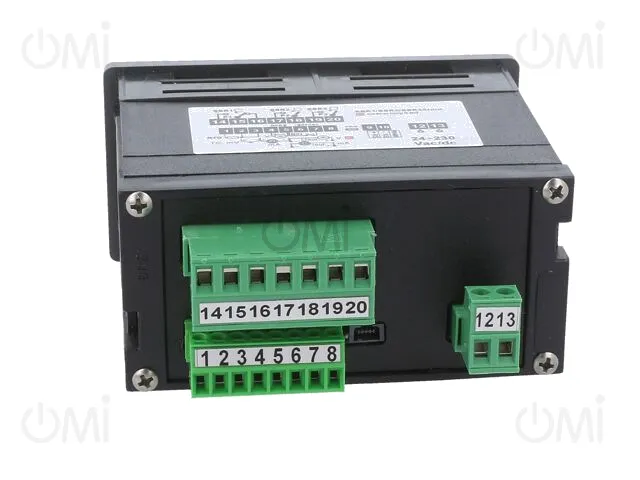

AR517/WU APAR

Details

AR517/WU
AR517/WU
AR517/WU
AR517/WU
AR517/WU
AR517/WU
AR517/WU
AR517/WU
AR517/WU
  • AR517/WU
  • AR517/WU
  • AR517/WU
  • AR517/WU
  • AR517/WU
  • AR517/WU
  • AR517/WU
  • AR517/WU
  • AR517/WU

Manufacturer product page APAR

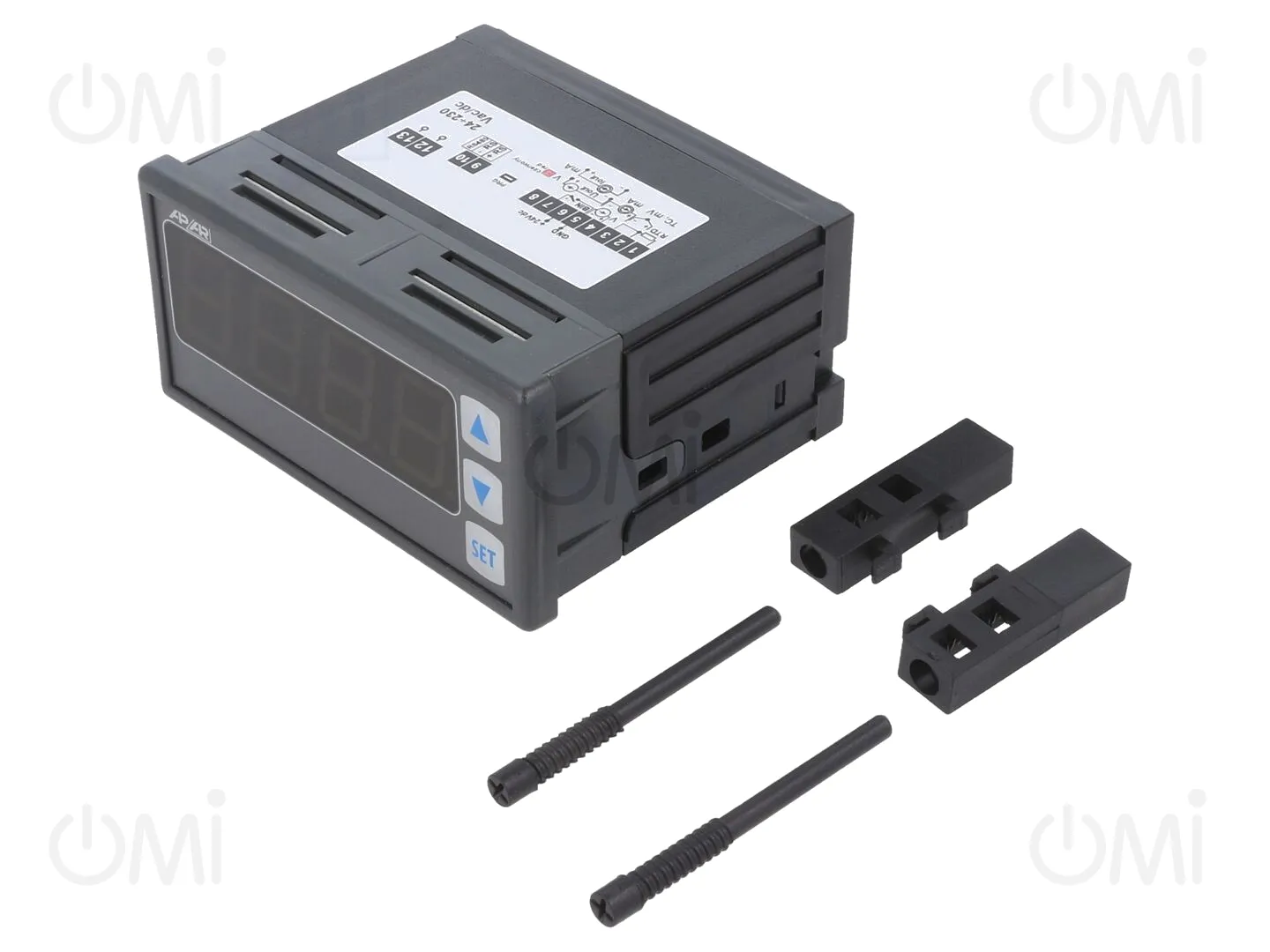

Module: meter; pressure,speed,temperature,humidity; 0÷10V,2÷10V

Manufacturer code: AR517/WU

OMI code: 203160

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

5 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 158.88
5+ 154

Price details
AR517/WU

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 158.88
5+ 154

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
APAR
Mounting
on panel
Operating temperature
0...50°C
IP rating
IP20 at terminal side, IP65 (from the front)
Manufacturer series
AR517
Supply voltage
20...350V DC, 15...265V AC
Body dimensions
96x48x79mm
Mounting hole diameter
92x46mm
Type of module
meter
Kind of display used
LED
Kind of output 1
0...10V, 2...10V
The programming method
keypad
Additional functions
temperature compensation of thermocouple cold ends, universal input (selected from keypad), signalling of detected errors with a messages on the display, signal digital filtering, sensors supply voltage 24V DC / 30mA
Controlled parameter
pressure, temperature, speed, humidity
Kind of temperature sensor
Pt100, thermocouple B, thermocouple J, thermocouple K, thermocouple R, thermocouple S, thermocouple T, Pt1000, Ni100, Pt500
Display parameters
4-digit
Controlled parameter range
-1999...9999
Kind of input 1
0...20mA, 4...20mA, universal, 0...60mV, 0...10V DC
Input 1 properties
analogue voltage, current analog, RTD, thermocouple
Display height 1
20mm
Gross weight 256.00 g
