KPSDCM8700PVCBINT KPS

Details

KPSDCM8700PVCBINT
  • KPSDCM8700PVCBINT

Manufacturer product page KPS

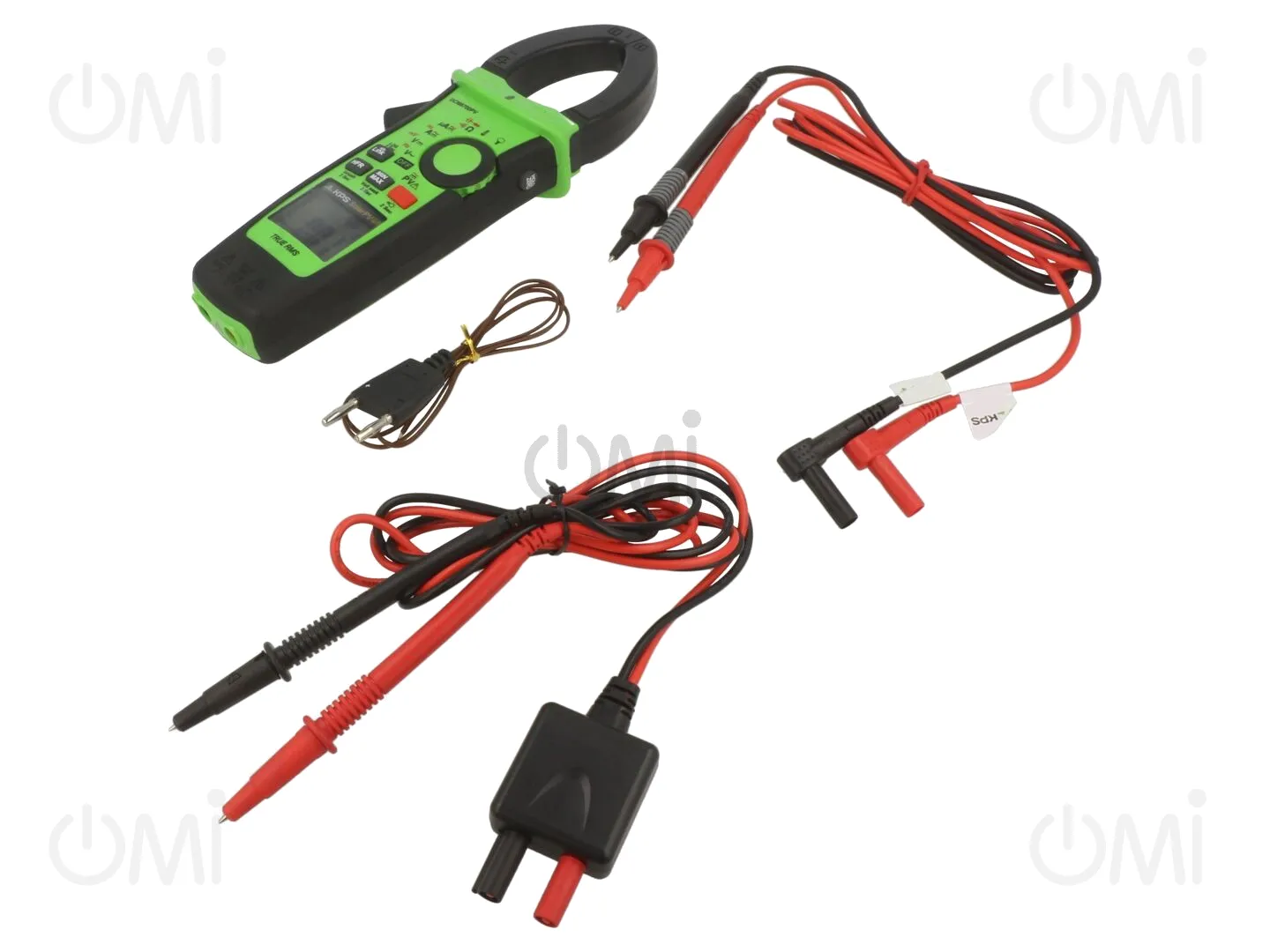

Meter: multifunction; digital,pincers type; Øcable: 42mm; LCD

Manufacturer code: KPSDCM8700PVCBINT

OMI code: 209540

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

5 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 368.56
3+ 351.79

Price details
KPSDCM8700PVCBINT

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 368.56
3+ 351.79

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
KPS
Conform to the norm
EN 61010, CAT III 1000V, CAT IV 600V
Application
photovoltaics
Dimensions
62x240x41mm
Interface
Bluetooth
Kind of display used
LCD
Illumination
yes
Power supply
battery LR6 AA 1,5V x2
Additional functions
torch, data logger
Standard equipment
test leads, user's manual, case, thermocouple
Measuring instrument features
MIN/MAX/AVG function, automatic power-off, low battery indicator, contactless voltage detector, HOLD function, REL function, autoranging
Display parameters
(6000)
Type of meter
multifunction
Temperature measuring range
-40...400°C
True effective value measurement
True RMS
Measurement
AC current, DC current, DC voltage, temperature, AC voltage, frequency, inrush current, capacitance, continuity
Battery/ rechargeable battery
battery LR6 AA 1,5V x2
Kind of meter
digital, pincers type
AC current measuring range
600A, 60A, 1.5kA
Frequency measuring range
1kHz, 10kHz, 100Hz
Test
circuit continuity, diodes
Resistance measuring range
6kΩ, 60kΩ, 600Ω, 600kΩ
DC current measuring range
600A, 60A, 1.5kA
Max. diameter of measured cable
42mm
DC voltage measuring range
1kV, 600V, 2kV
AC voltage measuring range
600V, 1.5kV
Capacitance measuring range
1mF, 100µF
Diode test
1.5V
Gross weight 1029.00 g
Documentation in English #1 Documentation in English #2 Documentation in English #3

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Meters and AC/DC Clamp Probes
