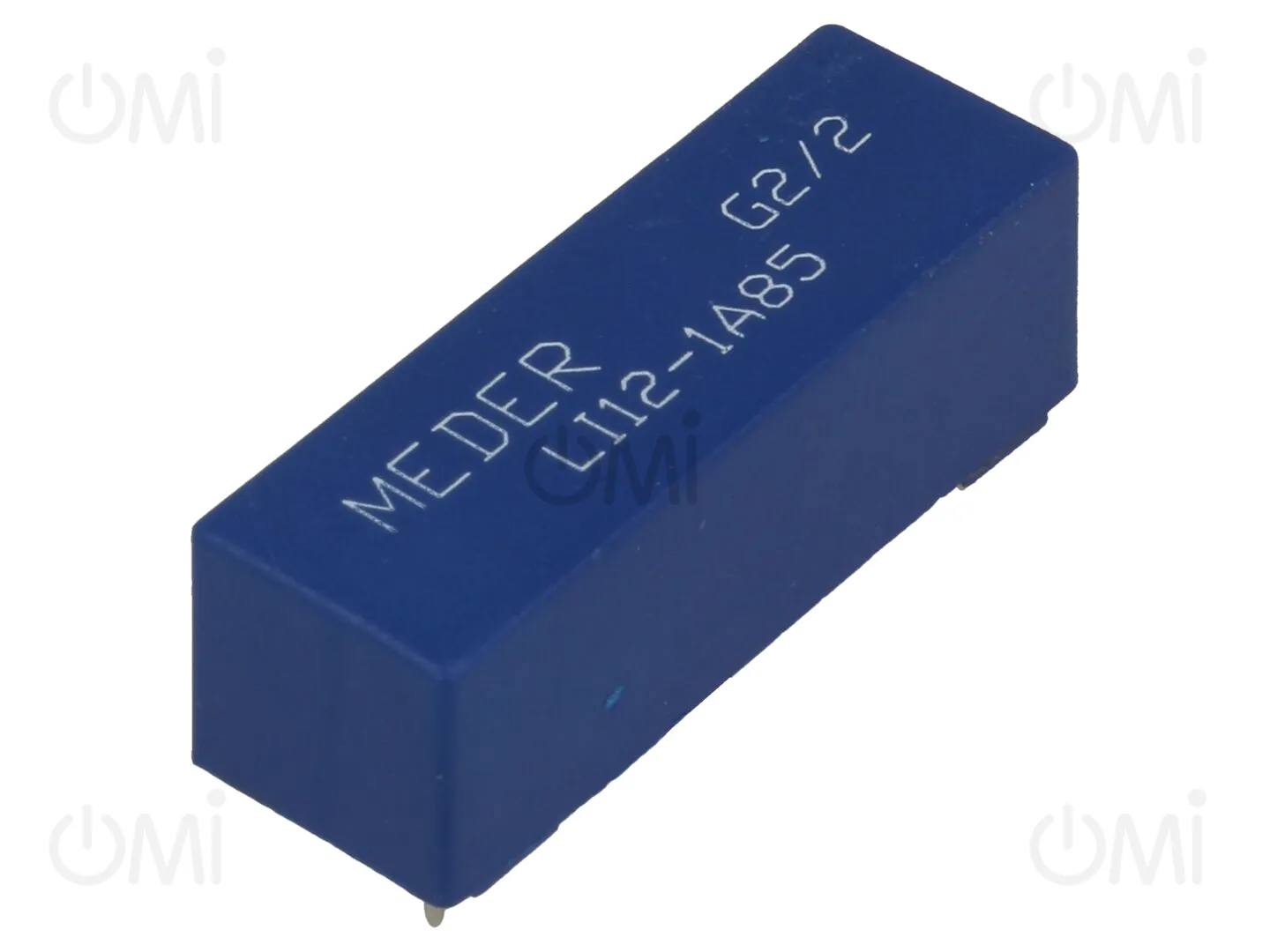

LI12-1A85 MEDER

Details

LI12-1A85
LI12-1A85
LI12-1A85
LI12-1A85
LI12-1A85
LI12-1A85
LI12-1A85
LI12-1A85
LI12-1A85
  • LI12-1A85
  • LI12-1A85
  • LI12-1A85
  • LI12-1A85
  • LI12-1A85
  • LI12-1A85
  • LI12-1A85
  • LI12-1A85
  • LI12-1A85

Manufacturer product page MEDER

Relay: reed switch; SPST-NO; Ucoil: 12VDC; 2.5A; max.1kVDC; 100W

Manufacturer code: LI12-1A85

OMI code: 210211

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

195 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 12.26
3+ 6.9
7+ 6.53

Price details
LI12-1A85

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 12.26
3+ 6.9
7+ 6.53

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
MEDER
Mounting
PCB
Operating temperature
-20...70°C
Contacts configuration
SPST-NO
Body dimensions
30x10x10.4mm
Switched voltage
max. 1kV DC, max. 1kV AC
Terminal pitch
5.08mm
Breakdown voltage
4.2kV
Type of relay
reed switch
Contact current max.
2.5A
Relay series
LI
Min. insulation resistance
1TΩ
Coil resistance
680Ω
Switching capacity
100W
Rated coil voltage
12V DC
Operate time
1ms
Contact resistance
0.15Ω
Release time
0.1ms
Coil power consumption
210mW
Gross weight 5.38 g
Documentation in English #1

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Reed Electromagnetic Relays
