P01196522F CHAUVIN ARNOUX

Details

P01196522F
  • P01196522F

Manufacturer product page CHAUVIN ARNOUX

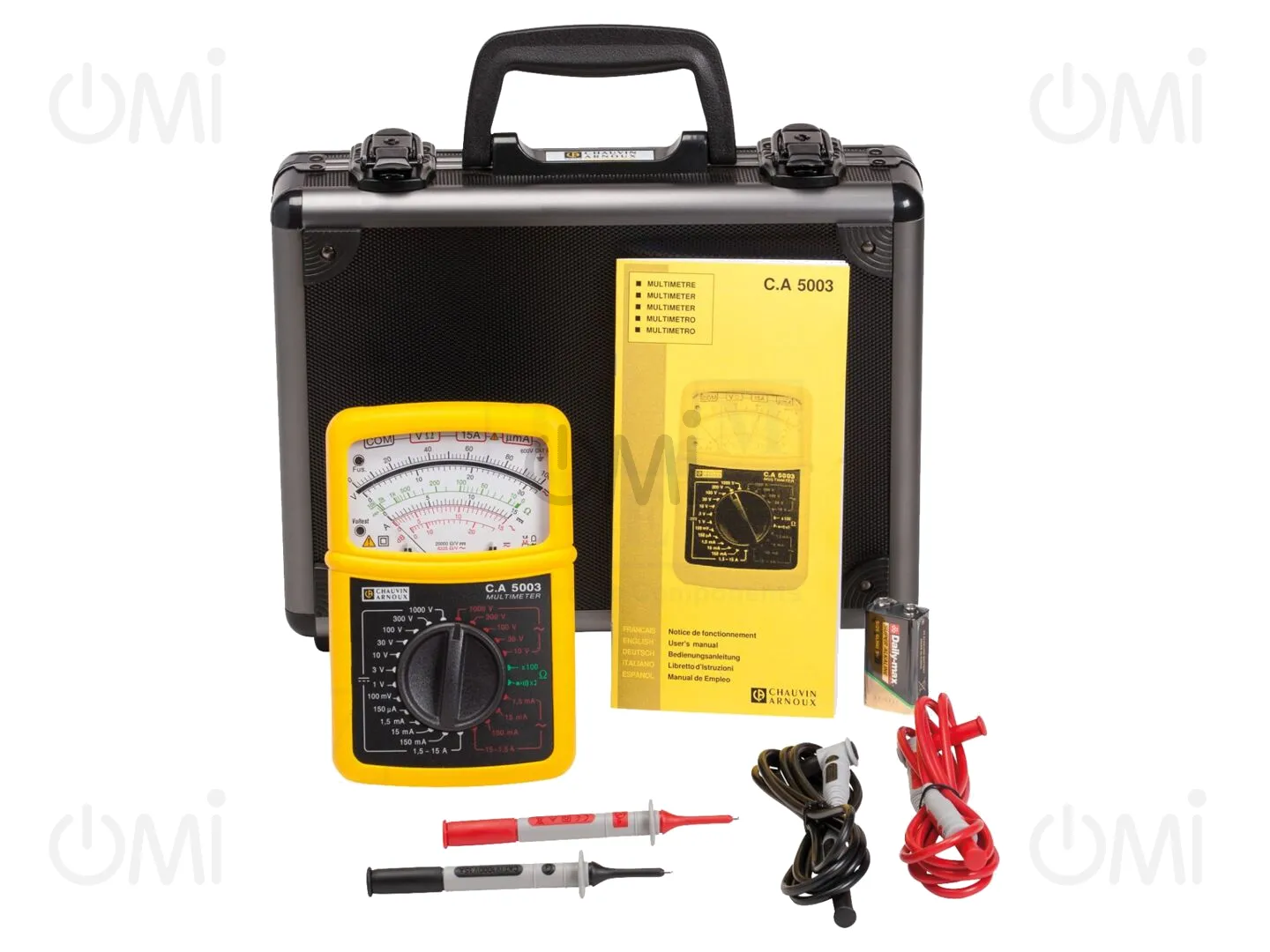

Analogue multimeter; VDC: 100mV,1V,3V,10V,30V,100V,300V,1kV

Manufacturer code: P01196522F

OMI code: 210456

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

1 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 427.49

Price details
P01196522F

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 427.49

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
CHAUVIN ARNOUX
IP rating
IP53
Conform to the norm
CAT III 600V, EN 61010
Body dimensions
56x105x160mm
Power supply
battery 6F22 9V x1
Standard equipment
hard case, test leads, test probes
Measuring instrument features
blown fuse indicator, automatic calibration
Type of meter
analogue multimeter
Measurement
AC current, DC current, DC voltage, resistance, AC voltage
Battery/ rechargeable battery
battery 6F22 9V x1
Input impedance for DC voltage measurement
20kΩ/V
AC current measuring range
15A, 1.5mA, 15mA, 150mA, 1.5A
Input impedance for AC voltage
6.32kΩ/V
Continuity test
acoustic indication, <50Ω
Producer guarantee (months)
36
Resistance measuring range
5...1MΩ
DC current measuring range
50µA, 150µA, 1.5mA, 15mA, 150mA, 1.5A, 15A
DC voltage measuring range
100mV, 1V, 3V, 10V, 30V, 100V, 300V, 1kV
AC voltage measuring range
1kV, 10V, 30V, 100V, 300V
AC current measuring accuracy
±2.5%
DC voltage measuring accuracy
±1.5%
DC current measuring accuracy
±2.5%
AC voltage measuring accuracy
±2.5%
Resistance measuring accuracy
±10%
Gross weight 1560.00 g
Documentation in English #1 Documentation in English #2 Documentation in English #3 Documentation in English #4 Documentation in English #5

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Analog Multimeters
