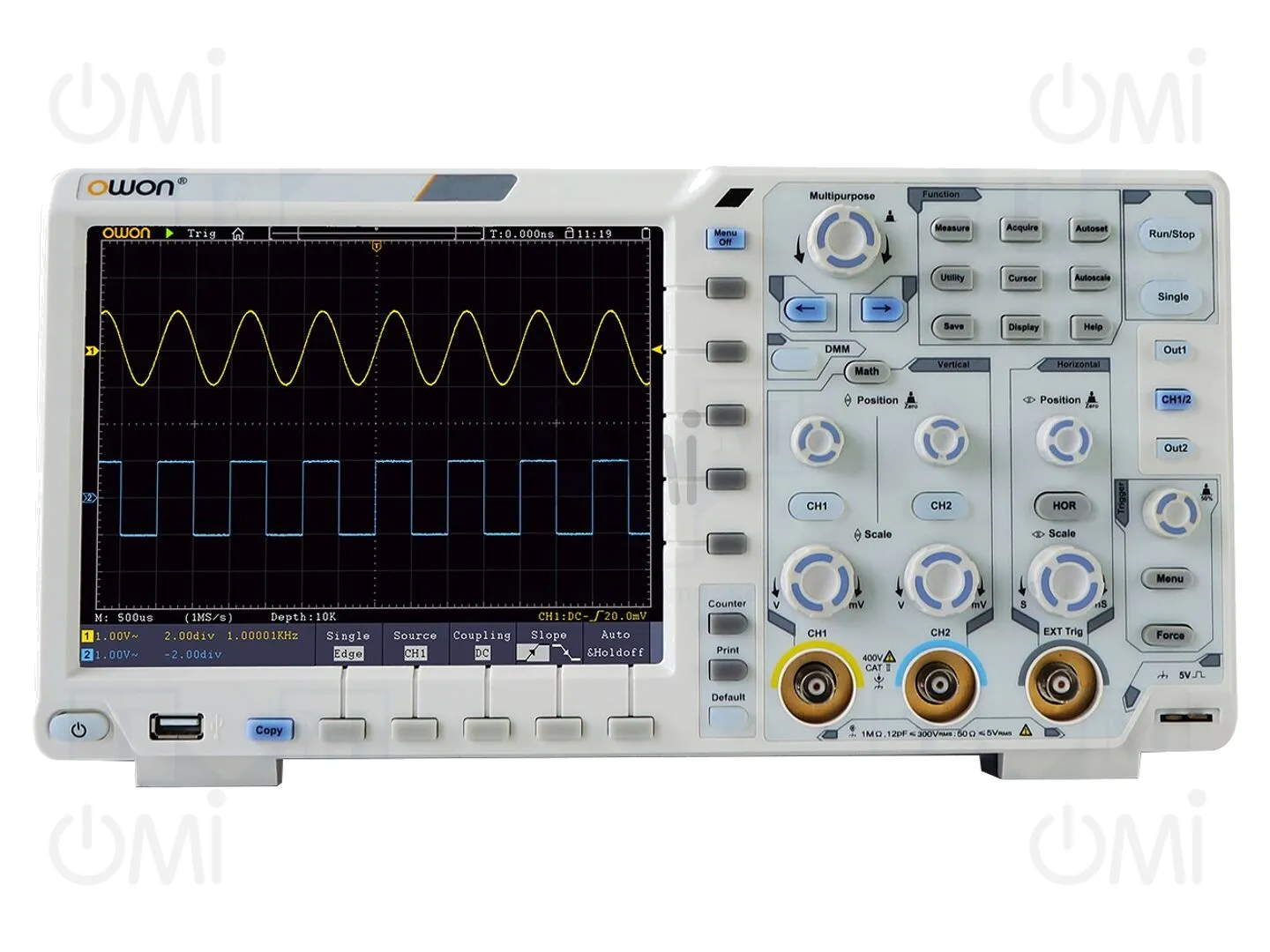

XDS3062A OWON

Details

XDS3062A
  • XDS3062A

Manufacturer product page OWON

Oscilloscope: digital; Ch: 2; 60MHz; 1Gsps; 40Mpts; LCD TFT 8"; XDS

Manufacturer code: XDS3062A

OMI code: 214174

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

0 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 482.07
3+ 458.5

Price details
XDS3062A

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 482.07
3+ 458.5

This product is currently out of stock. You can enable notification of new arrivals of this product. To do this, click on the "Notify" button and fill out the form.

Specification

Show similar products –
Show similar products –
Manufacturer
OWON
Manufacturer series
XDS
Supply voltage
100...240V AC
Related items
XDS-SOFTBAG
Body dimensions
340x177x90mm
Power consumption
15W
Connector
VGA + AV
Interface
USB, LAN, VGA
Number of channels
2
Kind of display used
LCD TFT 8"
Additional functions
frequency meter
Standard equipment
USB cable, user's manual, mains cable, oscilloscope probe (1 per channel), trimmer
Measuring instrument features
AUTOSET function for setting display parameters (time base, gain), measurements by means of cursors, mathematical functions: addition, subtraction, division, multiplication and FFT, protocols analyse: I2C, CAN, SPI, RS232/UART
Input impedance
1MΩ/15pF
Display resolution
800x600
Measurement memory
100
Plug variant
EU
Software
LabVIEW
Sampling
1Gsps
Band
60MHz
Trigger
rising-edge, falling-edge, video signal, runt, pulse, slope, window, SPI, CAN, I2C, Nth Edge, RS232, timeout, logic
Type of oscilloscope
digital
Input coupling
AC, DC, GND
Vertical resolution
12bit
Trigger modes
automatic, normal, single
Max. input voltage
300V
Rise time
≤5.85ns
Input sensitivity
1mV/div...10V/div
Time base
2n...1ks/div
Memory record length
40Mpts
Gross weight 3484.10 g
Documentation in English #1 Documentation in English #2 Documentation in English #3 Documentation in English #4

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Digital Oscilloscopes
