BK2567B B&K PRECISION

Details

BK2567B
  • BK2567B

Manufacturer product page B&K PRECISION

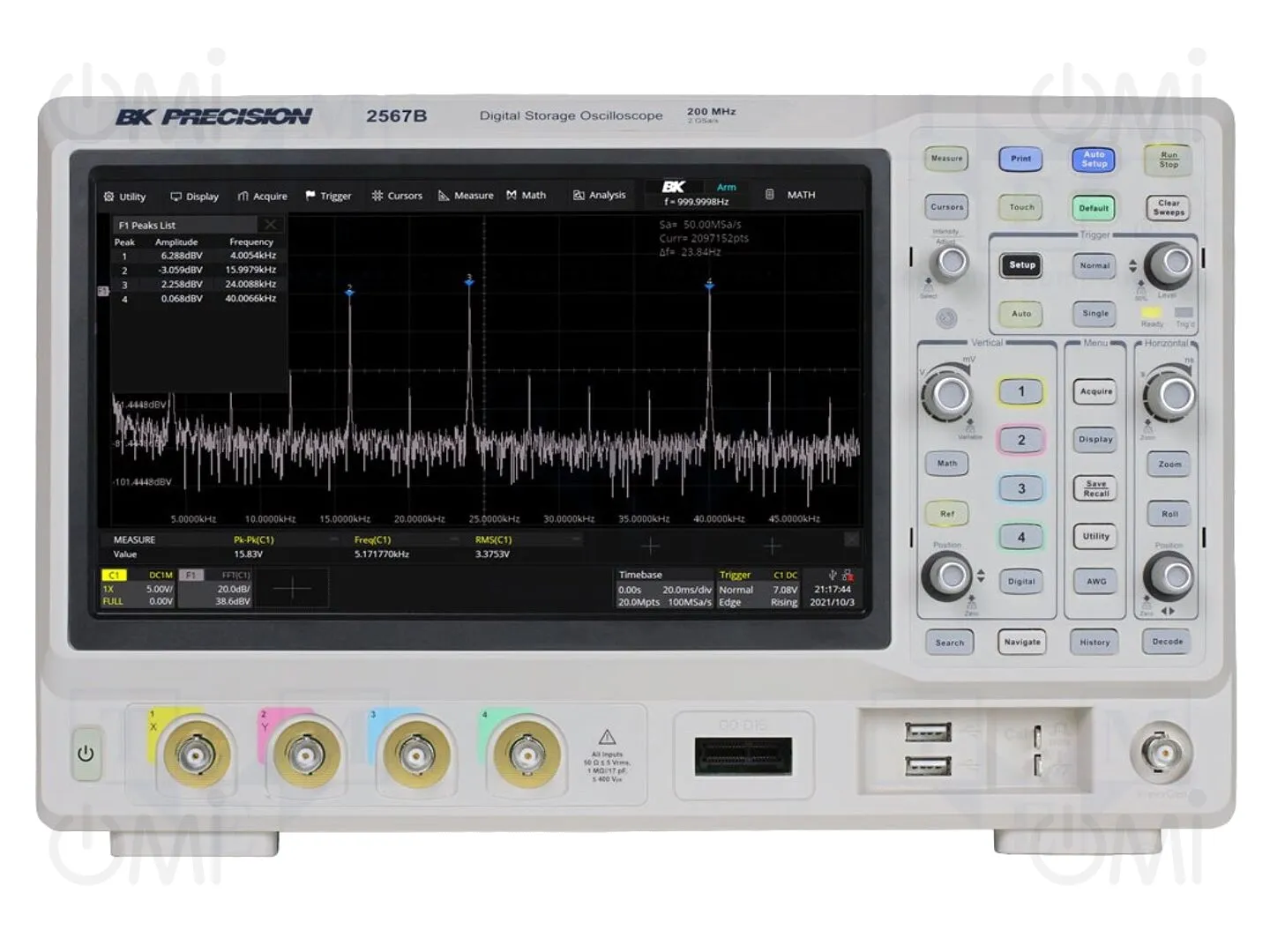

Oscilloscope: digital; Ch: 4; 200MHz; 2Gsps; 200Mpts/ch; 1.7ns

Manufacturer code: BK2567B

OMI code: 21535

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

0 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 3726.84

Price details
BK2567B

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 3726.84

This product is currently out of stock. You can enable notification of new arrivals of this product. To do this, click on the "Notify" button and fill out the form.

Specification

Show similar products –
Show similar products –
Manufacturer
B&K PRECISION
Operating temperature
0...40°C
Supply voltage
100...240V AC
Related items
RK2560B
Body dimensions
352x224x111mm
Interface
USB, LAN
Number of channels
4
Kind of display used
LCD TFT 10,1", LCD 3,5"
Additional functions
arbitrary waveform generator
Standard equipment
USB cable, manufacturer's calibration certificate, mains cable, oscilloscope probe (1 per channel)
Measuring instrument features
automatic measurement of many parameters, Pass/Fail function, Histogram - graphical visualisation of measurement results, advanced math functions, Bode Plot functions, I2C, SPI, UART, CAN, LIN Serial Decode, power analysis function
Input impedance
1MΩ/17pF
Display resolution
1024x600
Sampling
2Gsps
Band
200MHz
Trigger
rising-edge, falling-edge, video signal, dropout, interval, pattern, runt, pulse, serial, slope, window
Type of oscilloscope
digital
Input coupling
AC, DC, GND
Vertical resolution
10bit
Trigger modes
automatic, normal, single
Trigger coupling
AC, DC, highpass, noise
Max. input voltage
400V
Rise time
1.7ns
Input sensitivity
500µV/div...10V/div
Time base
1n...100s/div
Memory record length
200Mpts/ch
Supply voltage 400Hz
100...120V AC
Trigger source
CH1, CH2, external signal, line, CH3, CH4
Gross weight 5500.00 g
Documentation in English #1 Documentation in English #2

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Digital Oscilloscopes
