AX-356 AXIOMET

Details

AX-356
AX-356
AX-356
AX-356
AX-356
AX-356
AX-356
AX-356
AX-356
  • AX-356
  • AX-356
  • AX-356
  • AX-356
  • AX-356
  • AX-356
  • AX-356
  • AX-356
  • AX-356

Manufacturer product page AXIOMET

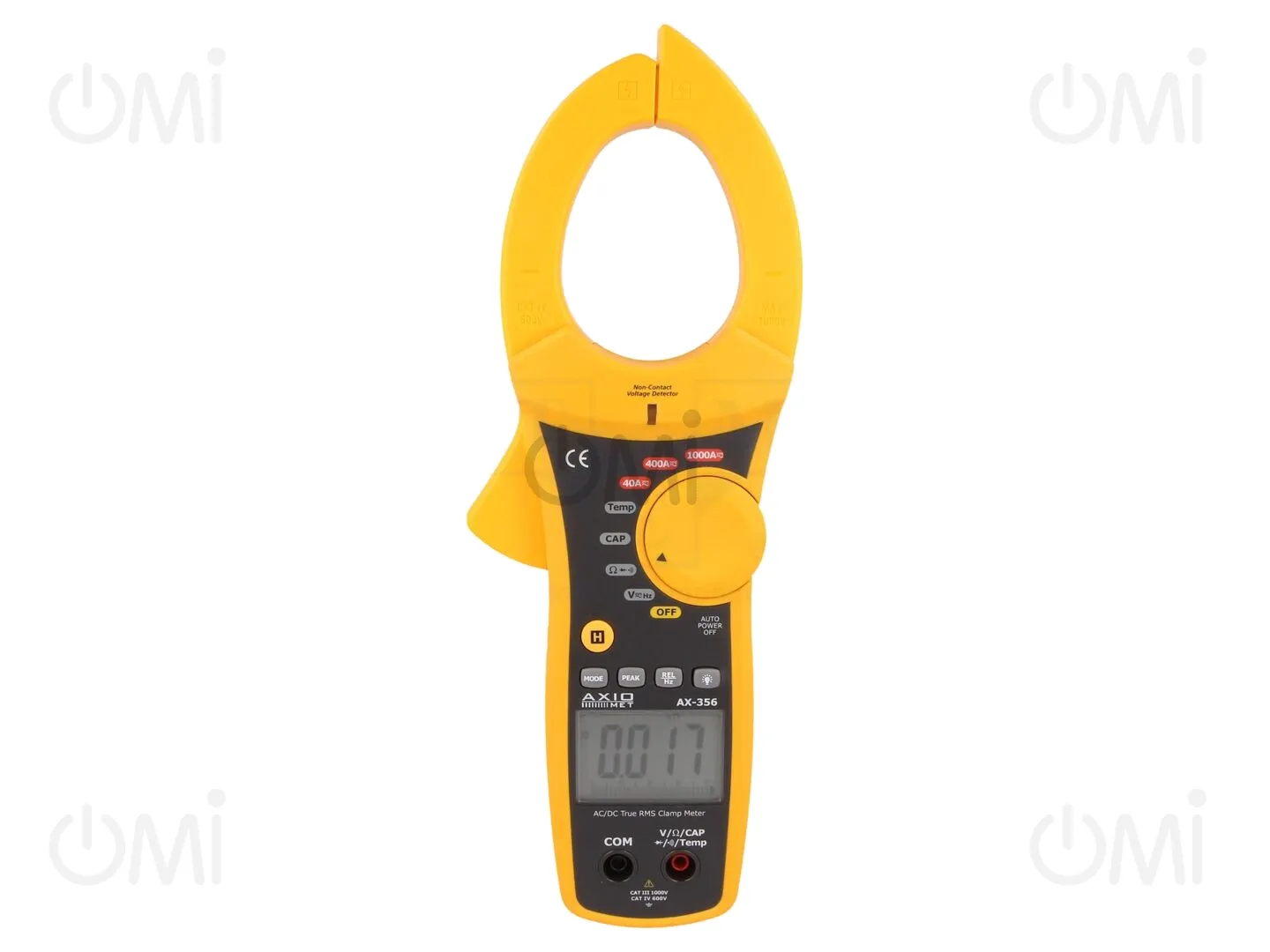

Meter: multifunction; digital,pincers type; Øcable: 52mm; LCD

Manufacturer code: AX-356

OMI code: 218547

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

20 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 40.41

Price details
AX-356

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 40.41

Quantity pcs (multiplicity: 1)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
AXIOMET
Conform to the norm
EN 61010, CAT III 1000V, CAT IV 600V
Dimensions
270x100x47mm
Kind of display used
LCD
Illumination
yes
Power supply
battery 6F22 9V x1
Standard equipment
test leads, case, drop-like K-type temperature probe
Measuring instrument features
automatic power-off, low battery indicator, auto and manual ranging, MIN/MAX function, HOLD function, display zeroing function in DCA measurements, PEAK HOLD function, overflow indicator
Temperature measurement accuracy
±(3% + 5˚C)
Display parameters
3,75 digit (4000)
Type of meter
multifunction
Temperature measuring range
-20...760°C
Protection
anti-overload OPP
Measuring unit
°C, °F
True effective value measurement
True RMS AC+DC
Measurement
AC current, DC current, DC voltage, resistance, temperature, AC voltage, frequency, capacitance
Battery/ rechargeable battery
battery 6F22 9V x1
Kind of meter
digital, pincers type
AC current measuring range
10mA...40A, 400A, 1kA
Weight without batteries
449g
Continuity test
acoustic indication, <40Ω
Frequency measuring range
1...4kHz
Bargraph
41 segm.
Sampling
2x/s
Resistance measuring range
100mΩ...400Ω, 40kΩ, 4MΩ, 4kΩ, 400kΩ, 40MΩ
DC current measuring range
1kA, 400A, 10mA...40A
Max. diameter of measured cable
52mm
DC voltage measuring range
400V, 600V, 0.1...400mV, 4V, 40V
AC voltage measuring range
600V, 400V, 0.1...400mV, 4V, 40V
AC current measuring accuracy
±(2.8% + 8 digit)
DC voltage measuring accuracy
±(1.5% + 2 digit)
Capacitance measuring range
40µF, 400µF, 4mF, 40nF, 400nF, 4µF, 1pF...4nF, 40mF
DC current measuring accuracy
±(2.8% + 8 digit)
Diode test
0.3mA @3V
AC voltage measuring accuracy
±(1.5% + 5 digit)
Resistance measuring accuracy
±(1.5%+2 digit)
Frequency measuring accuracy
±(1.5%+2 digit)
Capacitance measuring accuracy
±(3%+ 5 digit)
Gross weight 827.60 g
Documentation in English #1 Documentation in English #2 Documentation in English #3 Documentation in English #4 Documentation in English #5

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Meters and AC/DC Clamp Probes
