XCKJ110541H29 TELEMECANIQUE SENSORS

Details

XCKJ110541H29
  • XCKJ110541H29

Manufacturer product page TELEMECANIQUE SENSORS

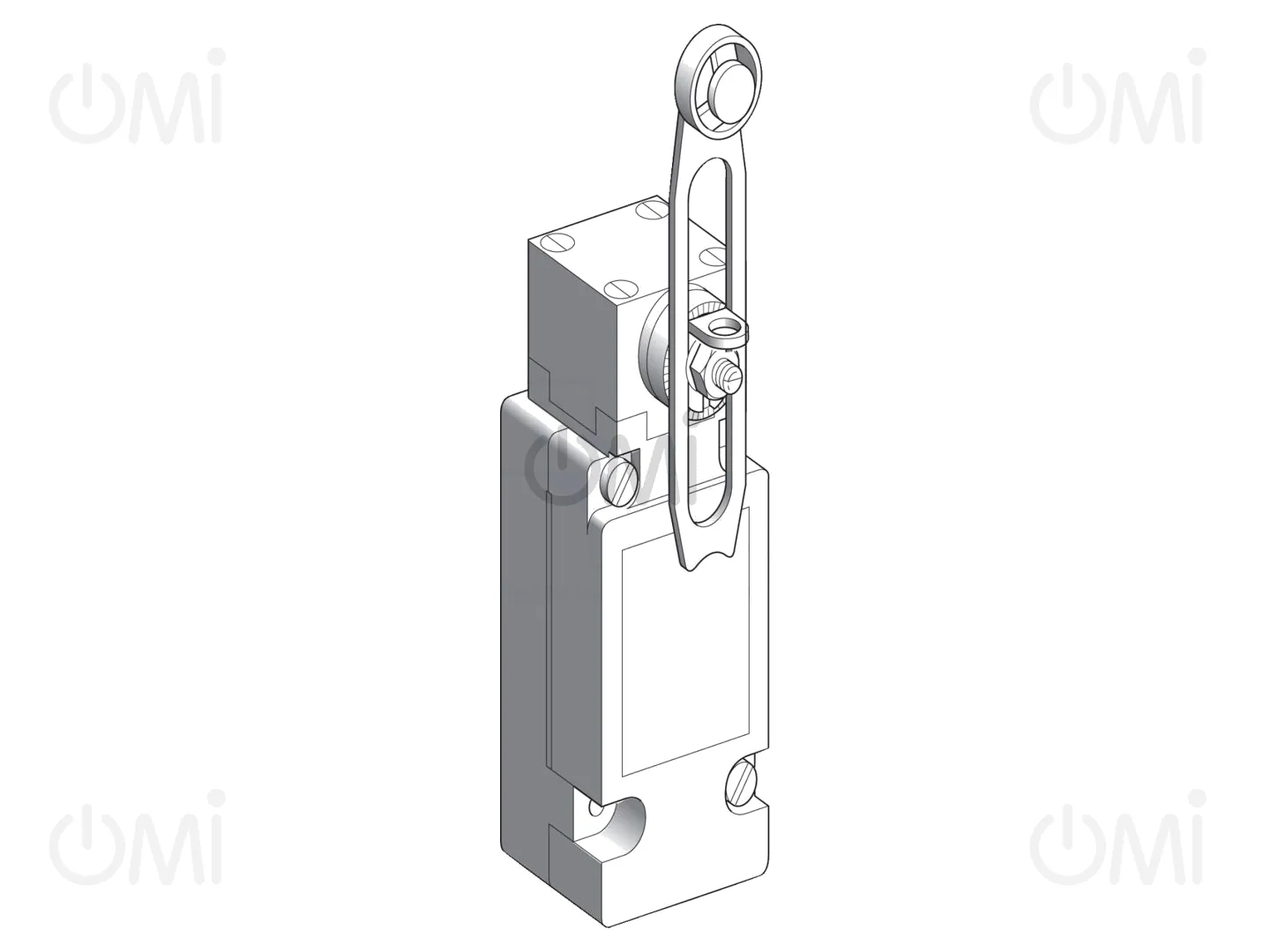

Limit switch; NO + NC; 10A; max.250VAC; max.250VDC; M20; IP66

Manufacturer code: XCKJ110541H29

OMI code: 221329

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

0 pcs

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 116.99
10+ 114.58

Price details
XCKJ110541H29

Qty.
[pcs] 		Price
[EUR/pcs]
1+ 116.99
10+ 114.58

This product is currently out of stock. You can enable notification of new arrivals of this product. To do this, click on the "Notify" button and fill out the form.

Specification

Show similar products –
Show similar products –
Manufacturer
TELEMECANIQUE SENSORS
Operating temperature
-25...70°C
IP rating
IP66
Body dimensions
40x77x44mm
Body material
metal
Connection
M20
Number of mounting holes
4
Switched voltage
max. 250V AC, max. 250V DC
AC contacts rating @R
3A / 240V AC
Type of sensor
limit switch
DC contacts rating @R
0.27A / 250V DC
Mounting holes pitch
30/60mm
Contact current max.
10A
Switches features
snap action contacts
Output configuration
NO + NC
Kind of actuator
adjustable lever R 40-85mm, plastic roller Ø19mm
Gross weight 522.00 g
