15949 HELUKABEL

Details

15949
  • 15949

Manufacturer product page HELUKABEL

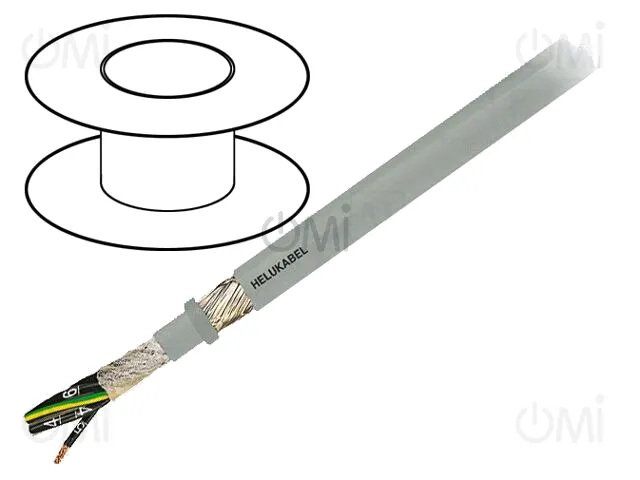

Wire: control cable; JZ-HF-CY; 7G0.75mm2; grey; stranded; Cu; PVC

Manufacturer code: 15949

OMI code: 222222

Ask for special price (large quantity)
Shipping costs

Adding to order

In stock:

2 m

Qty.
[m] 		Price
[EUR/m]
1+ 6.36
3+ 6.31
6+ 5.97
25+ 5.79

Price details
15949

Qty.
[m] 		Price
[EUR/m]
1+ 6.36
3+ 6.31
6+ 5.97
25+ 5.79

Quantity m (multiplicity: 5)

Total: EUR

Specification

Show similar products –
Show similar products –
Manufacturer
HELUKABEL
Operating temperature
-40...80°C
Wire insulation material
PVC
Type of wire
control cable
Number of cores
7
Resistance to
flame, most of chemical compounds, most of oils
Insulation colour
grey
Cable application
industrial applications, power chain, robotics
Kind of material
no flame propagation
Kind of wire
JZ-HF-CY
Kind of core
Cu
Core section
0.75mm<sup>2</sup>
Cable external diameter
10.8mm
Shield structure
shielded, braid made of copper wires
Rated voltage
500V, 300V
Core marking
black, numbered + ground wire
Core structure
stranded
Earth core
yellow-green
CPR standard
no classification
Cable structure
7G0.75mm<sup>2</sup>
Gross weight 177.00 g
Documentation in English #1 Documentation in English #2

Documentation is not automatically updated, but we do our best to provide the most up-to-date versions of documents.

See the rest of the products in this category: Cables for Power Chains - Shielded

* All prices are net prices (excluding VAT) and do not include transportation costs, which will be included in the order amount. Transportation costs are available in the tab "Method and cost of delivery"

Last viewed items

CF211.033

CF211.033

Manufacturer: IGUS

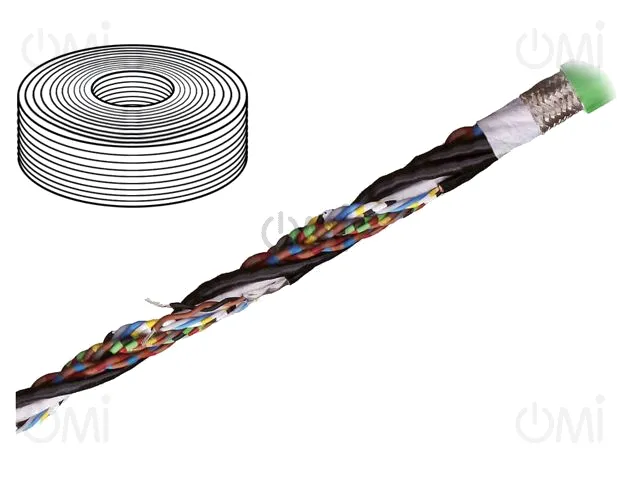

Wire: test lead cable; chainflex® CF211,hybrid; green; stranded
